PDU, Switched, 2.9kW, 24 5-15/20R, L5-30P, 0U

SKU
Brand Tripp Lite
Categories
Description PDU,Switched,2.9kW,24 5-15/20R,L5-30P,0U

Web Price

$1,446.24 / each

Product Details

Communications Cable RJ45-to-DB9 configuration/console Access cable

Cord Length 10 ft.

Country of Origin (subject to change) Taiwan, Province of China

Customized Load Management Receptacles Each outlet is individually controllable via remote interface

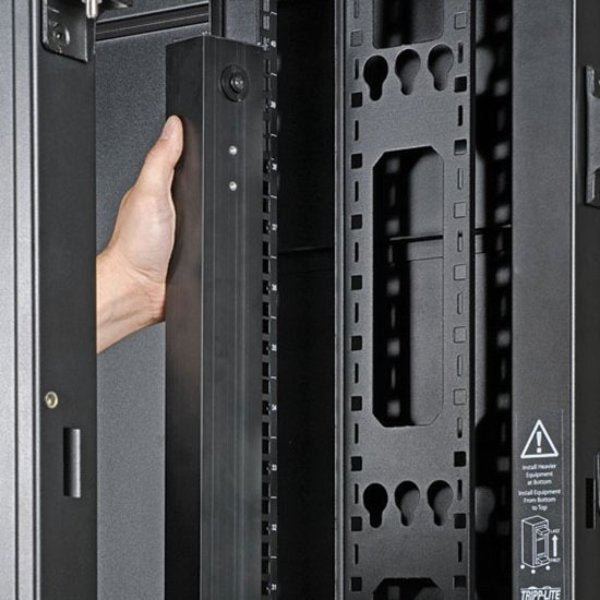

Form Factors Supported 0U vertical rackmount; includes rackmount brackets. Supports toolless mounting in button-mount compatible racks

Frequency 50/60 Hz

Frequency Compatibility 50 / 60 Hz

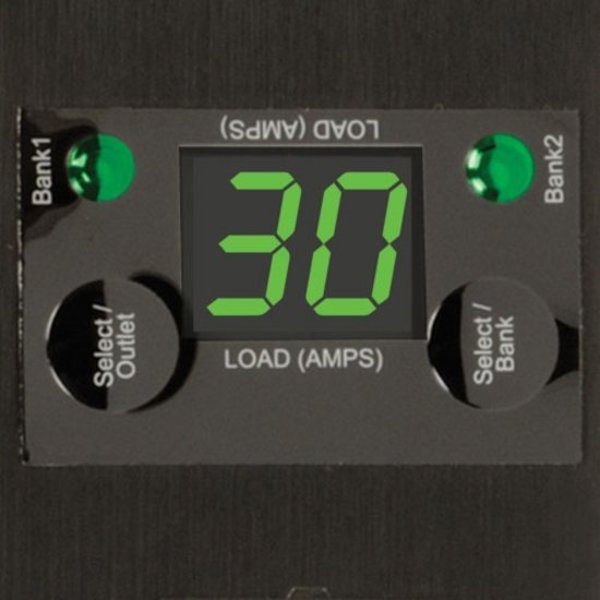

Front Panel LCD Display Digital display reports load level in amps for LOAD BANK 1 (Outlets 1-12), LOAD BANK 2 (Outlets 13-24), LOAD BANKS 1&2 COMBINED (Outlets 1-24) and each individual output receptacle; Digital display can also be used to scroll the configured IP address

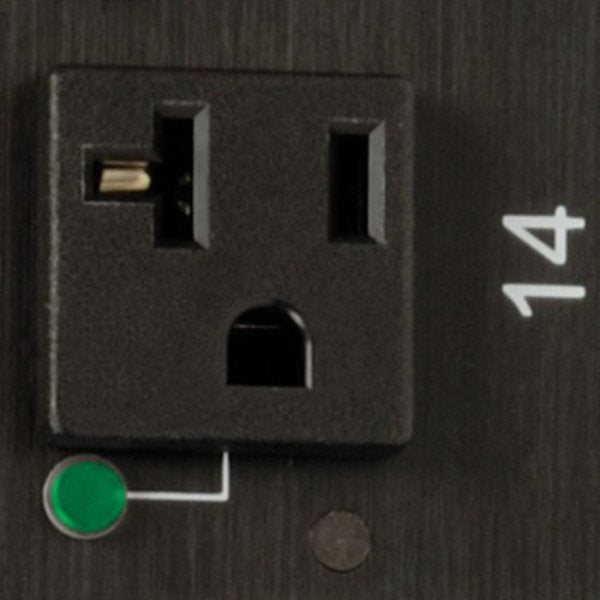

Front Panel LEDs BANK 1 and BANK 2 LEDs verify which load bank the digital current display is reporting (Bank 1, Bank 2 or Banks 1&2 Combined); BANK 1 or BANK 2 LED will flash when the digital display is reporting output current for one of the outlets in that load bank; 24 additional LEDs, one near each output receptacle, will light continuously to verify power on/off status and flash to indicate that the digital display is reporting output current for just that individual receptacle

Input Cord Length (ft.) 10

Input Phase Single-Phase

Input Voltage 120 V AC

Input Voltage Range 100 V AC - 127 V AC

Max. Amps 30A

Maximum Input Amps 30

Mount Type Rack-mountable

Mounting Orientation Vertical

Mounting Style Vertical Rackmount/0U

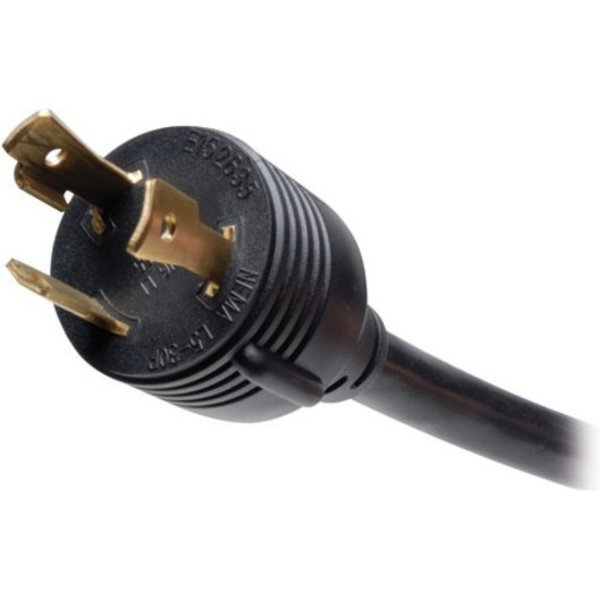

NEMA Plug Configuration NEMA L5-30P

NEMA Receptacle Configuration NEMA 5-15/20R

Network Compatibility 10 Mbps; 100 Mbps (Fast Ethernet)

Number of Outlets 24

Operating Elevation (ft.) 0-10,000

Output Capacity Details 3.05kW (127V), 2.88kW (120V), 2.4kW (100V) / 30A total capacity (Agency de-rated 24A); 20A max per breakered load bank; 16A max per outlet

Output Nominal Voltage 100-127V nominal, single phase

Output Receptacles (24) 5-15/20R

Output Voltage 120 V AC

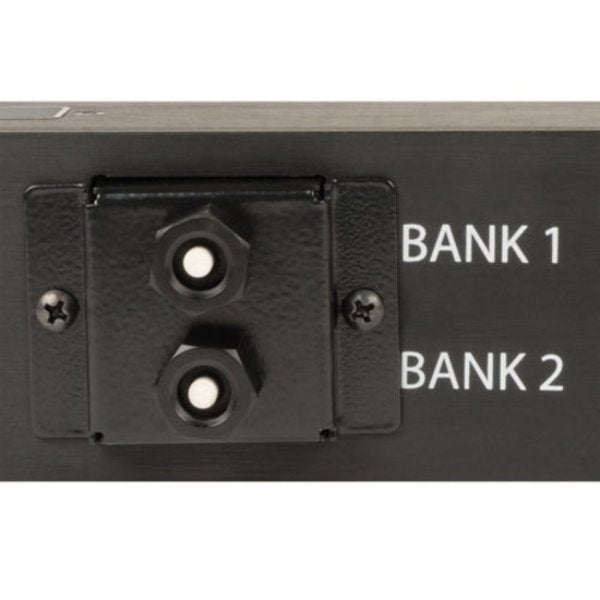

Overload Protection Two 20A breakers protect 12 outlets each

Package Contents Rackmount PDU, Rackmount Brackets

Package Quantity 1

PDU Form Factor Vertical (0U)

PDU Plug Type NEMA L5-30P

PDU Type Switched

Plug/Connector Type NEMA L5-30P

Product Name Rackmount PDU

Product Series Switched

Product Type PDU

Receptacle Detail 24 x NEMA 5-15/20R

Recommended Electrical Service 30A 120V

Relative Humidity 5-95% non condensing

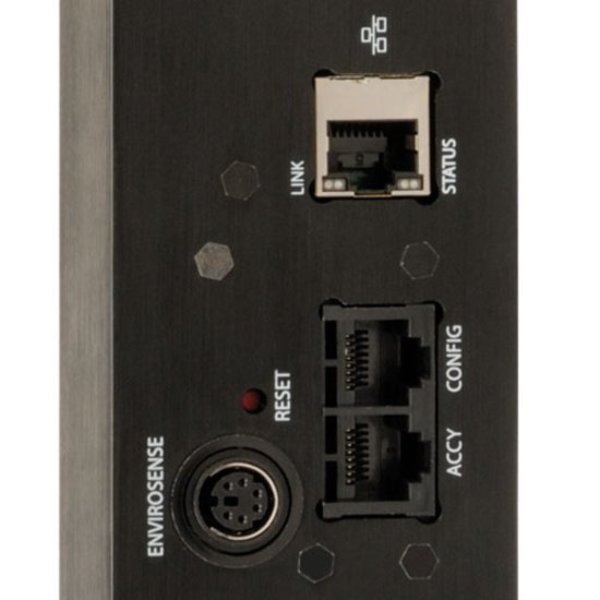

SNMP Compatibility Built-in network interface provides remote monitoring via PowerAlert Console Launcher, Telnet, SSH, and SNMP management systems. Remote management enables outlets to be turned on and off individually

Storage Temperature Range 5 to 122F (-15 to 50C)

Switches SELECT OUTLET and SELECT BANK switches advance the LCD screen and associated LED to display power consumption for individual output receptacles and output load banks; Press and hold the SELECT BANK button for 4 seconds to rotate the digital display 90 degrees for overhead power input; Press and hold the SELECT OUTLET button for 4 seconds to scroll the configured IP address

Unit Dimensions (hwd / in.) 70.000 x 2.200 x 2.050

Voltage 120V
