Home / PDU, Switched, 3.2-3.8kW, 7 C13, 1 C19, 0U

PDU, Switched, 3.2-3.8kW, 7 C13, 1 C19, 0U

SKU
Brand Tripp Lite
Categories
Description PDU,Switched,3.2-3.8kW,7 C13,1 C19,0U

Web Price

$832.49 / each

Qty

Product Details

Communications Cable RJ45-to-DB9 configuration/console Access cable

Cord Length 3.05m

Country of Origin (subject to change) China

Customized Load Management Receptacles Each outlet is individually controllable via remote interface

Depth 1.9

Form Factors Supported 0U vertical rackmount; includes rackmount brackets. Supports toolless mounting in button-mount compatible racks

Frequency 50/60 Hz

Frequency Compatibility 50 / 60 Hz

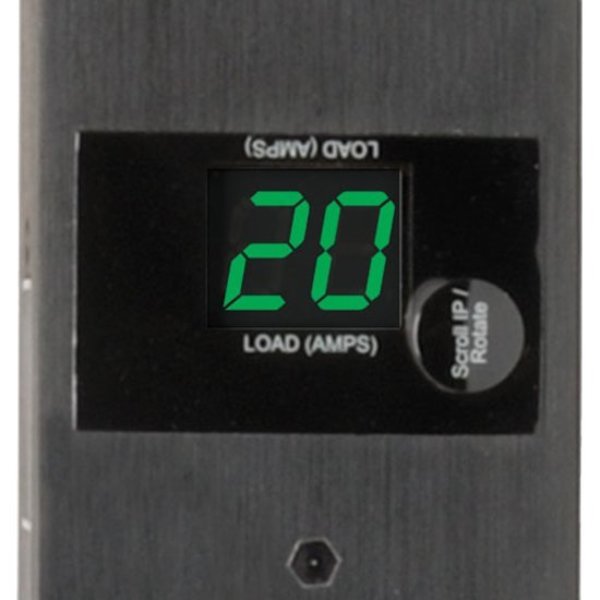

Front Panel LCD Display Digital meter reports PDU output current in amps

Front Panel LEDs 24 power availability LEDs confirm power off/on status for each built-in outlet

Height 38.9

Input Connection Type C20 inlet accepts included L6-20P input cable

Input Cord Length (ft.) 10

Input Phase Single-Phase

Input Voltage 230 V AC

Input Voltage Range 200 V AC - 240 V AC

Max. Amps 20A

Maximum Input Amps 20

Mount Type Rack-mountable

Mounting Orientation Vertical

Mounting Style Vertical Rackmount/0U

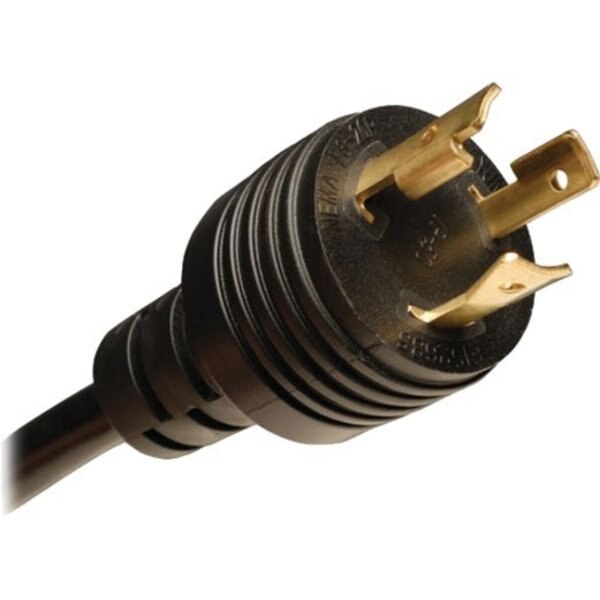

NEMA Plug Configuration NEMA L6-20P; IEC-320 C20

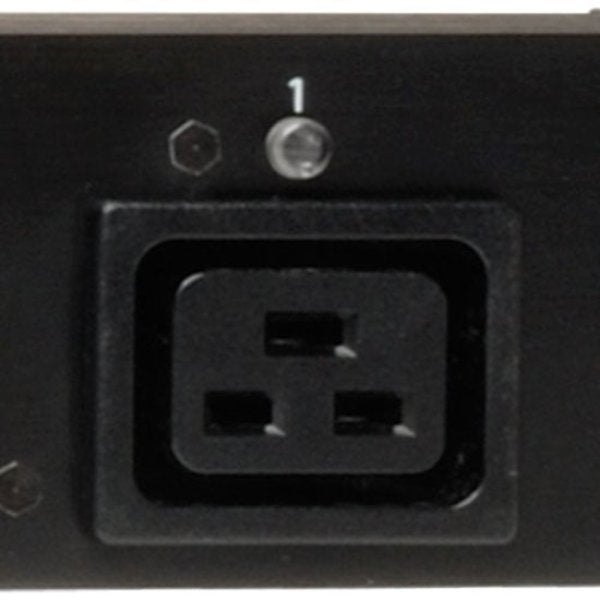

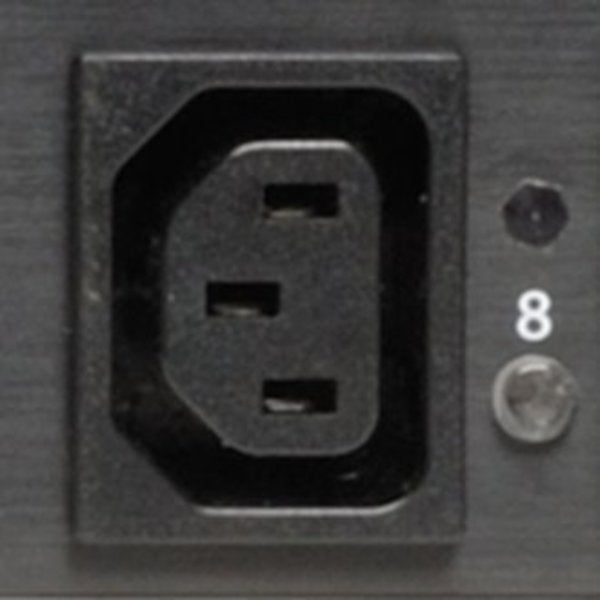

NEMA Receptacle Configuration (7) C13; (1) C19

Network Compatibility 10 Mbps; 100 Mbps (Fast Ethernet)

Number of Outlets 8

Operating Elevation (ft.) 0-10,000

Operating Temperature Range 0C ~ 40C (32F ~ 104F)

Output Capacity Details 3.84kW (240V), 3.68kW (230V), 3.52kW (220V), 3.33kW (208V), 3.2kW (200V) / 16A total capacity; 16A max per C19 outlet; 12A (10A CE) max per C13 outlet

Output Nominal Voltage 200; 208; 220; 230; 240

Output Receptacles (7) C13; (1) C19

Output Voltage 200 V AC, 208 V AC, 230 V AC, 240 V AC

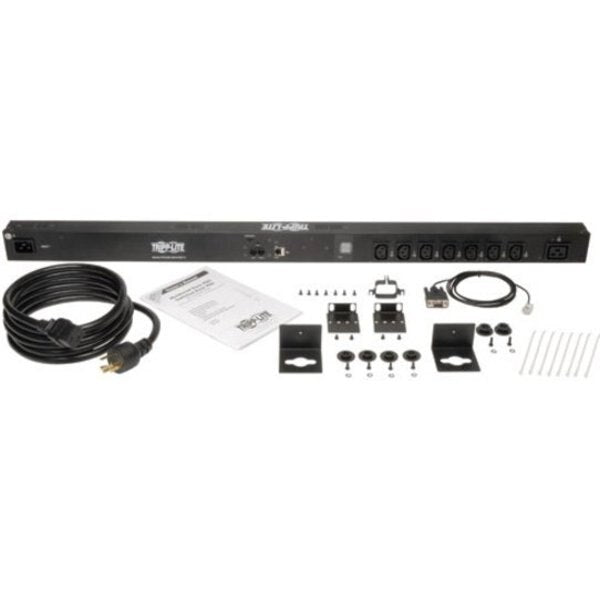

Package Contents Switched PDUMV20HVNET2 8-Outlets PDU, L6-20P To C19 Detachable Input Cord, Rackmount Brackets, Mounting Accessory

Package Includes Rackmount PDU;L6-20P to C19 detachable input cord;Rackmount brackets;PDUMVROTATEBRKT mounting accessory

Package Quantity 1

PDU Form Factor Vertical (0U)

PDU Plug Type NEMA L6-20P; IEC-320 C20

PDU Type Switched

Plug/Connector Type IEC 60320 C20, NEMA L6-20P

Product Name Switched PDUMV20HVNET2 8-Outlets PDU

Product Series Switched

Product Type PDU

Receptacle Detail 1 x IEC 60320 C19, 7 x IEC 60320 C13

Recommended Electrical Service 20A 208/240V; 16A 230V

Relative Humidity 0-95% non-condensing

SNMP Compatibility Pre-installed SNMPWEBCARD provides remote monitoring via web, Telnet, and SNMP management systems. Remote management enables outlets to be turned on and off individually

Unit Dimensions (hwd / in.) 38.900 x 2.190 x 1.930

Voltage 208/240V

Width 2.2
