PDU, Switched, 5/5.8kW, 20 C13, 4 C19, 0U

SKU
Brand Tripp Lite
Categories
Description PDU,Switched,5/5.8kW,20 C13,4 C19,0U

Web Price

$1,061.24 / each

Product Details

Communications Cable RJ45-to-DB9 configuration/console Access cable

Cord Length 3.05m

Country of Origin (subject to change) Taiwan, Province of China

Customized Load Management Receptacles Each outlet is individually controllable via remote interface

Depth 2.7

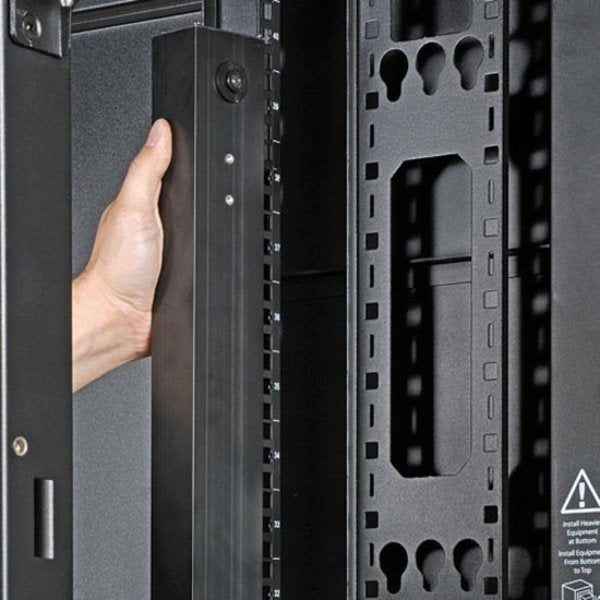

Form Factors Supported 0U vertical rackmount. Includes mounting brackets. Supports toolless mounting in button-mount compatible racks

Frequency 50/60 Hz

Frequency Compatibility 50 / 60 Hz

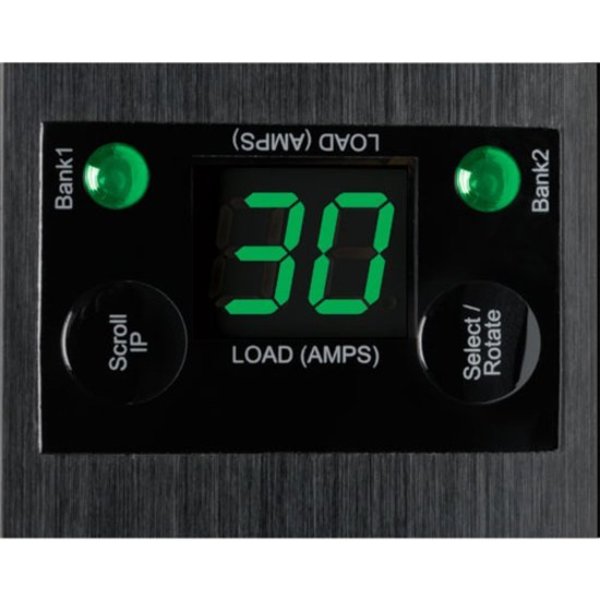

Front Panel LCD Display Digital display reports output amps in 3 separately metered loading segments (BANK 1: Outlets #1-12; BANK 2: Outlets #13-24; BANK 3: All outlets combined)

Front Panel LEDs 24 power availability LEDs confirm power off/on status for each built-in outlet

Height 70

Input Cord Length (ft.) 10

Input Phase Single-Phase

Input Voltage 230 V AC

Input Voltage Range 208 V AC - 240 V AC

Max. Amps 30A

Maximum Input Amps 30

Mount Type Rack-mountable

Mounting Orientation Vertical

Mounting Style Vertical Rackmount/0U

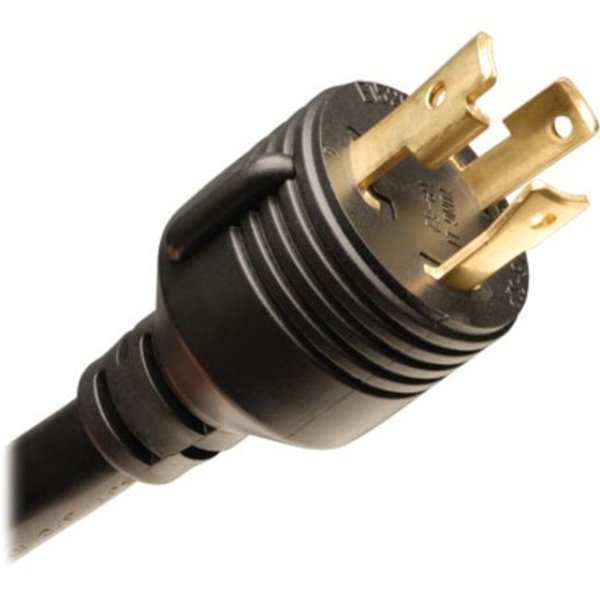

NEMA Plug Configuration NEMA L6-30P

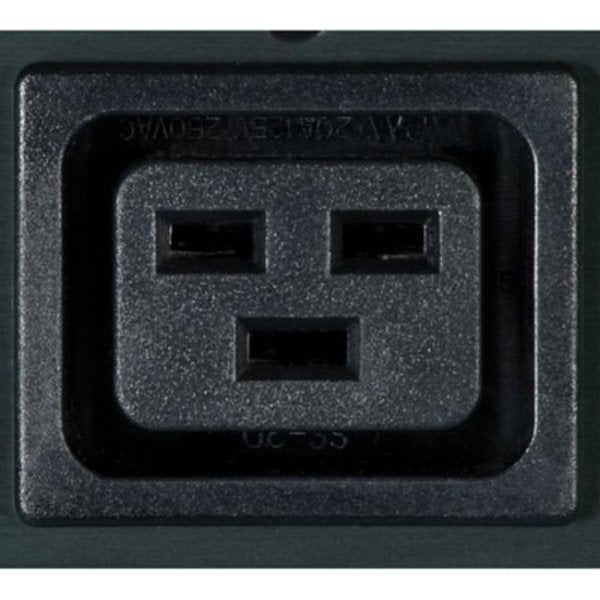

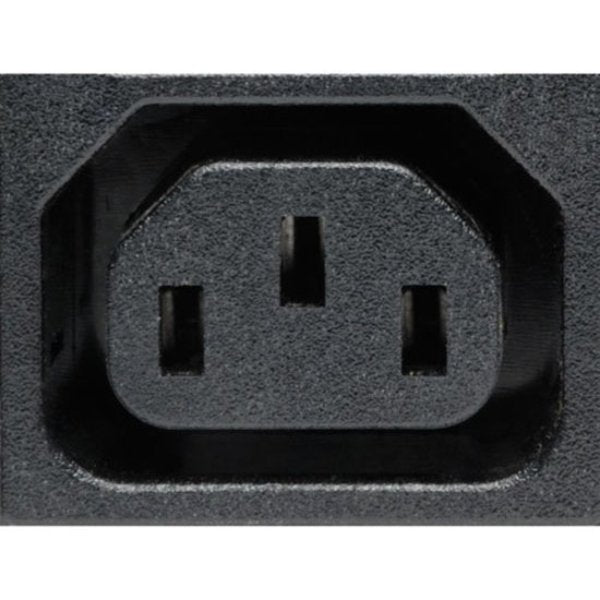

NEMA Receptacle Configuration (20) C13; (4) C19

Network Compatibility 10 Mbps; 100 Mbps (Fast Ethernet)

Number of Outlets 24

Operating Elevation (ft.) 0-10,000

Output Capacity Details 5.8kW (240V), 5kW (208V), 4.8kW (200V) total capacity / 30A max (Agency de-rated to 24A), 20A max per breakered outlet bank; 16A max per C19 outlet; 12A max per C13 outlet

Output Nominal Voltage 200; 208; 240

Output Receptacles (20) C13; (4) C19

Output Voltage 240 V AC, 208 V AC

Overload Protection Two 20A breakers protect 12 outlets each

Package Contents PDUMV30HVNET PDU Switched 208V - 240V 30A 24 Outlet, Rackmount PDU, Rack mounting brackets, Owner's manual

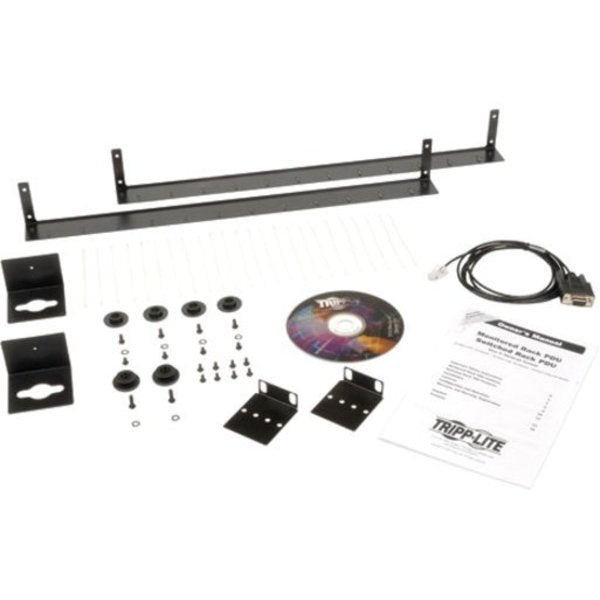

Package Includes Rackmount PDU;Rack mounting brackets;Owner's manual;PDUMVROTATEBRKT mounting accessory

Package Quantity 1

PDU Form Factor Vertical (0U)

PDU Plug Type NEMA L6-30P

PDU Type Switched

Plug/Connector Type NEMA L6-30P

Product Name PDUMV30HVNET PDU Switched 208V - 240V 30A 24 Outlet

Product Type PDU

Protection Type Overload Protection

Receptacle Detail 4 x IEC 60320 C19, 20 x IEC 60320 C13

Recommended Electrical Service 30A 208/240V

Relative Humidity 0-95% non-condensing

SNMP Compatibility Yes, pre-installed SNMPWEBCARD provides remote monitoring via web, telnet, and SNMP management systems. Remote management gives user ability to turn connected loads on or off individually

Switches Pushbutton scroll button enables local power consumption display of each load bank, display rotate and display IP address functions

Unit Dimensions (hwd / in.) 70.000 x 2.190 x 2.650

Voltage 208/240V

Width 2.2
