PDU, Switched, 5/5.8kW, 20 C13, 4 C19, 0U

SKU
Brand Tripp Lite
Categories
Description PDU,Switched,5/5.8kW,20 C13,4 C19,0U
graingerSKU: , mscSKU: , zoro_no: G5177859, mongo_id: 65bbe8bc22d7a989a99127a8

Web Price

$1,724.99 / each

Product Details

Communications Cable RJ45-to-DB9 configuration/console Access cable

Cord Length 10 ft.

Country of Origin (subject to change) Taiwan, Province of China

Customized Load Management Receptacles Each outlet is individually controllable via remote interface

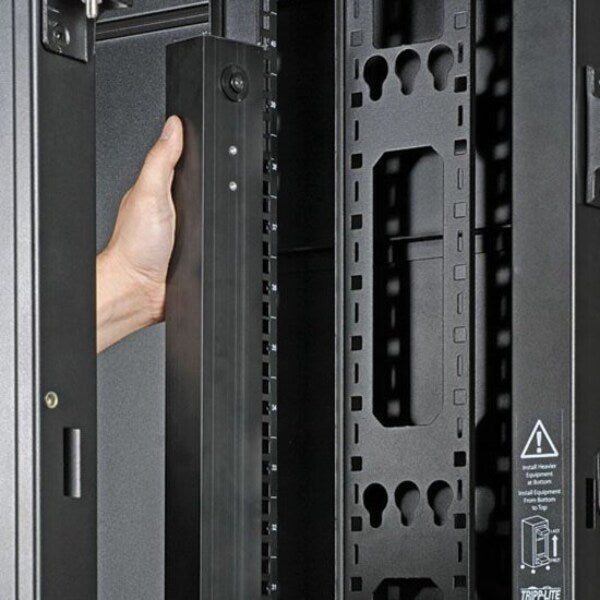

Form Factors Supported 0U vertical rackmount; includes rackmount brackets. Supports toolless mounting in button-mount compatible racks

Frequency 50/60 Hz

Frequency Compatibility 50 / 60 Hz

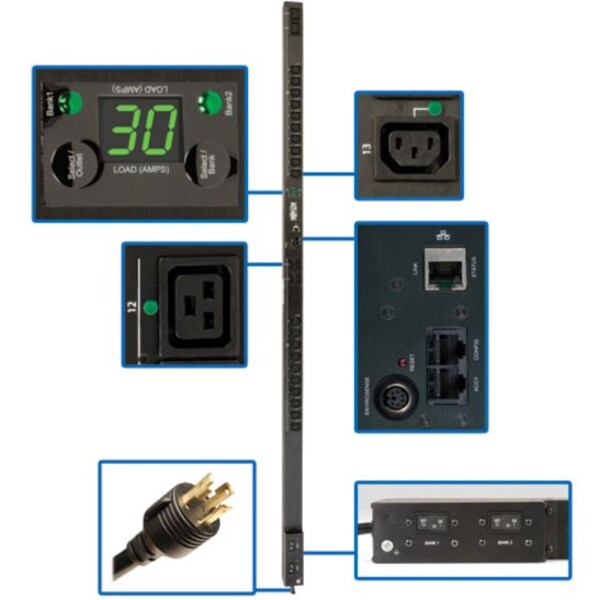

Front Panel LCD Display Digital display reports load level in amps for LOAD BANK 1 (Outlets 1-12), LOAD BANK 2 (Outlets 13-24), LOAD BANKS 1&2 COMBINED (Outlets 1-24) and each individual output receptacle; Digital display can also be used to scroll the configured IP address

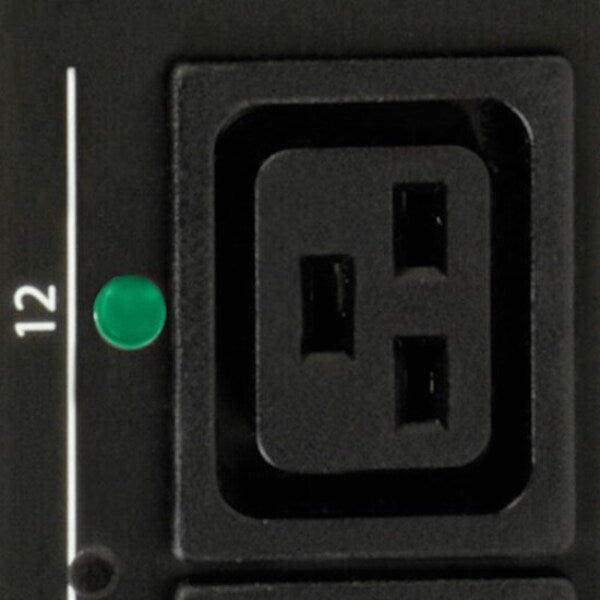

Front Panel LEDs BANK 1 and BANK 2 LEDs verify which load bank the digital current display is reporting (Bank 1, Bank 2 or Banks 1&2 Combined); BANK 1 or BANK 2 LED will flash when the digital display is reporting output current for one of the outlets in that load bank; 24 additional LEDs, one near each output receptacle, will light continuously to verify power on/off status and flash to indicate that the digital display is reporting output current for just that individual receptacle

Input Cord Length (ft.) 10

Input Phase Single-Phase

Input Voltage 230 V AC

Max. Amps 30A

Maximum Input Amps 30

Mount Type Rack-mountable

Mounting Orientation Vertical

Mounting Style Vertical Rackmount/0U

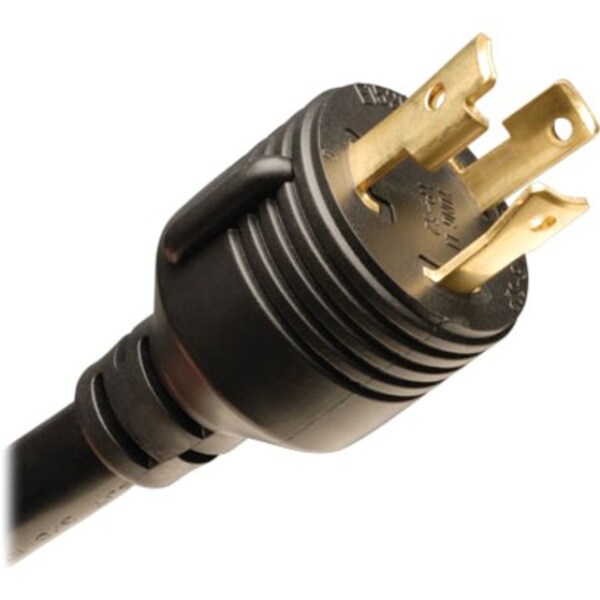

NEMA Plug Configuration NEMA L6-30P

NEMA Receptacle Configuration C13; C19

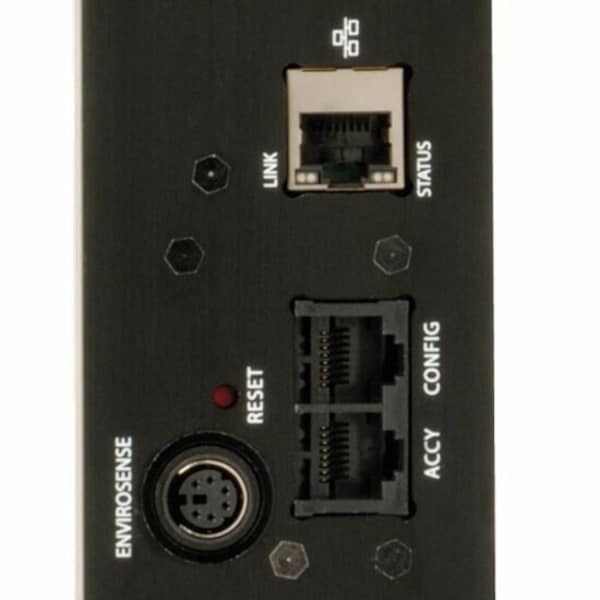

Network (RJ-45) Yes

Network Compatibility 10 Mbps; 100 Mbps (Fast Ethernet)

Number of Outlets 24

Operating Elevation (ft.) 0-10,000

Output Capacity Details 5.8kW (240V), 5kW (208V), 4.8kW (200V) total capacity / 30A max (Agency de-rated to 24A), 20A max per breakered outlet bank; 16A max per C19 outlet; 12A max per C13 outlet

Output Nominal Voltage 200; 208; 240

Output Receptacles (20) C13; (4) C19

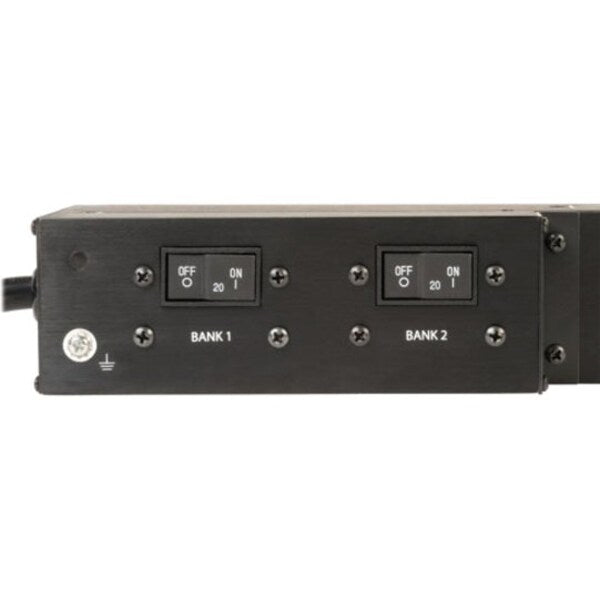

Overload Protection Two 20A breakers protect 12 outlets each

Package Contents Switched PDUMVR30HVNET 24-Outlets PDU, User's Guide CD-ROM, Screws, Cord Retention Shelf, 4 x Mounting Buttons, RJ-45 Cable, Mounting Bracket, Cable Ties

Package Includes Rackmount PDU;Rackmount brackets;PDUMVROTATEBRKT

Package Quantity 1

PDU Form Factor Vertical (0U)

PDU Plug Type NEMA L6-30P

PDU Type Switched

Plug/Connector Type NEMA L6-30P

Product Name Switched PDUMVR30HVNET 24-Outlets PDU

Product Series Switched

Product Type PDU

Receptacle Detail 4 x IEC 60320 C19, 20 x IEC 60320 C13

Recommended Electrical Service 30A 208/240V

Relative Humidity 5-95% non condensing

SNMP Compatibility Built-in network interface provides remote monitoring via PowerAlert Console Launcher, Telnet, SSH, and SNMP management systems. Remote management enables outlets to be turned on and off individually

Storage Temperature Range 5 to 122F (-15 to 50C)

Switches SELECT OUTLET and SELECT BANK switches advance the LCD screen and associated LED to display power consumption for individual output receptacles and output load banks; Press and hold the SELECT BANK button for 4 seconds to rotate the digital display 90 degrees for overhead power input; Press and hold the SELECT OUTLET button for 4 seconds to scroll the configured IP address

Unit Dimensions (hwd / in.) 70.000 x 2.200 x 2.600

Voltage 208/240V
