Power Conditioner, 3U Rackmount, 2.4kVA

SKU
Brand Tripp Lite
Categories
Description Power Conditioner, Mounting Type Rack Mount, Max. Amps 20A, Input Voltage 120V, Output Voltage 120V, Power Rating 2.4kVA, Output Watts 2,400 W, Corded, Width 19 in, Depth 5 in, Height 5 1/4 in, Phase Single, Voltage Regulation Percent -10, +16 Percent, +9 Percent, Cord Length 12 ft, Number of Outlets 14, NEMA Plug Configuration 5-15P, NEMA Receptacle Configuration 5-15R, Features LEDs Display Incoming Voltage Range, Surge Suppression and Line Fault Status
graingerSKU: 5JK12, mscSKU: , zoro_no: G0460327, mongo_id: 65bbe7313aaddbd5a907e75c

Web Price

$578.74 / each

Qty

Product Details

Additional Information Convenient 19 inch rackmount format installs in any 2 or 4 post equipment rack, Voltage Regulation: +10%/-12%, Input voltages over 128V are reduced by 9.6%, Input voltages between 103 and 112V are boosted by 8.9%, Input voltages below 102V are boosted by 18.8%, Network grade AC surge suppression, Two built-in isolated filter banks prevent noise interaction between connected devices, Black color outlets offer basic filtering, white color outlets offer enhanced filtering for the most sensitive connected devicesMaintains regulated output voltage during severe brownouts and overvoltages for computer accessories, printers, home theater equipment, a/v components, sound reinforcement, point-of-sale equipment, and other applications requiring clean, regulated AC power.

Brownout Correction Input voltages between 111V (+/-3V) and 103V (+/-3V) are boosted by 9%.

Cord Length 12 ft

Country of Origin (subject to change) China

Depth 5 in

Dimensions (W x D x H) 19 in x 5 in x 5 1/4 in

EMI / RFI AC Noise Suppression 80 dB

Features LEDs Display Incoming Voltage Range, Surge Suppression and Line Fault Status

Form Factors Supported Standard 19 inch rack mount format using 3 rack spaces (3U).

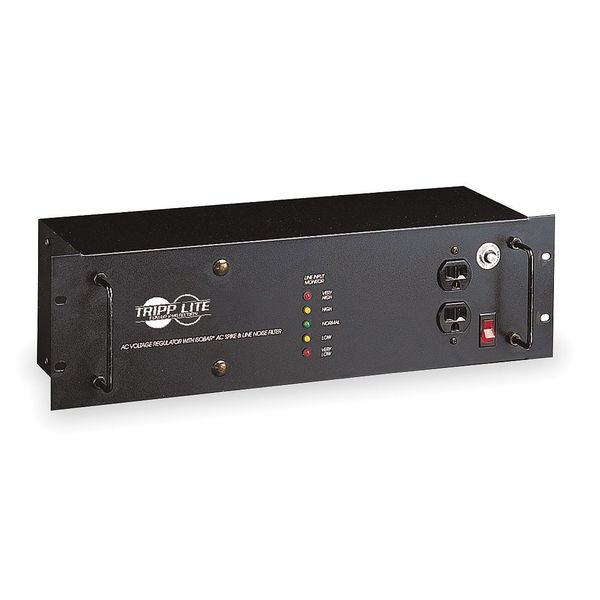

Front Panel LEDs 7 LEDs show incoming voltage status, protection present and line fault conditions

Hardwired/Corded Corded

Height 5 1/4 in

Input Cord Length (ft.) 12

Input Plug Type NEMA 5-15P

Input Voltage 120V

Input Voltage Range 89 V AC - 147 V AC

Load Capacity (VA) 2400 W

Material of Construction Steel

Max. Amps 20A

Maximum Frequency 60 Hz

Maximum Line Current 20 A

Mounting Type Rack Mount

NEMA Plug Configuration 5-15P

NEMA Receptacle Configuration 5-15R

Nominal Output Voltage(s) Supported 120V

Number of Outlets 14

Output (Watts) 2400

Output Capacity Details Supports 120V 20A 2400W intermittent and 16A 1920W continuously when connected to a 120V 20A rated circuit; Supports 120V 15A 1800W intermittent and 12A 1440W continuously when connected to a 120V 15A rated circuit

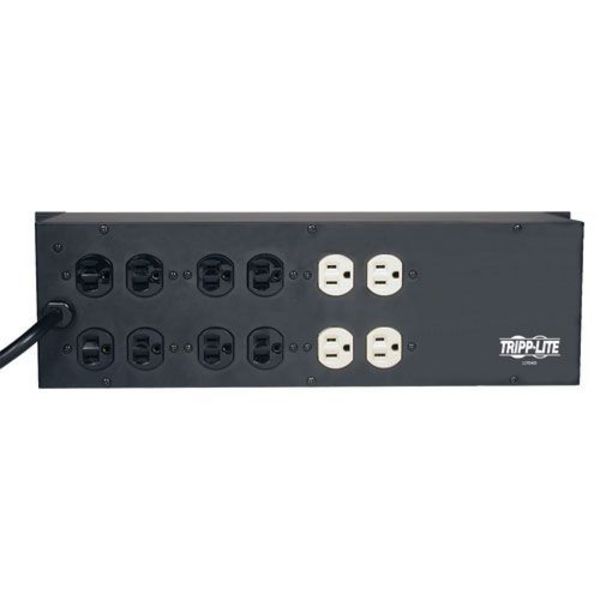

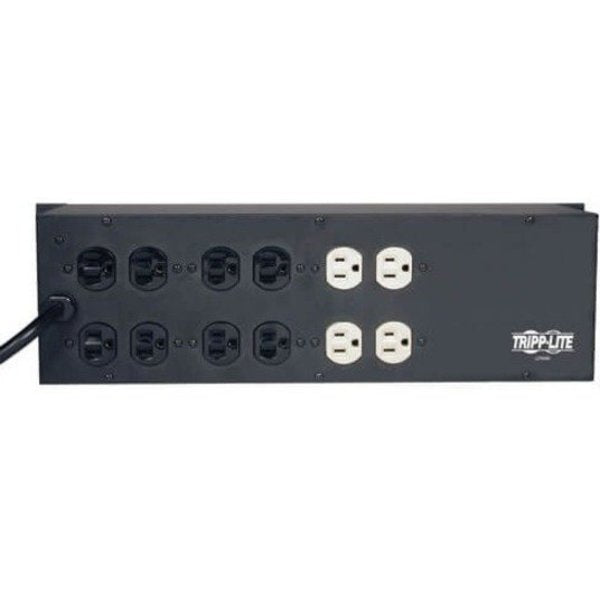

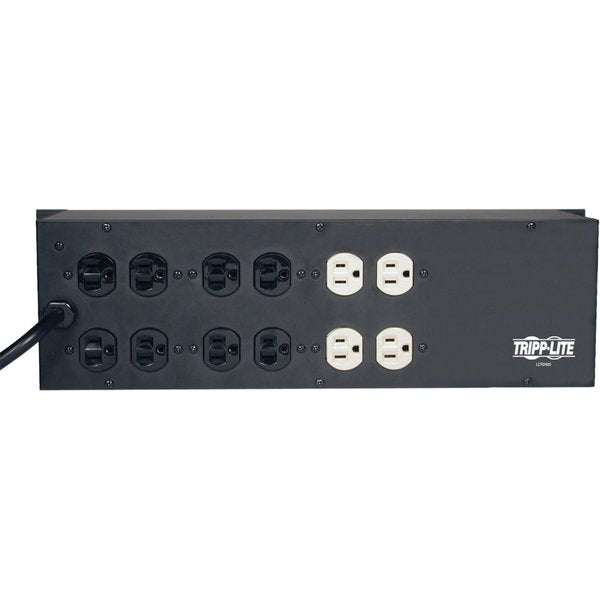

Output Receptacles (14) 5-15R

Output Voltage 120V

Output Watts 2,400 W

Overvoltage Correction Input voltages over 128V (+/-3V) are reduced by 10%

Package Contents 2400W Rack Mount Line Conditioner, LCR2400 Line Conditioner, Mounting hardware, Instruction manual

Package Quantity 1

Phase Single

Plug/Connector Type NEMA 5-15P

Power Rating 2.4kVA

Product Name 2400W Rack Mount Line Conditioner

Protection Type EMI / RFI, Surge, Brownout, Over Voltage

Receptacles Detail 14 x NEMA 5-15R

Severe Brownout Correction Input voltages below 102V (+/-3V) are boosted by 19%.

Surge Energy Rating 1440 J

UPS AC Suppression Joule Rating 1440

Voltage Regulation % -10, +16%, +9%

Voltage Regulation Description Maintains usable 120V nominal voltage during brownouts as low as 89VAC and over-voltages as high as 147VAC. Input voltages between 112Vto127V are passed through unchanged.

Width 19 in
