Power Conditioner, Small Tower, 1.8kVA

SKU
Brand Tripp Lite
Categories
Description Power Conditioner, Mounting Type Wall Mount, Max. Amps 15A, Input Voltage 120V, Output Voltage 120V, Power Rating 1.8kVA, Output Watts 1,800 W, Corded, Width 6 in, Depth 7 in, Height 7 in, Phase Single, Voltage Regulation Percent -10, +16 Percent, +9 Percent, Cord Length 7 ft, Number of Outlets 6, NEMA Plug Configuration 5-15P, NEMA Receptacle Configuration 5-15R, Features LEDs Display Incoming Voltage Range, Surge Suppression and Line Fault Status
graingerSKU: 5JK10, mscSKU: 54072228, zoro_no: G2208823, mongo_id: 65bbe5943aaddbd5a9fd24c1

Web Price

$359.99 / each

Qty

Product Details

Additional Information Voltage Regulation: +10%/-12%, Input voltages over 128V are reduced by 9.6%, Input voltages between 103 and 112V are boosted by 8.9%, Input voltages below 102V are boosted by 18.8%, Network grade AC surge suppressionMaintains regulated output voltage during severe brownouts and overvoltages for computer accessories, printers, home theater equipment, a/v components, point-of-sale equipment, and other applications requiring clean, regulated AC power.

Brownout Correction Input voltages between 111V (+/-3V) and 103V (+/-3V) are boosted by 9%.

Certifications & Standards IEEE 587 / ANSI C62.41, UL1012 (USA), cUL1012 (Canada), NOM (Mexico)

Cord Length 7 ft

Country of Origin (subject to change) China

Depth 7 in

Dimensions (W x D x H) 6 in x 7 in x 7 in

EMI / RFI AC Noise Suppression 80 dB

Features LEDs Display Incoming Voltage Range, Surge Suppression and Line Fault Status

Form Factor Mini-tower

Form Factors Supported Small Tower

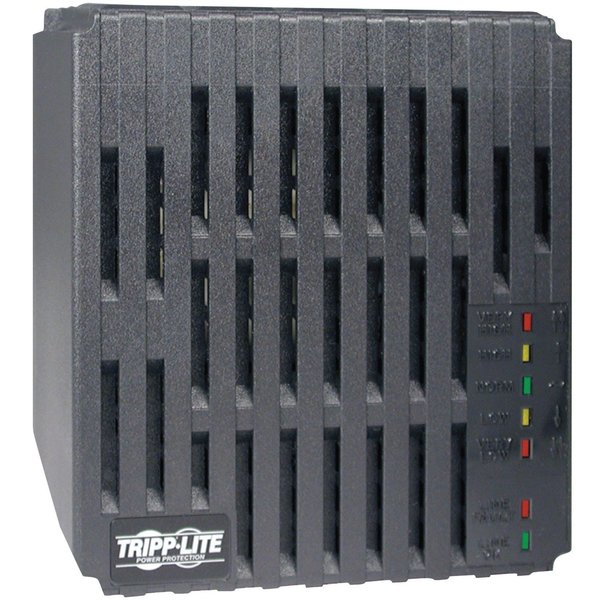

Front Panel LEDs 7 LEDs show incoming voltage status, protection present and line fault conditions

Hardwired/Corded Corded

Height 7 in

Input Cord Length (ft.) 7

Input Voltage 120V

Input Voltage Range 89 V AC - 147 V AC

Load Capacity (VA) 1800 W

Material of Construction Plastic

Max. Amps 15A

Maximum Frequency 60 Hz

Maximum Line Current 15 A

Mounting Type Wall Mount

NEMA Plug Configuration 5-15P

NEMA Receptacle Configuration 5-15R

Nominal Output Voltage(s) Supported 120V

Number of Outlets 6

Output (Watts) 1800

Output Capacity Details Agency de-rated per NFPA 70 to 12A, 1440W continuous and up to 15A, 1800W intermittent

Output Receptacles (6) 5-15R

Output Voltage 120V

Output Watts 1,800 W

Overvoltage Correction Input voltages over 128V (+/-3V) are reduced by 10%

Package Contents 1800W Mini Tower Line Conditioner, LC1800 Line Conditioner, Mounting hardware, Instruction manual

Package Quantity 1

Phase Single

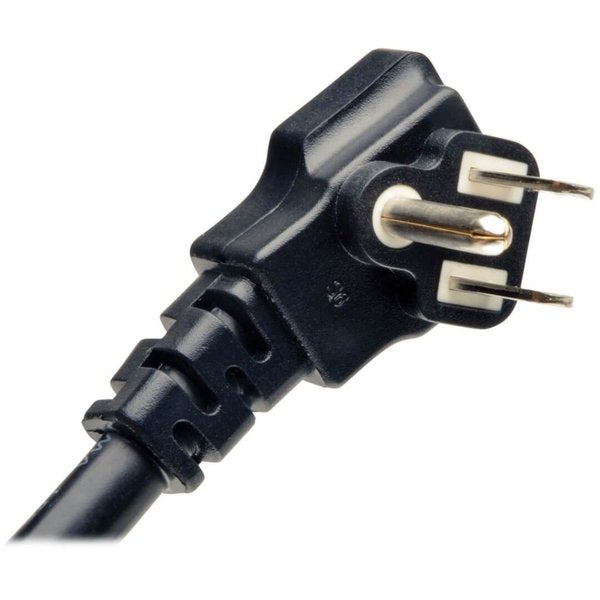

Plug Type Right-angle NEMA 5-15P input plug

Plug/Connector Type NEMA 5-15P

Power Rating 1.8kVA

Product Name 1800W Mini Tower Line Conditioner

Protection Type Brownout, EMI / RFI, Over Voltage, Surge

Receptacles Detail 6 x NEMA 5-15R

Severe Brownout Correction Input voltages below 102V (+/-3V) are boosted by 19%.

Surge Energy Rating 1440 J

UPS AC Suppression Joule Rating 1440

Voltage Regulation % -10, +16%, +9%

Voltage Regulation Description Maintains usable 120V nominal voltage during brownouts as low as 89VAC and over-voltages as high as 147VAC. Input voltages between 112V~127V are passed through unchanged.

Width 6 in
