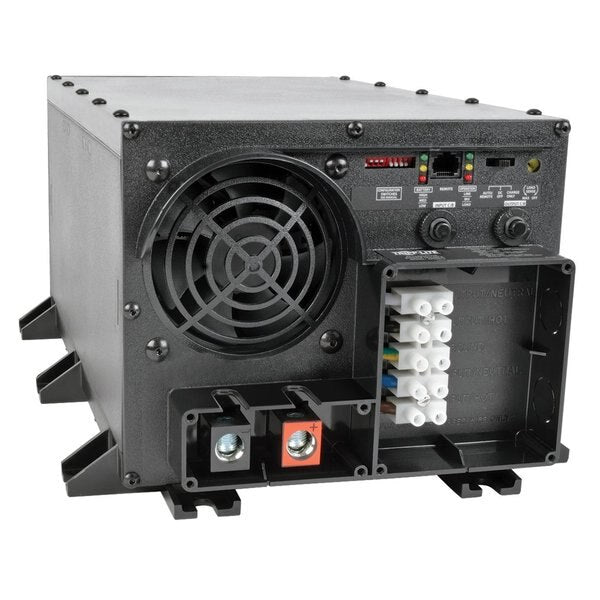

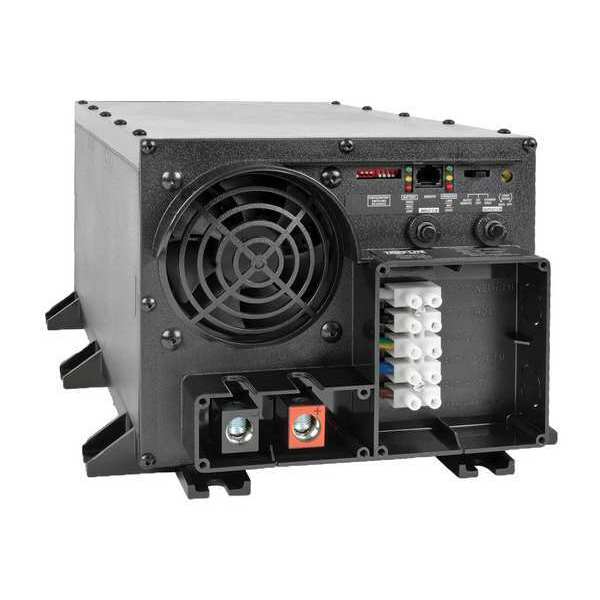

Power Verter Int Series, Polycarbonate Case, Sine Wave Form, 2400W Nominal Output

SKU
Brand Tripp Lite
Categories
Description Power Verter Int Series 24Vdc To 230V, Inverter Output Form Modified Sine Wave, DC Connection Hardwired, Peak Output Power 4,800 W, Inverter Input Voltage 230V AC, Inverter Output Voltage 230V AC, Charger Output Voltage 24V DC, Case Material Polycarbonate, Cooling Method Fan, Application Vehicle Inverter; Standalone AC Power Source, Inverter Height 7.25 in, Inverter Width 8.5 in, Inverter Depth 16.25 in, Automatic/Manual Automatic, Charger Input Current 7 A
graingerSKU: 38M969, mscSKU: , zoro_no: G3127927, mongo_id: 65bbe70e3aaddbd5a9070571

Web Price

$1,762.49 / each

Qty

Product Details

Application Vehicle Inverter; Standalone AC Power Source

Automatic/Manual Automatic

Battery Charge 30A

Battery Pack Accessory (Optional) 98-121 sealed lead acid battery (optional)

Case Material Polycarbonate

Charger Input Current 7 A

Charger Output Amps 30 A

Charger Output Current 7 A

Charger Output Voltage 24V DC

Continuous Output Capacity (Watts) 2400

Continuous Power Load 2400 W

Cooling Method Fan

Country of Origin (subject to change) China

DC Connection Bolt Down Terminals

DC System Voltage (VDC) 24

Depth 8-1/2

Expandable Runtime Yes

Features Expandable Runtime; Overload Protection

Form Factors Supported Mounting slots enable permanent placement of inverter on any horizontal surface (see manual for additional mounting information)

Frequency Compatibility 50 Hz

Front Panel LEDs Set of 6 LEDs offer continuous status information on load percentage (6 levels reported) and battery charge level (7 levels reported). See manual for sequences.

Height 7-1/4

High Voltage Transfer to Battery Power In AC auto mode, inverter/charger switches to battery mode as line voltage increases to 259V (user adjustable to 264 - see manual)

Input Connection Type DC INPUT: Set of 2 DC bolt-down terminals. AC INPUT: Hardwire via built in junction box with cover plate

Input Voltage 24 V DC, 220 V AC

Inverter Depth 16.25 in

Inverter Height 7.25 in

Inverter Input Voltage 230V AC

Inverter Output Form Sine Wave

Inverter Output Voltage 230V AC

Inverter Width 8.5 in

Inveter Output Voltage 230V

Load Sensing Optional load sense function enables automatic inverter shutoff and startup as connected equipment is powered off and on. Front panel load sense potentiometer can be set to shutoff or turn on inverter power in response to loads of any level, up to 150 watts.

Low Voltage Transfer to Battery Power In AC auto mode, inverter/charger switches to battery mode as line voltage drops to 144V (user adjustable to 163, 182, 201V - see manual)

Material of Construction Polycarbonate

Max. Input Current Full continuous load - 112 A at 24V DC; 17 amps at 230V AC with full inverter and charger load

Maximum Frequency 50 Hz

Maximum Input Amps / Watts DC INPUT: Full continuous load - 112A at 24VDC. AC INPUT: 17 amps at 230VAC with full inverter and charger load (7A max charger-only / combined input load to support charger and AC output is automatically controllable to 66%-33%-0% based on AC output loading using the charger limiting set points - see manual for setting instructions)

Nominal Input Voltage(s) Supported 230V AC

Nominal Output Power 2400W

Nominal Output Voltage(s) Supported 230V

Outlet Type Hardwire

Output Frequency 50 Hz

Output Frequency Regulation 50 Hz (+/- 0.3 Hz)

Output Receptacles Hardwire

Output Voltage 24 V DC, 230 V AC

Output Voltage Regulation LINE POWER (AC): Maintains 230V nominal sine wave output from line power source. INVERTER POWER (AC): Maintains PWM sine wave output voltage of 230 VAC (+/-5%).

Overload Protection Includes 10A input breaker dedicated to the charging system and 15A output breaker for AC output loads.

Package Contents PowerVerter INT APSINT2424 DC-to-AC Power Inverter, Instruction Manual with Warranty Information

Package Includes APSINT2424 2400W APS INT Series 24V DC 230V AC Inverter/Charger;Owner's manual

Package Quantity 1

Peak Output Capacity (Watts) 4800

Peak Output Power 4800W

Peak Power Load 4800 W

Plug/Connector Type Hardwired, Terminal Block

Product Line PowerVerter

Product Name PowerVerter INT APSINT2424 DC-to-AC Power Inverter

Product Series INT

Product Type Power Inverter

Pure Sine Wave Output No

Receptacles Hardwired

Recommended Electrical Service DC INPUT: Requires 24VDC input source capable of delivering 112A for the required duration (when used at full continuous capacity - DC requirements increase during OverPower and DoubleBoost operation). For automotive applications, professional hardwire installation with 300A minimum battery system fusing is recommended.

Relative Humidity 0%-95% Non-Condensing

Standards RoHS Compliant

Switches 3 position on/off/remote switch enables simple on/off power control plus auto/remote setting that enables distant on/off control of the inverter system when used in conjunction with optional APSRM4 accessory when used in inverter mode. In AC uninterruptible power mode, auto/remote setting enables automatic transfer from line power to battery power - to maintain continuous AC power to connected loads.

Transfer Time (Line Power to Battery Mode) 20 milliseconds (typical - compatible with many computers, servers and networking equipment - verify transfer time compatibility of loads for UPS applications)

Unit Dimensions (hwd / in.) 7.250 x 8.500 x 16.250

Voltage Compatibility (VAC) 230

Voltage Compatibility (VDC) 24

Waveform Type Pulse-width Modulated Sine Wave

Width 16-1/4
