Home / Rack, 42U, Wide Depth, Shock Pallet

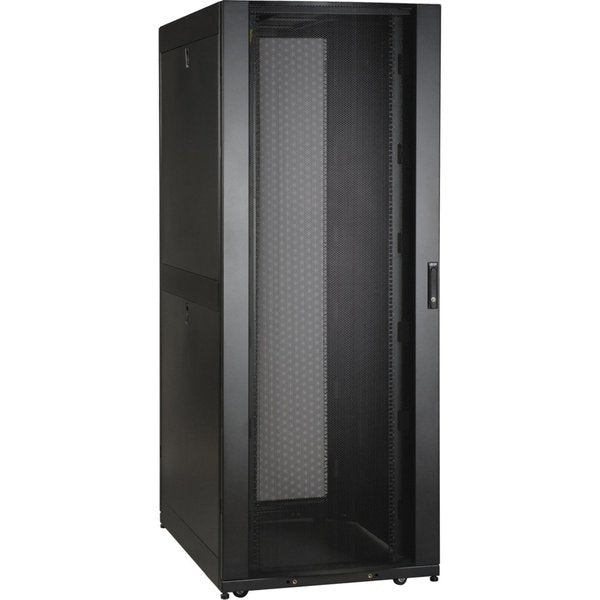

Rack, 42U, Wide Depth, Shock Pallet

SKU
Brand Tripp Lite
Categories
Description Rack,42U,Wide Depth,Shock Pallet

Web Price

$3,701.24 / each

Qty

Product Details

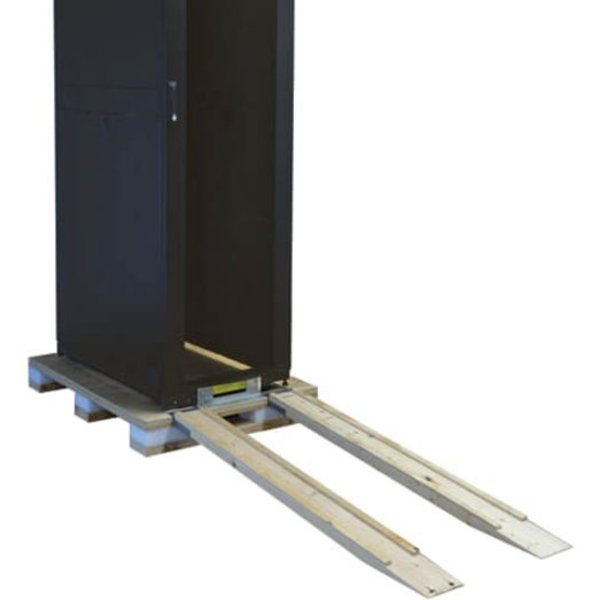

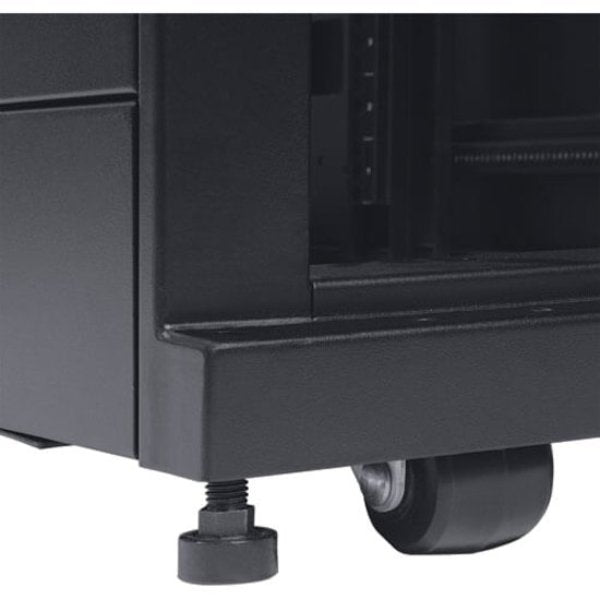

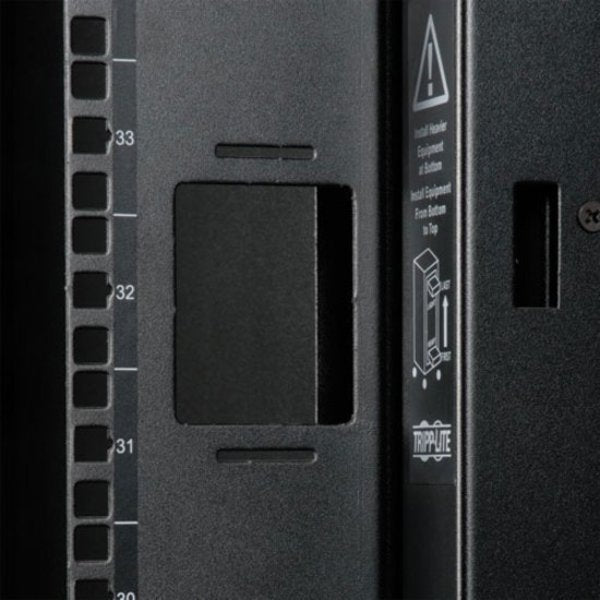

Additional Information Heavy-duty ramps (included) allow enclosure to be rolled on and off the pallet during configuration, Front and rear sets of equipment mounting rails adjust in 1/4 increments. Adjustment is quick and convenient. The easy-view depth index ensures consistent rail placement without requiring time-consuming measurements, Toolless accessory mounting rails (2 rails per enclosure) include slots for quick installation of compatible PDUs and vertical cable managers. Mounting slots are arranged in an industry-standard pattern compatible with a wide variety of accessories. Each rail can accommodate two vertical PDUs or cable managers side-by-side (four items per enclosure), Massive front to rear ventilation capacity. 65+% open space in door perforation pattern meets or exceeds server manufacturer requirements, 4 Interior vertical posts with unthreaded square hole openings, Maximum usable internal depth of 37 inches/94 cm (front to rear rail), Built in baying tabs allow enclosures to be combined securely in rows. Center-to-center width can be set at 750mm or 29.5 to match standard data center floor tiles, Leveling feet extend to allow enclosure to be positioned on uneven floors. Levelers are removable, Compact design allows the enclosure to roll through standard height commercial doorways, Convenient grounding system. All components are grounded to the enclosure frame which includes multiple connections for facility ground. Front and rear doors include quick-release ground wires, Open bottom for cable access, Top panel has generous cable access holes. Panel can be removed toollessly in seconds without having to disconnect cables first

Approvals EIA/ECA-310-E

Built-in Cable Management Yes

Certifications UL60950; RoHS; CE; IP20 Protection Rating

Color Black

Country of Origin (subject to change) China

Depth 43

Device Compatibility Patch Panel; Network Switch; UPS; Server

Dynamic/Rolling Weight Capacity 2250 lb

Extra Wide Yes

Factory Preset Rack Depth (in.) 27.75

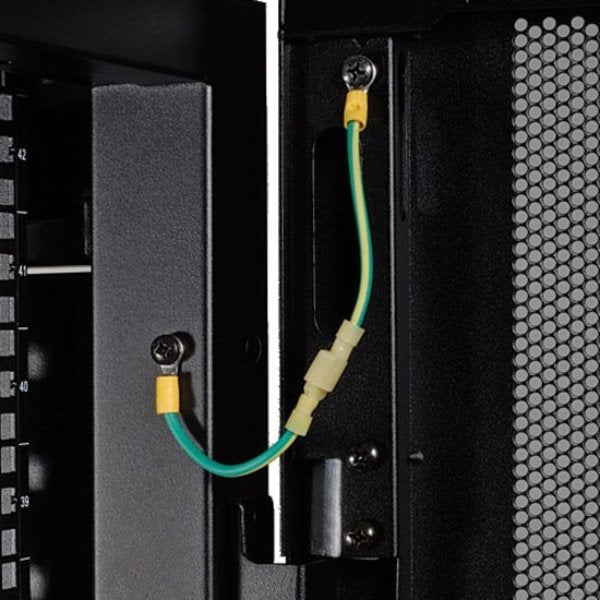

Grounding Details Front and rear door frames

Grounding Lug Front and rear door frames

Height 78.5

Maximum Device Depth (in.) 37

Minimum Device Depth (in.) 4

Number of Vertical Mounting Rails 4

Package Contents SmartRack SR42UBWDSP1 Rack Cabinet, 4 x Side Panels, 4 x Side Panel Locks, 2 x Door and Side Panel Keys, 50 x M6 Screws, 50 x M6 Washers, 50 x M6 Cage Nuts, Owner's Manual, Mounting Hardware, Stabilizing Bracket

Package Includes SR42UBWD Rack Enclosure;(4) side panels;(4) side panel locks;(2) door & side panel keys;(50) M6 screws;(50) M6 washers;(50) M6 cage nuts;Owner's Manual

Package Quantity 1

Pre-Installed Casters Yes

Product Compliance UKCA

Product Line SmartRack

Product Name SmartRack SR42UBWDSP1 Rack Cabinet

Product Type Rack Cabinet

Rack Depth Standard

Rack Height 42U

Rack Type Enclosure

Rack Width 19

Static/Stationary Weight Capacity 3000 lb

Unit Dimensions (hwd / in.) 78.500 x 29.630 x 43.000
