Home / Surge, 12 Outlet, 8ft cord, 2880J, Modem

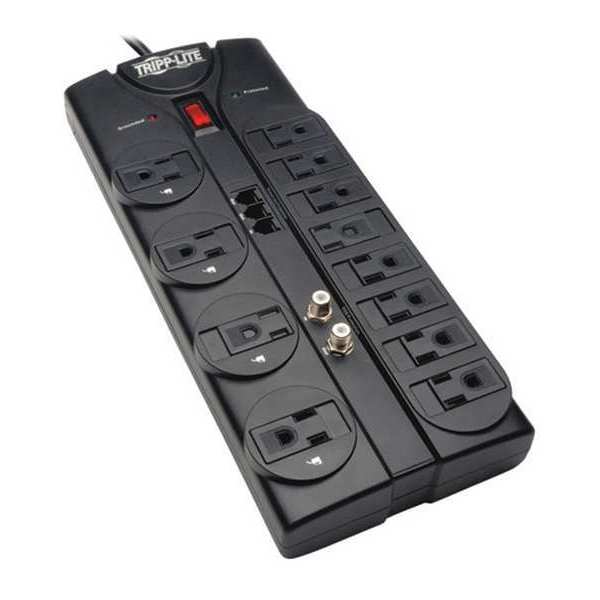

Surge, 12 Outlet, 8ft cord, 2880J, Modem

SKU
Brand Tripp Lite
Categories
Description Surge,12 Outlet,8ft cord,2880J,Modem
graingerSKU: 43MF58, mscSKU: , zoro_no: G5175488, mongo_id: 65bbe9cb22d7a989a997b027

Web Price

$74.49 / each

Qty

Product Details

AC Suppression Joule Rating 2880

AC Suppression Response Time < 1 ns

Automatic Shut-Off Yes

Cable (Coax) Protection Yes

Cable (Coax) Protection Details 1 line (2.2 GHz Bandwidth)

Circuit Breaker Yes

Circuit Breaker (amps) 15

Coax Surge Protection Yes

Color Black

Communication Port FCC Part 68

Cord Length 2.44m

Country of Origin (subject to change) China

Diagnostic LED Details Built-in LEDs confirm suppressor protection present (green) and grounded (red) status

Diagnostic LED(s) Yes

EMI / RFI Filtering Up to 40 dB

Features Automatic Shut-Off, Diagnostic LED(s), Integrated Keyhole Mounting Slots

Frequency 50/60 Hz

Frequency Compatibility 50 / 60 Hz

Gauge/Conductor 14 ga.

Housing Color Black

Housing Material Plastic

Hz_ 50/60 Hz

Input Cord Color Black

Input Cord Details SJT

Input Cord Gauge (AWG) 14

Input Cord Gauge Type 14 gauge; SJT

Input Cord Length (ft.) 8

Input Plug Features Right Angle (36D)

Input Plug Type NEMA 5-15P

Material of Construction Plastic

Max. Amps 15A

Maximum Surge Amps 180000

Mounting Holes or Slots Yes

Mounting Style Keyhole

NEC Cord Designation 14 ga., SJT

NEMA Plug Configuration NEMA 5-15P

NEMA Receptacle Configuration NEMA 5-15R

Network (Ethernet) Protection No

Noise Attenuation Up to 40 dB

Nominal Input Voltage(s) Supported 120V AC

Number of Outlet Rows 2

Number of Outlets 12

Number of Transformer Outlets 8

Outlet Center Distance 25.4 mm Standard; 57 mm Transformer

Outlet Configuration Two Rows of Outlets, Including 4 Widely Spaced For Transformers, Right-Angle Plug

Outlet Orientation Two rows of outlets, including 4 widely spaced for transformers

Outlet Surge Protection Yes

Outlets Measurement (Center to Center) Distance between standard outlets = 25.4mm; Distance between transformer outlets = 57mm

Output Capacity (VA) 15

Output Receptacles (12) 5-15R

Overload Protection 15A resettable circuit breaker

Package Includes TLP1208TELTV surge suppressor;6-ft. (1.83 m) RJ11 cable;1 set gold digital 2.2 GHz coax connectors;Instruction manual and warranty information

Package Quantity 1

Power Cord Color Black

Power Indicator Yes

Product Certifications CAN/CSA-C22.2 No. 269.3 (Canada); CAN/CSA-C22.2 No. 308 (Canada); cUL Listed; NOM (Mexico); UL 1449; UL 1363; UL Listed

Product Compliance FCC Part 68

Protection Modes Includes full normal mode (H-N) and common mode (N-G / H-G) line suppression

Rated Joules 2880 J

Receptacle Color Black

Recommended Electrical Service 120V (110-125V)

Right-Angle Plug Yes

Slot or Hole Mount Measurement (Center to Center) Distance between horizontal tabs = 152 mm; Distance between vertical tabs = 73.5 mm

Standards IEEE 587, UL1363, UL1449, UL497A
