Home / Surge, 7 Out, 6ft cord, 1080J, Modem, Black

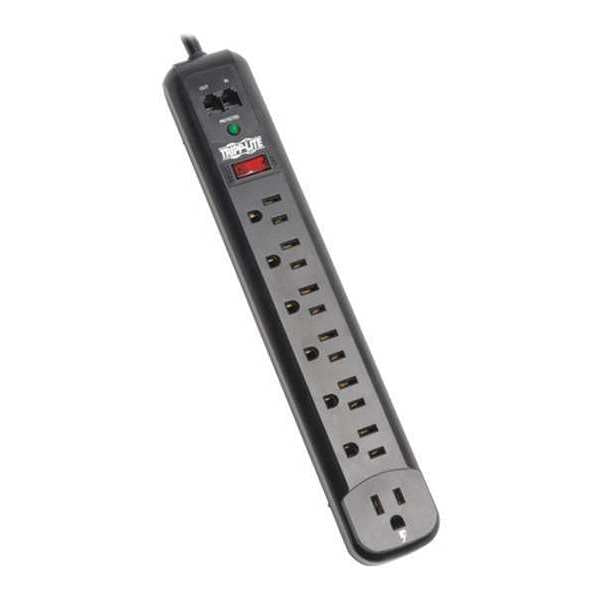

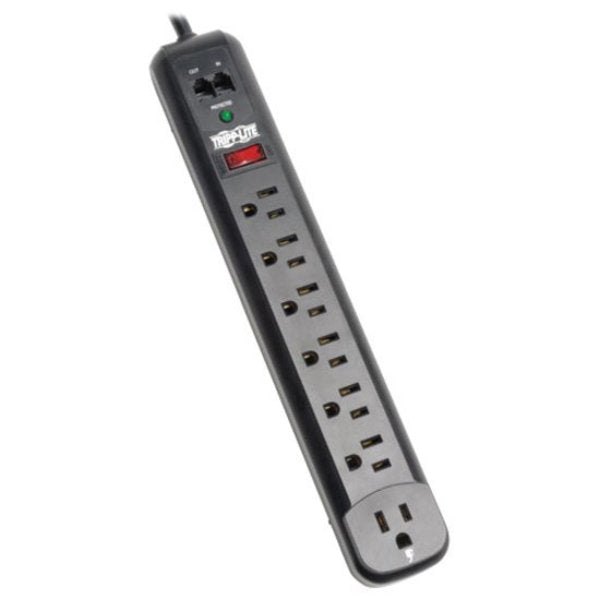

Surge, 7 Out, 6ft cord, 1080J, Modem, Black

SKU
Brand Tripp Lite
Categories
Description Surge,7 Out,6ft cord,1080J,Modem,Black
graingerSKU: 43MF69, mscSKU: , zoro_no: G5175375, mongo_id: 65bbe9cb22d7a989a997b02c

Web Price

$36.11 / each

Qty

Product Details

AC Suppression Joule Rating 1080

AC Suppression Response Time < 1 ns

Additional Information Attractive black housing, Lighted on/off switch with integrated circuit breaker for overload protection of all outlets, Diagnostic LED confirms surge suppression status, Integrated keyhole slots provide convenient wall/desk mounting, UL1449 3rd Edition Rated (400V all modes), UL1363 (Power Tap), cUL (Canada), Exceeds IEEE 587 category A & B surge suppression specifications

Automatic Shut-Off Yes

Circuit Breaker Yes

Circuit Breaker (amps) 15

Coax Surge Protection No

Color Black

Cord Length 1.83m

Country of Origin (subject to change) China

Dataline Protection Cable Modem/DSL/Fax/Phone

Depth 11.5

Diagnostic LED Details Built-in LED confirms suppressor protection present (green) status

Diagnostic LED(s) Yes

Features Automatic Shut-Off, Diagnostic LED(s), Integrated Keyhole Mounting Slots

Frequency 60 Hz

Frequency Compatibility 60 Hz

Gauge/Conductor 14 ga.

Height 1.3

Housing Color Black

Housing Material Plastic

Hz_ 60 Hz

Input Cord Color Black

Input Cord Details SJT

Input Cord Gauge (AWG) 14

Input Cord Gauge Type 14 gauge; SJT

Input Cord Length (ft.) 6

Input Plug Type NEMA 5-15P

Input Voltage 120 V AC

Material of Construction Plastic

Max. Amps 15A

Maximum Line Current 15 A

Maximum Surge Amps 36000

Maximum Surge Current 36 kA

Mounting Holes or Slots No

NEC Cord Designation 14 ga., SJT

NEMA Plug Configuration NEMA 5-15P

NEMA Receptacle Configuration NEMA 5-15R

Network (Ethernet) Protection No

Nominal Input Voltage(s) Supported 120V AC

Number of Outlet Rows 1

Number of Outlets 7

Number of Transformer Outlets 4

Outlet Center Distance 28.5 mm

Outlet Configuration Single Row, Right-Angle Outlets

Outlet Orientation Single row

Outlet Surge Protection Yes

Outlets Measurement (Center to Center) 28.5mm

Output Receptacles (7) 5-15R

Package Includes TLP76RBTEL Surge Suppressor

Package Quantity 1

Plug Style Right-Angle Plug

Plug/Connector Type NEMA 5-15P

Power Cord Color Black

Power Cord/Cable Length 6 ft

Power Handling 1800 VA

Product Certifications CAN/CSA-C22.2 No. 269.3 (Canada); CAN/CSA-C22.2 No. 308 (Canada); cUL Listed; NOM (Mexico); UL 1449; UL 497A; UL 1363; UL Listed

Product Line Protect It!

Product Name Protect It! TLP76RBTEL 7 Outlets Surge Suppressor

Protection Modes Includes full normal mode (H-N) and common mode (N-G / H-G) line suppression

Protection Type Surge, Noise

Rated Joules 1080 J

Receptacle Color Black

Receptacles 7 x NEMA 5-15R

Recommended Electrical Service 120V (110-125V)

Right-Angle Outlets Yes

Right-Angle Plug No

Slot or Hole Mount Measurement (Center to Center) 300 mm

Standards IEEE 587, UL1363, UL1449
