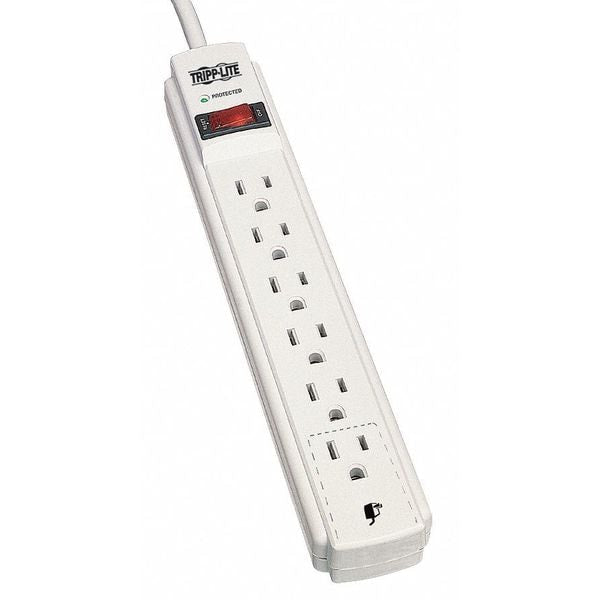

Surge Protector Strip, 6 Outlet, Gray

SKU
Brand Tripp Lite
Categories
Description Surge Protector Outlet Strip, Total Number of Outlets 6, Color Gray, Cord Length 15 ft, Communication Port None, Rated Joules 800, Application Home and Office, Housing Material Plastic, Max. Amps 15 A, Power Indicator Yes, Receptacle Configuration NEMA 5-15R, Plug Configuration NEMA 5-15P, Wire Size 14 AWG, Number of Transformer Outlets 1, USB Charging Port 0, Medical Facility Use Outside Patient Care Areas (UL 1363), Number of Conductors 3, Voltage 120V AC, Length 10 7/8 in
graingerSKU: 15D974, mscSKU: , zoro_no: G4276517, mongo_id: 65bbe8819a749db822795f8f

Web Price

$43.36 / each

Qty

Product Details

AC Suppression Joule Rating 790

AC Suppression Response Time < 1 ns

Additional Information Clamping voltage (RMS): 150V, Material of Construction: Plastic, AC Line Cord Color: Gray

Application Home and Office

Assembly Required No

Automatic Shut-Off Yes

Certifications & Standards UL Listed Certification

Circuit Breaker No

Circuit Breaker (amps) 15

Coax Surge Protection No

Color Light Gray

Color - Ext. Cords and Outlet Strips Gray

Communication Port None

Compatibility Workstation, Desktop PC

Cord Length 4.57m

Cord Length - Ext. Cords and Outlet Strips 15 ft.

Country of Origin (subject to change) China

Depth 1-15/64

Diagnostic LED Details Built-in LED confirms suppressor protection present (green) status

Diagnostic LED(s) Yes

EMI / RFI Filtering Up to 20 dB

Features Automatic Shut-Off, Diagnostic LED(s), Integrated Keyhole Mounting Slots

For Use With Desktop, Network Or Home Computing Application Requiring AC Protection

Frequency 60 Hz

Frequency Compatibility 60 Hz

Gauge/Conductor 14 ga.

Gauge/Conductor - Ext. Cords and Outlet Strips 14/3

Green Environmental Attribute RoHS 2011/65/EU Compliant

Height 1 1/4 in

Housing Color Light Gray

Housing Material Plastic

Hz_ 60 Hz

Includes Instruction Manual with Warranty Information

Input Cord Details SJT

Input Cord Gauge (AWG) 14

Input Cord Gauge Type 14 gauge; SJT

Input Cord Length (ft.) 15

Input Plug Type NEMA 5-15P

Input Voltage 120 V AC

Length 10 7/8 in

Length (Straight Wireway) 10 13/16 in

Material of Construction Plastic

Max. Amps 15A

Max. Amps - Ext. Cords and Outlet Strips 15.0

Max. Surge Current 35.5 kA

Maximum Line Current 15 A

Maximum Surge Amps 35500

Medical Facility Use Outside Patient Care Areas (UL 1363)

Medical Grade No

Mounting Holes or Slots Yes

Mounting Style Keyhole

NEC Cord Designation SJT

NEMA Plug Configuration NEMA 5-15P

NEMA Plug Configuration - Ext. Cords and Outlet Strips 5-15P

NEMA Receptacle Configuration NEMA 5-15R

Network (Ethernet) Protection No

Noise Attenuation Up to 20db

Nominal Input Voltage(s) Supported 120V AC

Number of Conductors 3

Number of Outlet Rows 1

Number of Outlets 6

Number of Total Outlets - Ext. Cords and Outlet Strips 6

Number of Transformer Outlets 1

Outlet Center Distance 28.5mm

Outlet Configuration Single Row of 6 Outlets

Outlet Orientation Single row of 6 outlets

Outlet Surge Protection Yes

Outlets Measurement (Center to Center) 28.5mm

Output Receptacles (6) 5-15R

Output Voltage 120 V AC

Overload Protection 15A resettable illuminated combo switch / circuit breaker

Package Contents Protect It! TLP615 6-Outlets Surge Suppressor, Instruction Manual with Warranty Information

Package Includes TLP615 Protect It! 6-Outlet Surge Protector, Light Gray Housing;Owner's manual

Package Quantity 1

Plug Configuration NEMA 5-15P

Plug/Connector Type NEMA 5-15P

Power Cord Color Light Gray

Power Cord/Cable Length 15 ft

Power Handling 1875 VA

Power Indicator Yes

Product Certifications CAN/CSA-C22.2 No. 269.3 (Canada); CAN/CSA-C22.2 No. 308 (Canada); cUL Listed; UL 1449; UL 1363; UL Listed

Product Color Gray

Product Line Protect It!

Product Name Protect It! TLP615 6-Outlets Surge Suppressor

Protection Modes Includes full normal mode (H-N) and common mode (N-G / H-G) line suppression

Protection Type Surge

Rated Joules 800

Receptacle Color Gray

Receptacle Configuration NEMA 5-15R

Receptacles 6 x NEMA 5-15R

Recommended Electrical Service 120V (110-125V)

Right-Angle Plug No

Slot or Hole Mount Measurement (Center to Center) Distance between slots = 101 mm; Distance between slot height = 28 mm

Standards cUL / CSA (Canada) cUL Approvals Exceeds IEEE 587 category A&B specifications, UL1363 (Power Tap) UL1363, UL1449 3rd Edition, UL1449 3rd Edition (AC Suppression)

Surge Energy Rating 790 J

Switches Combination AC circuit breaker and 2 position red illuminated on/off power switch

Telephone/Fax Surge Protection No

Total Number of Outlets 6

Trade Designation SJT

Transformer Accommodation (2) Yes

Unit Dimensions (hwd / in.) 10.800 x 1.850 x 1.230

USB Charging Port 0

Voltage 120VAC

Voltage Compatibility (VAC) 120

Watts 1800W

Width 1 7/8 in
