Home / Surge Protector Strip, 7 Outlet, Gray

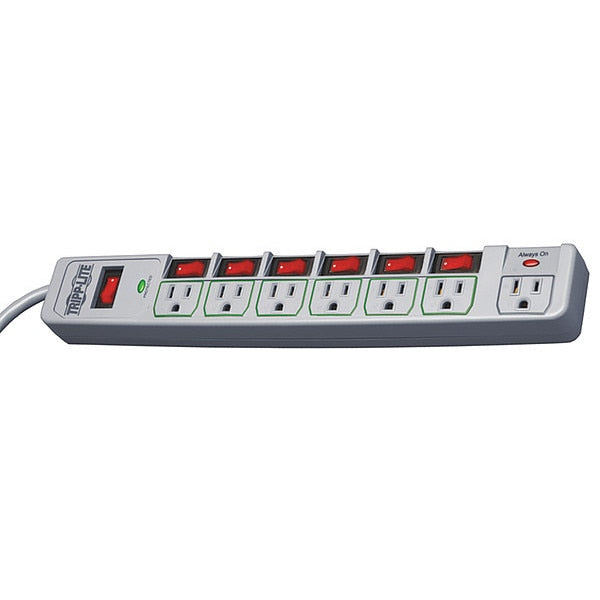

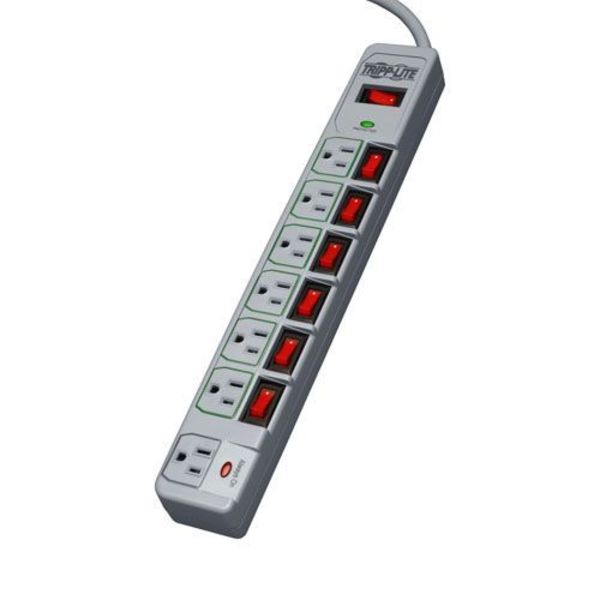

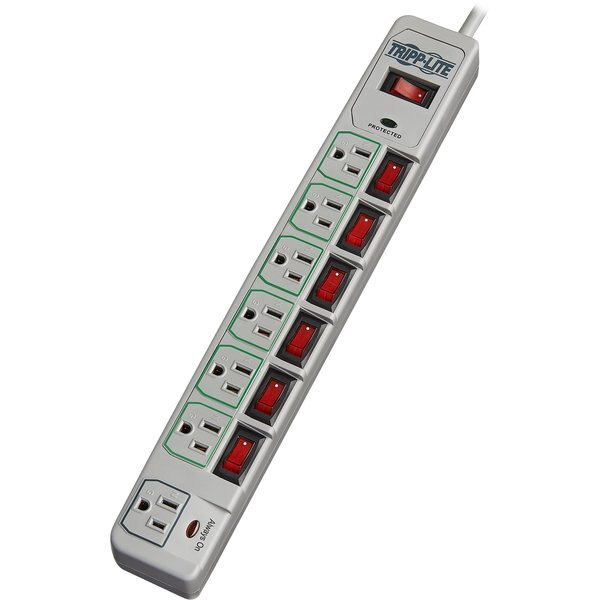

Surge Protector Strip, 7 Outlet, Gray

SKU
Brand Tripp Lite
Categories
Description Surge Protector Outlet Strip, Total Number of Outlets 7, Color Gray, Cord Length 6 ft, Communication Port None, Rated Joules 1,080, Application Home and Office, Housing Material Plastic, Max. Amps 15 A, Power Indicator Yes, Receptacle Configuration NEMA 5-15R, Plug Configuration NEMA 5-15P, Wire Size 14 AWG, Number of Transformer Outlets 1, USB Charging Port 0, Medical Facility Use Outside Patient Care Areas (UL 1363), Number of Conductors 3, Voltage 120V AC, Length 15 in
graingerSKU: null, mscSKU: null, zoro_no: G4261056, mongo_id: 65bbe6f53aaddbd5a906625d

Web Price

$62.49 / each

Qty

Product Details

AC Suppression Joule Rating 1080

AC Suppression Response Time < 1 ns

Additional Information Material of Construction: Plastic, AC Line Cord Color: Cool Gray, Clamping voltage (RMS): 150V, Individual outlet control, Style: Strip

Application Home and Office

Automatic Shut-Off Yes

Coax Surge Protection No

Color Gray

Color - Ext. Cords and Outlet Strips Gray

Communication Port None

Compatibility Computers/Peripherals

Cord Length 1.83m

Cord Length - Ext. Cords and Outlet Strips 6 ft.

Country of Origin (subject to change) China

Depth 1-1/2

Diagnostic LED(s) Yes

EMI / RFI Filtering Up to 40 dB

Features Automatic Shut-Off, Diagnostic LED(s), Integrated Keyhole Mounting Slots

Footnotes 19

For Use With Desktop, Network Or Home Computing Application Requiring AC Protection

Frequency 60 Hz

Frequency Compatibility 60 Hz

Gauge/Conductor 14 ga.

Gauge/Conductor - Ext. Cords and Outlet Strips 14/3

Green Environmental Attribute RoHS 2011/65/EU Compliant

Height 1 1/2 in

Housing Color Gray

Housing Material Plastic

Hz_ 60 Hz

Includes Individual Outlet Control, Instruction Manual and Warranty Information

Individually Controllable Load Banks Yes

Input Cord Color Gray

Input Cord Details SJT

Input Cord Gauge (AWG) 14

Input Cord Gauge Type 14 gauge; SJT

Input Cord Length (ft.) 6

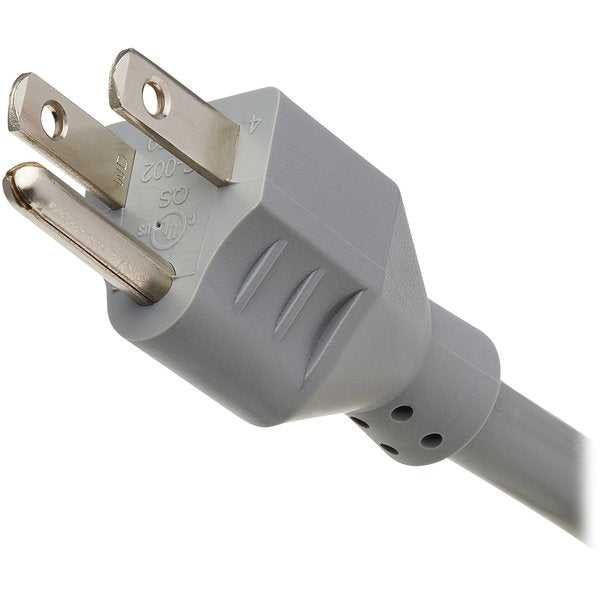

Input Plug Type NEMA 5-15P

Input Voltage 125 V AC

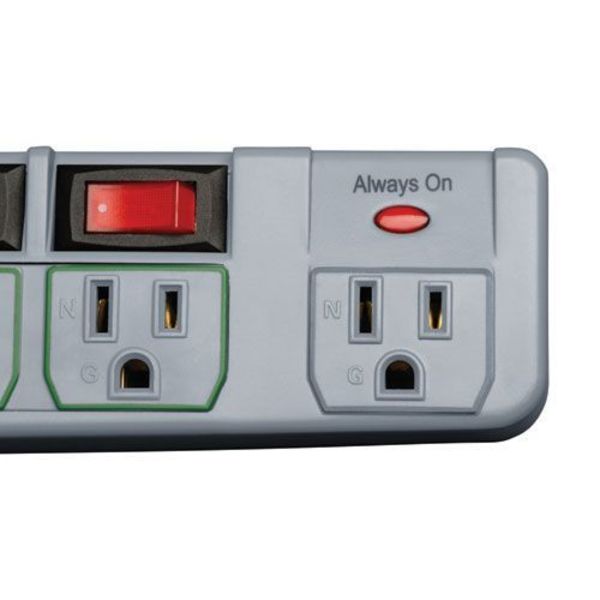

LED Indicators Protected (Green) & Always On Receptacle (Red)

Length 15 in

Length (Straight Wireway) 15 in

Material of Construction Plastic

Max. Amps 15A

Max. Amps - Ext. Cords and Outlet Strips 15.0

Max. Surge Current 72 kA

Maximum Surge Amps 72000

Medical Facility Use Outside Patient Care Areas (UL 1363)

Medical Grade No

Mounting Holes or Slots No

Mounting Style Keyhole

NEC Cord Designation SJT

NEMA Plug Configuration NEMA 5-15P

NEMA Plug Configuration - Ext. Cords and Outlet Strips 5-15P

NEMA Receptacle Configuration NEMA 5-15R

Network (Ethernet) Protection No

Noise Attenuation Up to 40dB

Nominal Input Voltage(s) Supported 120V AC

Number of Conductors 3

Number of Outlets 7

Number of Total Outlets - Ext. Cords and Outlet Strips 7

Number of Transformer Outlets 1

Outlet Configuration Right-Angle Outlets

Outlet Surge Protection Yes

Output Capacity (VA) 120

Output Capacity (Watts) 1800

Output Receptacles (7) 5-15R

Output Voltage 125 V AC

Package Contents ECO-SURGE TLP76MSG 7-Outlets Surge Suppressor, Instruction Manual with Warranty Information

Package Includes TLP76MSG ECO-SURGE Home/Business Theater Surge Suppressor;Instruction manual with warranty information

Package Quantity 1

Plug Configuration NEMA 5-15P

Plug/Connector Type NEMA 5-15P

Power Cord Color Gray

Power Cord/Cable Length 6 ft

Power Handling 1800 VA

Power Indicator Yes

Product Certifications CAN/CSA-C22.2 No. 269.3 (Canada); CAN/CSA-C22.2 No. 308 (Canada); cUL Listed; NOM (Mexico); UL 1449; UL 1363; UL Listed

Product Line ECO-SURGE

Product Name ECO-SURGE TLP76MSG 7-Outlets Surge Suppressor

Protection Modes Includes full normal mode (H-N) and common mode (N-G / H-G) line suppression

Protection Type Surge

Rated Joules 1,080

Receptacle Color Gray

Receptacle Configuration NEMA 5-15R

Receptacles 7 x NEMA 5-15R

Recommended Electrical Service 120V (110-125V)

Right-Angle Outlets Yes

Right-Angle Plug No

Slot or Hole Mount Measurement (Center to Center) 300 mm

Special Features Individual Outlet Control

Standards cUL / CSA (Canada) cULApprovals Exceeds IEEE 587 category A&B specifications, UL1363 (Power Tap) UL1363, UL1449 3rd Edition, UL1449 3rd Edition (AC Suppression)

Surge Energy Rating 1080 J

Switches 1 x Lighted Master Switch & 6 x Lighted Receptacle Switches

Telephone/Fax Surge Protection No

Total Number of Outlets 7

Trade Designation SJT

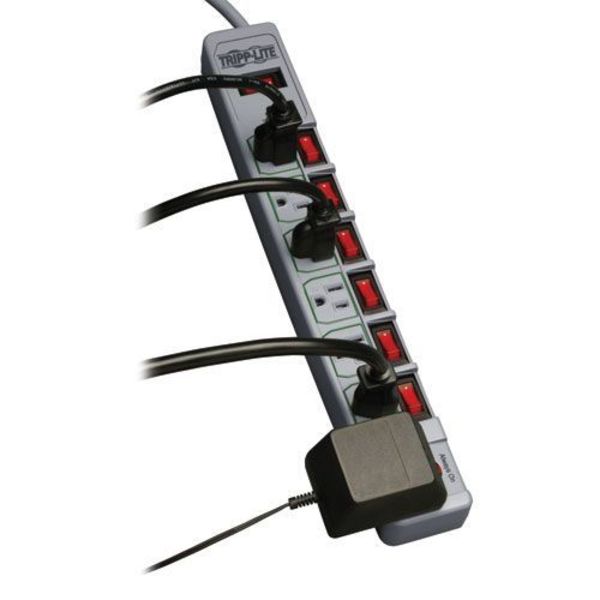

Transformer Accommodation (4) Yes

Unit Dimensions (hwd / in.) 1.400 x 3.400 x 15.000

USB Charging Port 0

Voltage 120VAC

Voltage Compatibility (VAC) 120

Watts 1800W

Width 3 3/8 in
