Home / Surge Protector Strip, 7 Outlet, White

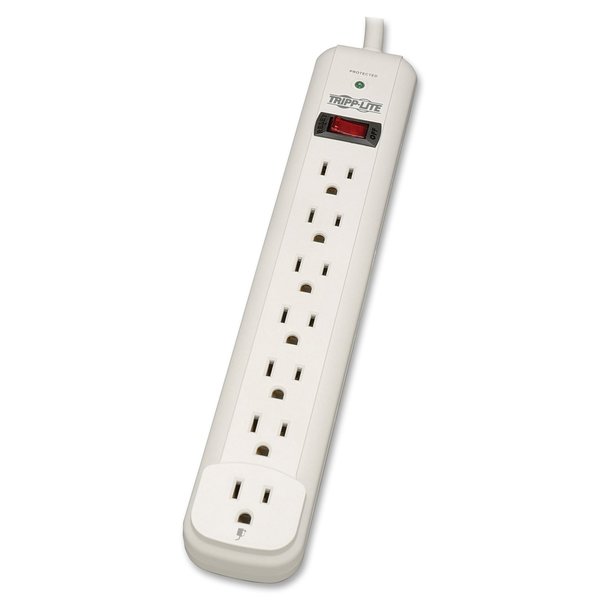

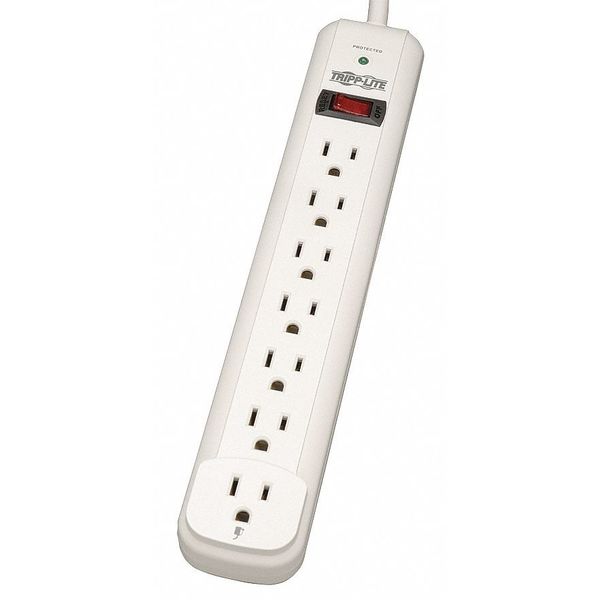

Surge Protector Strip, 7 Outlet, White

SKU
Brand Tripp Lite
Categories
Description Surge Protector Outlet Strip, Total Number of Outlets 7, Color White, Cord Length 25 ft, Communication Port None, Rated Joules 1,080, Application Home and Office, Housing Material Plastic, Max. Amps 15 A, Power Indicator Yes, Receptacle Configuration NEMA 5-15R, Plug Configuration NEMA 5-15P, Wire Size 14 AWG, Number of Transformer Outlets 1, USB Charging Port 0, Medical Facility Use Outside Patient Care Areas (UL 1363), Number of Conductors 3, Voltage 120V AC, Length 11 3/4 in
graingerSKU: 4HHH1, mscSKU: 76414655, zoro_no: G0519312, mongo_id: 65bbe78a3aaddbd5a909f77b

Web Price

$64.99 / each

Qty

Product Details

AC Suppression Joule Rating 1080

AC Suppression Response Time < 1 ns

Amps 15A

Application Home and Office

Assembly Required No

Automatic Shut-Off Yes

Certifications & Standards UL Listed Certification

Circuit Breaker No

Circuit Breaker (amps) 15

Coax Surge Protection No

Color Light Gray

Communication Port None

Cord Length 25 ft.

Country of Origin (subject to change) China

Depth 1-21/64

Diagnostic LED Details Built-in LED confirms suppressor protection present (green) status

Diagnostic LED(s) Yes

EMI / RFI Filtering Up to 20 dB

Features Automatic Shut-Off, Diagnostic LED(s), Integrated Keyhole Mounting Slots

For Use With Desktop, Network Or Home Computing Application Requiring AC Protection

Frequency 50/60 Hz

Frequency Compatibility 50 / 60 Hz

Gauge/Conductor 14/3

Height 1 3/8 in

Housing Color Gray

Housing Material Plastic

Hz_ 50/60 Hz

Includes (7) Safety Covers, Instruction Manual and Warranty Information

Input Cord Color White

Input Cord Details SJT

Input Cord Gauge (AWG) 14

Input Cord Gauge Type 14 gauge; SJT

Input Cord Length (ft.) 25

Input Plug Type NEMA 5-15P

Input Voltage 120 V AC

Length 11 3/4 in

Length (Straight Wireway) 11 11/16 in

Material of Construction Plastic

Max. Amps 15A

Max. Surge Current 72 kA

Maximum Line Current 15 A

Maximum Surge Amps 72000

Medical Facility Use Outside Patient Care Areas (UL 1363)

Medical Grade No

Mounting Holes or Slots Yes

Mounting Style Keyhole

NEC Cord Designation SJT

NEMA Plug Configuration NEMA 5-15P

NEMA Receptacle Configuration (7) NEMA 5-15R

Network (Ethernet) Protection No

Noise Attenuation Up to 20db

Nominal Input Voltage(s) Supported 120V AC

Number of Conductors 3

Number of Outlet Rows 1

Number of Outlets 7

Number of Transformer Outlets 1

Outlet Center Distance 29mm Standard, 33mm Last Standard and Transformer

Outlet Configuration Single Row

Outlet Orientation Single row

Outlet Surge Protection Yes

Outlets Measurement (Center to Center) Distance between standard outlets = 29mm; Distance between last standard outlet and transformer outlet = 33mm

Output Receptacles (7) 5-15R

Output Voltage 120 V AC

Package Contents Protect IT! 7 Outlets Surge Suppressor, TLP725 Surge Suppressor, Instruction manual and warranty information

Package Includes TLP725 Protect It! 7-Outlet Surge Protector, Light Gray Housing;Owner's manual

Package Quantity 1

Plug Configuration NEMA 5-15P

Plug/Connector Type NEMA 5-15P

Power Cord Color Gray

Power Cord/Cable Length 25 ft

Power Handling 1800 VA

Power Indicator Yes

Product Certifications CAN/CSA-C22.2 No. 269.3 (Canada); CAN/CSA-C22.2 No. 308 (Canada); cUL Listed; NOM (Mexico); UL 1449; UL 1363; UL Listed

Product Color Gray

Product Line Protect It!

Product Name Economical AC 7-Outlet Surge Protector

Protection Modes Includes full normal mode (H-N) and common mode (N-G / H-G) line suppression

Protection Type Surge

Rated Joules 1,080

Receptacle Color White

Receptacle Configuration NEMA 5-15R

Receptacles 7 x NEMA 5-15R

Recommended Electrical Service 120V (110-125V)

Right-Angle Plug No

Slot or Hole Mount Measurement (Center to Center) Distance between slots = 151 mm; Distance between slot height = 24 mm

Standards Approvals RoHS, cUL / CSA (Canada), Exceeds IEEE 587 category A&B specifications, NOM (Mexico), UL1363 (Power Tap), UL1449 3rd Edition (AC Suppression)

Surge Energy Rating 1080 J

Switches Combination AC circuit breaker and illuminated on/off power switch

Telephone/Fax Surge Protection No

Total Number of Outlets 7

Trade Designation SJT

Transformer Accommodation (2) Yes

Unit Dimensions (hwd / in.) 1.320 x 2.050 x 11.690

USB Charging Port 0

Voltage 120VAC

Voltage Compatibility (VAC) 120

Watts 1800W

Width 2 in
