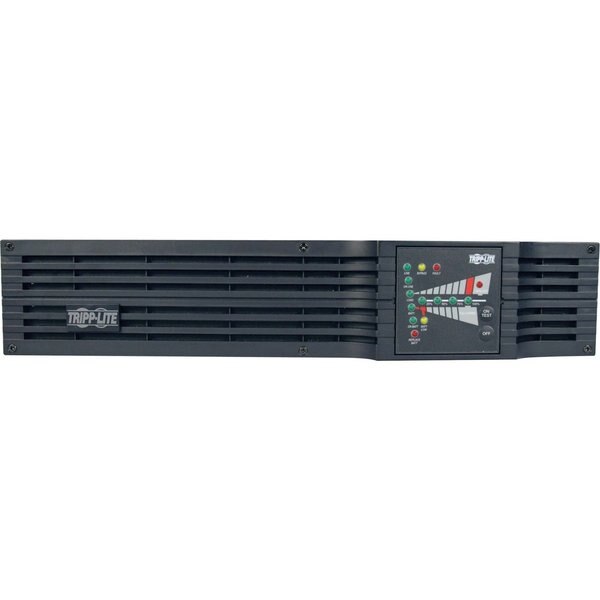

UPS, SmartOnline, 1.5kVA, 1.2kW, SNMP, 2U

SKU
Brand Tripp Lite
Categories
Description UPS,SmartOnline,1.5kVA,1.2kW,SNMP,2U
graingerSKU: , mscSKU: , zoro_no: G5175829, mongo_id: 65bbe95522d7a989a994b717

Web Price

$1,912.49 / each

Qty

Product Details

AC Economy Mode BTU / Hr. (Full Load) 216

AC Economy Mode Efficiency Rating (100% Load) 0.95

AC Mode BTU / Hr. (Full Load) 612

Alarm UPS StartUp, Remote Shutdown, Overload, Power Failure, Low Battery, UPS Fault

Alarm Cancel Operation Power-fail alarm can be silenced using alarm-cancel switch

Audible Alarm Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions

Backup/Run Time (Full Load) 5 Minute

Backup/Run Time (Half Load) 14 Minute

Battery Access Front panel battery access door

Battery Mode BTU / Hr. (Full Load) 667

Battery Mode Heat Dissipation (BTU/Hr) @ Full Load 667

Battery Recharge Rate (Included Batteries) Less than 6 hours from 10% to 80% (typical, full load discharge)

Battery Replacement Description Hot-swappable, user replaceable batteries

Battery Type Valve Regulated Lead Acid (VRLA)

Bypass Switch Automatic

Certifications & Standards UL1778 (USA), CSA (Canada), NOM (Mexico), FCC Part 15 Category A (EMI)

Circuit Breaker Yes

Cold Start (Startup in Battery Mode During a Power Failure) Cold-start operation supported

Communications Cable Micro-USB, USB and DB9 cabling included

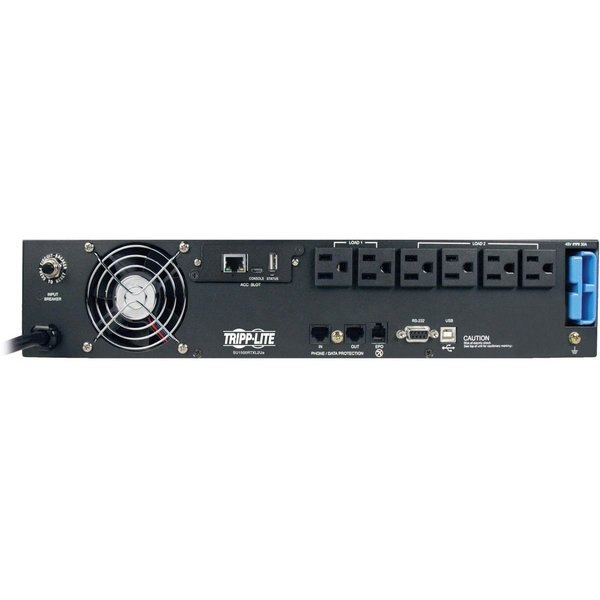

Communications Interface Contact closure; DB9 Serial; EPO (emergency power off); Micro-USB; Pre-installed network card; RJ45 Network; Slot for SNMP/Web interface; USB (HID enabled); USB-A; USB-B

Cooling Method Fan

Cord Length 10 ft

Country of Origin (subject to change) China

Crest Factor 0.125694444444444

Dataline Protection RJ-45, RJ-11

DC System Voltage (VDC) 48

Depth 19

Emergency Power OFF Yes

EMI / RFI AC Noise Suppression Yes

EPO Port RJ11 interface jack with 4-meter cable included. Supports normally open and normally closed EPO systems

Expandable Battery Runtime Extended runtime supported via optional external battery packs

Expandable Runtime Yes

External Battery Pack Compatibility BP48V24-2U (limit 1); BP48V60RT-3U (multi-pack compatible); BP48V27-2US (multi-pack compatible)

Form Factor Rack/Tower

Frequency Compatibility 50 / 60 Hz

Frequency Compatibility Details Output frequency matches input nominal on startup, defaults to 60 Hz on cold-start

Full Load Runtime (min.) 5 min. (1200w)

Half Load Runtime (min.) 14 min. (600w)

Height 3.5

High Availability UPS Features Automatic inverter bypass; Hot swappable batteries

High Voltage Transfer to Battery Power (Setpoint) 150

Hot Swappable Yes

Included Mounting Accessory Description Included 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm)

Individually Controllable Load Banks Yes

Input Circuit Breakers 20A

Input Current 12A

Input Phase Single-Phase

Input Voltage 120 V AC

Installation Form Factors Supported with Included Accessories 4 post 19 inch rackmount

Installation Form Factors Supported with Optional Accessories 2 post rackmount (2POSTRMKITWM); 2-4 post front rail rackmount (UPSHDEARKIT); 4 post rackmount short-depth (4POSTRAILKITWM); Tower (2-9USTAND); Wallmount (2POSTRMKITWM)

Internal UPS Replacement Battery Cartridge RBC94-2U

LED Indicators 14 LEDs indicate line power, online mode, economy/bypass mode, on-battery, overload, battery low, replace battery and fault status information; 4-LED meter displays load and battery charge levels; LED panel rotates for viewing in rack/tower formats. Network Link/Activity (Green): Flashes for network activity. Network Speed (Yellow): 10 Mbps (Flashing), 100 Mbps (On steady). LX Platform Interface Status: Normal Operation (Solid Green); Software Update (Alternating Green/Orange ~1/sec); Factory Reset (Alternating Green/Orange ~2/sec).

Load Capacity 1500 VA/1200 W

Load Management Receptacles Two switchable 5-15R load banks (bank 1 - two outlets, bank 2 - four outlets)

Low Voltage Transfer to Battery Power (Setpoint) 80V (100% load), 65V ( <70% load)

Maximum Operating Temperature 104ÃÂ°F (40ÃÂ°C)

Minimum Required Rack Depth (inches) 22

Minimum Required Rack Depth with External Battery Pack (in.) 26

Minimum Required Rack Depth without External Battery Pack (in.) 22

Network Management SNMP Manageable

Network Management Cards WEBCARDLX

Network Monitoring Port Description Includes pre-installed WEBCARDLX Network Management Card; DB9 port supports RS232 and contact closure communications; Economy-mode setting option is available using PowerAlert software and DB9 Serial cable connection OR installed Network Management Card

Nominal Input Voltage(s) Supported 100V AC; 110V AC; 120V AC

Nominal Output Voltage(s) Supported 100V; 110V; 120V

Nominal Voltage Details 120V default

Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius

Output AC Waveform (AC Mode) Sine wave

Output AC Waveform (Battery Mode) Pure Sine wave

Output Capacity (VA) 1500

Output Capacity (Watts) 1200

Output Capacity Details OVERLOAD CAPACITY: Supports inverter operation up to 105% load continuously, 125% load for 3 minutes; 150% load for 30 seconds and >150% load for 0.5 seconds before switching to BYPASS (when bypass input voltage and frequency are WITHIN bypass limits) or SHUTDOWN (when bypass input voltage or frequency are OUTSIDE bypass limits)

Output kVA Capacity (kVA) 1.5

Output kW Capacity (kW) 1.2

Output Receptacles (6) 5-15R

Output Volt Amp Capacity (VA) 1500

Output Voltage 120 V AC

Output Voltage Regulation (Battery Mode) +/- 2%

Output Voltage Regulation (Economy Line Mode) +/- 10%

Output Voltage Regulation (Line Mode) +/- 2%

Output Watt Capacity (Watts) 1200

Overvoltage Correction 2% output voltage regulation during overvoltages to 150

Package Contents SU1500RTXL2UN UPS with Pre-installed SNMPWEBCARD, Poweralert Software and Cabling, Mounting Hardware For 4 Post Rack Enclosures, Instruction Manual

Package Includes SU1500RTXL2UN UPS with Pre-installed Network Management Card interface;USB, DB9 & EPO Cables;Mounting hardware for 4 post rack enclosures;Instruction manual

Package Quantity 1

Plug/Connector Type NEMA 5-15P

Power Factor 0.8

PowerAlert Software For local monitoring via the UPSÃ¢ÂÂ¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert

Primary Form Factor Rackmount

Primary UPS Depth (mm) 483

Primary UPS Height (mm) 89

Primary UPS Width (mm) 445

Product Certifications CSA (Canada); NOM (Mexico); UL 1778

Product Compliance FCC Part 15 Class A (USA)

Product Line SmartOnline

Product Name SU1500RTXL2UN UPS with Pre-installed SNMPWEBCARD

Product Type Double Conversion Online UPS

Protection Type EMI / RFI, Under Voltage, Brownout, Over Voltage

Rack Height 2U

Rated input current (Maximum Load) 12A

Receptacle Detail 6 x NEMA 5-15R

Recommended Electrical Service 15A 120V

Relative Humidity 0 to 95%, non-condensing

Runtime Full Load (min.) 5 min. (1200W)

Runtime Half Load (min.) 14 min. (600W)

Serial Port Yes

Severe Undervoltage Correction 2% output voltage regulation during undervoltages to 65 (under 70% load only)

SNMP Compatibility SNMP V1, V2c, V3

Software Included Poweralert Software

Status Indicators 14 LEDs indicate line power, online mode, economy/bypass mode, on-battery, overload, battery low, replace battery and fault status information, 4-LED meter displays load and battery charge levels, LED panel rotates for viewing in rack/tower formats

Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

Surge Energy Rating 600 J

Switches 2 switches control off/on power status and alarm-cancel/self-test operation. LX Platform Interface: Recessed reset switch for interface reboot and factory reset

Thermal Dissipation 178.69 W

Total Number of Expansion Slots 1

Transfer Time No transfer time (0 ms.) in online, double-conversion mode

Typical Battery Recharge Time 6 Hour

Undervoltage Correction 2% output voltage regulation during undervoltages to 80

UPS AC Suppression Joule Rating 600

UPS AC Suppression Response Time Instantaneous

UPS Applications Mission Critical Applications

UPS Certifications Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI)

UPS Dataline Suppression 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet

UPS Housing Material Steel

UPS Input Connection Type 5-15P
