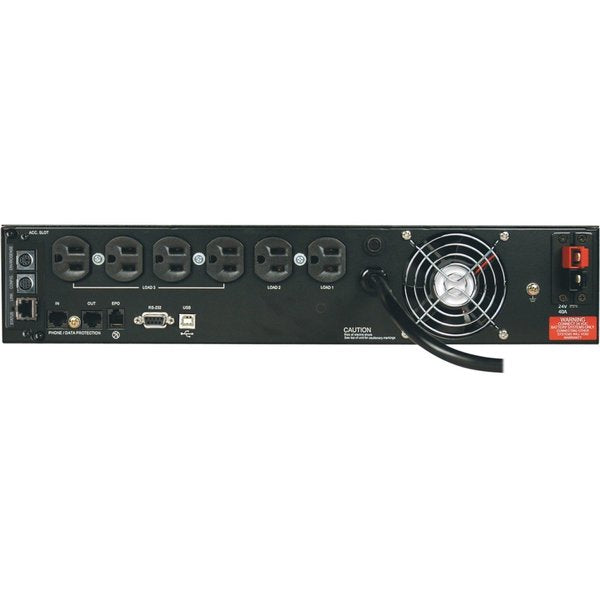

UPS, SmartOnline, 1kVA, 800W, SNMPWEBCARD, 2U

SKU
Brand Tripp Lite
Categories
Description UPS,SmartOnline,1kVA,800W,SNMPWEBCARD,2U

Web Price

$1,612.49 / each

Qty

Product Details

AC Economy Mode BTU / Hr. (Full Load) 114

AC Economy Mode Efficiency Rating (100% Load) 0.96

AC Mode BTU / Hr. (Full Load) 408

AC Mode Efficiency Rating (100% Load) 0.87

Alarm Cancel Operation Power-fail alarm can be silenced using alarm-cancel switch

Audible Alarm Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions

Backup/Run Time (Full Load) 4 Minute

Battery Access Front panel battery access door

Battery Mode BTU / Hr. (Full Load) 444

Battery Mode Heat Dissipation (BTU/Hr) @ Full Load 444

Battery Recharge Rate (Included Batteries) Less than 6 hours from 10% to 80% (typical, full load discharge)

Battery Replacement Description Hot-swappable, user replaceable batteries

Battery Type Valve Regulated Lead Acid (VRLA)

Cold Start (Startup in Battery Mode During a Power Failure) Cold-start operation supported

Communications Cable Micro-USB, USB and DB9 cabling included

Communications Interface Contact closure; DB9 Serial; EPO (emergency power off); Micro-USB; Pre-installed network card; RJ45 Network; Slot for SNMP/Web interface; USB (HID enabled); USB-A; USB-B

Cooling Method Fan

Country of Origin (subject to change) China

Crest Factor 0.125694444444444

DC System Voltage (VDC) 24

Depth 13.5

EMI / RFI AC Noise Suppression Yes

EPO Port RJ11 interface jack with 4-meter cable included. Supports normally open and normally closed EPO systems

Expandable Battery Runtime Extended runtime supported via optional external battery packs

Expandable Runtime Yes

External Battery Pack Compatibility BP24V15RT2U (limit 1); BP24V28-2U (limit 1); BP24V70-3U (multi-pack compatible); BP24V36-2US (multi-pack compatible)

Form Factor Rack/Tower

Frequency Compatibility 50 / 60 Hz

Frequency Compatibility Details Output frequency matches input nominal on startup, defaults to 60 Hz on cold-start

Full Load Runtime (min.) 4.5 min. (800w)

Half Load Runtime (min.) 14 min. (400w)

Height 3.5

High Availability UPS Features Automatic inverter bypass; Hot swappable batteries

High Voltage Transfer to Battery Power (Setpoint) 150

Included Mounting Accessory Description Included 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm)

Individually Controllable Load Banks Yes

Input Circuit Breakers 15A

Input Phase Single-Phase

Input Voltage 100 V AC, 120 V AC, 110 V AC

Installation Form Factors Supported with Included Accessories 4 post 19 inch rackmount

Installation Form Factors Supported with Optional Accessories 2 post rackmount ( 2POSTRMKITWM ); 2-4 post front rail rackmount ( UPSHDEARKIT ); 4 post rackmount short-depth ( 4POSTRAILKITWM ); Tower ( 2-9USTAND ); Wallmount ( 2POSTRMKITWM )

Internal UPS Replacement Battery Cartridge RBC92-2U

LED Indicators 14 LEDs indicate line power, online mode, economy/bypass mode, on-battery, overload, battery low, replace battery and fault status information; 4-LED meter displays load and battery charge levels; LED panel rotates for viewing in rack/tower formats. Network Link/Activity (Green): Flashes for network activity. Network Speed (Yellow): 10 Mbps (Flashing), 100 Mbps (On steady). LX Platform Interface Status: Normal Operation (Solid Green); Software Update (Alternating Green/Orange ~1/sec); Factory Reset (Alternating Green/Orange ~2/sec).

Load Capacity 1000 VA/800 W

Load Management Receptacles Two switchable single-outlet 5-15R load banks

Low Voltage Transfer to Battery Power (Setpoint) 80V (100% load), 65V ( <70% load)

Minimum Required Rack Depth (inches) 17

Minimum Required Rack Depth with External Battery Pack (in.) 16.5

Minimum Required Rack Depth without External Battery Pack (in.) 16.5

Network Management Cards WEBCARDLXE

Network Monitoring Port Description Includes pre-installed WEBCARDLX Network Management Card; DB9 port supports RS232 and contact closure communications; Economy-mode setting option is available using PowerAlert software and DB9 Serial cable connection OR installed Network Management Card

Nominal Input Voltage(s) Supported 100V AC; 110V AC; 120V AC

Nominal Output Voltage(s) Supported 100V; 110V; 120V

Nominal Voltage Details 120V default

Online Mode Heat Dissipation (BTU/Hr) @ Full Load 408

Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius

Output AC Waveform (AC Mode) Pure Sine wave

Output AC Waveform (Battery Mode) Pure Sine wave

Output Capacity (VA) 1000

Output Capacity (Watts) 800

Output Capacity Details OVERLOAD CAPACITY: Supports inverter operation up to 105% load continuously, 125% load for 3 minutes; 150% load for 30 seconds and >150% load for 0.5 seconds before switching to BYPASS (when bypass input voltage and frequency are WITHIN bypass limits) or SHUTDOWN (when bypass input voltage or frequency are OUTSIDE bypass limits)

Output kVA Capacity (kVA) 1

Output Receptacles (6) 5-15R

Output Volt Amp Capacity (VA) 1000

Output Voltage 100 V AC, 120 V AC, 110 V AC

Output Voltage Regulation (Battery Mode) +/- 2%

Output Voltage Regulation (Economy Line Mode) +/- 10%

Output Voltage Regulation (Line Mode) +/- 2%

Output Watt Capacity (Watts) 800

Overvoltage Correction 2% output voltage regulation during overvoltages to 150

Package Contents SmartOnline SU1000RTXL2UN 1kVA Tower/Rack Mountable, PowerAlert Software and Cabling, Mounting Hardware for 4-post Rack Enclosures, Instruction Manual

Package Includes SU1000RTXL2Ua with pre-installed WEBCARDLX interface;USB, DB9 and EPO cabling;Mounting hardware for 4 post rack enclosures;Instruction manual

Package Quantity 1

Power Factor 0.8

PowerAlert Software For local monitoring via the UPSÃ¢ÂÂ¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert

Primary Form Factor Rackmount

Primary UPS Depth (mm) 343

Primary UPS Height (mm) 89

Primary UPS Width (mm) 445

Product Certifications CSA (Canada); UL 1778

Product Compliance FCC Part 15 Class B (USA)

Product Line SmartOnline

Product Name SmartOnline SU1000RTXL2UN 1kVA Tower/Rack Mountable

Product Type Double Conversion Online UPS

Rack Height 2U

Rated input current (Maximum Load) 8.6A

Receptacle Detail 6 x NEMA 5-15R

Recommended Electrical Service 15A 120V

Relative Humidity 0 to 95%, non-condensing

Runtime Full Load (min.) 4.5 min. (800W)

Runtime Half Load (min.) 14 min. (400W)

Severe Undervoltage Correction 2% output voltage regulation during undervoltages to 65 (under 70% load only)

SNMP Compatibility SNMP V1, V2c, V3

Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

Switches 2 switches control off/on power status and alarm-cancel/self-test operation. LX Platform Interface: Recessed reset switch for interface reboot and factory reset

Transfer Time No transfer time (0 ms.) in online, double-conversion mode

Undervoltage Correction 2% output voltage regulation during undervoltages to 80

UPS AC Suppression Joule Rating 510

UPS AC Suppression Response Time Instantaneous

UPS Applications Mission Critical Applications

UPS Certifications Tested to UL1778 (USA); Tested to CSA (Canada); Meets FCC Part 15 Category B (EMI)

UPS Dataline Suppression 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet

UPS Housing Material Steel

UPS Input Connection Type 5-15P

UPS Input Cord Length (ft.) 10

UPS Power Module Dimensions (hwd, in.) 3.5 x 17.5 x 13.5

UPS Type On-Line
