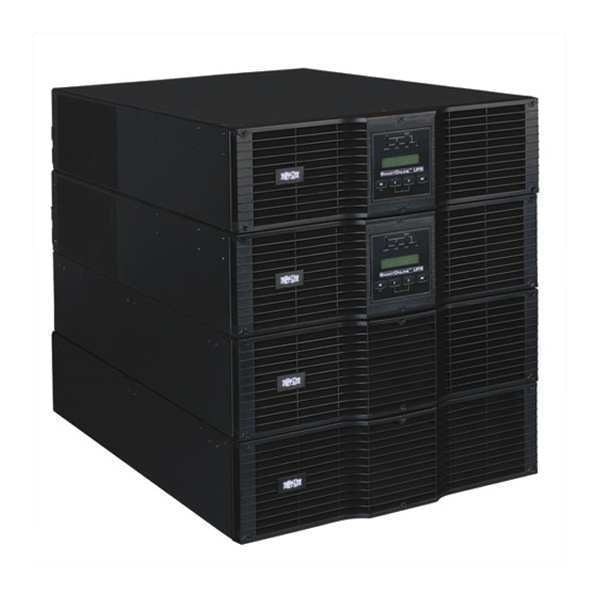

UPS, SmartOnline, 20kVA, 18kW, Bypass, 12U

SKU
Brand Tripp Lite
Categories
Description UPS,SmartOnline,20kVA,18kW,Bypass,12U

Web Price

$17,618.74 / each

Qty

Product Details

AC Mode BTU / Hr. (Full Load) 6830

AC Mode Efficiency Rating (100% Load) 0.9

Additional Information Output Receptacles: 8 x C19

Alarm Cancel Operation Alarm cancel switch

Audible Alarm Unique audible alarms for all major UPS, environmental and power conditions (see manual)

Audible Noise 60 dBA at front side 1 meter

Backup/Run Time (Full Load) 4.30 Minute

Backup/Run Time (Half Load) 12.50 Minute

Battery Mode BTU / Hr. (Full Load) 9185

Battery Mode Heat Dissipation (BTU/Hr) @ Full Load 9185

Battery Recharge Rate (Included Batteries) Less than 6 hours from 10% to 90% (typical, full load discharge)

Battery Replacement Description Hot-swappable, user replaceable external battery packs

Battery Type Valve Regulated Lead Acid (VRLA)

Bypass Switch Automatic, Manual

Cold Start (Startup in Battery Mode During a Power Failure) Cold-start operation supported

Communications Cable USB, DB9 serial and EPO cables included

Communications Interface USB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface

Cooling Method Fans

Country of Origin (subject to change) China

Crest Factor 0.125694444444444

DC System Voltage (VDC) 240

Depth 26

Emergency Power OFF Yes

EMI / RFI AC Noise Suppression Yes

Expandable Battery Runtime Runtime is expandable with external battery packs

Expandable Runtime Yes

Expandable Runtime Description For best results, add external batteries in multiples of two so that both included 10kVA power modules have an equal number and type of connected battery packs

External Battery Pack Compatibility BP240V10RT3U; BP240V787C-1PH

Form Factor Rack/Tower

Frequency Compatibility 50 / 60 Hz; Supports 50 to 60 Hz and 60 to 50 Hz conversion

Frequency Compatibility Details Output frequency matches input nominal on startup; Frequency conversion mode enables conversion of 60Hz to 50Hz or 50Hz to 60Hz (no de-rating)

Front Panel LCD Display Selectable LCD display with scroll and selection buttons enables UPS control and detailed monitoring options; LED/LCD panel rotates for viewing in rack/tower formats; LCD Display supports ENGLISH, FRENCH, GERMAN, ITALIAN, SPANISH and PORTUGUESE (see manual)

Full Load Runtime (min.) 4.3 minutes (18,000 watts)

Half Load Runtime (min.) 12.5 minutes (9000 watts)

Height 5.1

High Availability UPS Features Automatic inverter bypass; Battery Independent Restart; Hot swappable UPS power module; Hot swappable batteries; Manual bypass switch

High Voltage Transfer to Battery Power (Setpoint) 300V

Included Mounting Accessory Description 4 sets of adjustable 4 post rack rails included (one for each included 3U module)

Individually Controllable Load Banks No

Input Current 112.20 A

Input Frequency 60 Hz

Input Phase Single-Phase

Input Voltage 220 V AC

Installation Form Factors Supported with Included Accessories 4 post 19 inch rackmount

Installation Form Factors Supported with Optional Accessories 2 post rackmount (2POSTRMKITHD); Tower (2-9USTAND)

LED Indicators 6 LEDs indicate line power, online mode, bypass mode, on-battery, charger and AC output status; LCD screen offers additional information and control options

Load Capacity 20 kVA

Low Voltage Transfer to Battery Power (Setpoint) 100V

Maximum Device Depth (in.) 32.5

Minimum Required Rack Depth (inches) 37.5

Modular Slots Communications Slot

Network Management SNMP Manageable

Network Management Cards SNMPWEBCARD; TLNETCARD; WEBCARDLX; MODBUSCARD; RELAYIOCARD

Network Monitoring Port Description Applications utilizing any supported network management card option, require the installation of two of the same model network card to install one card per included UPS power module; RELAYIOMINI installation requires removal of panel containing USB ports on each included UPS power module

Nominal Input Voltage(s) Supported 200V AC; 208V AC; 240V AC

Nominal Output Voltage(s) Supported 200V; 208V; 240V

Nominal Voltage Details Voltage selection via front panel LCD interface

Operating Elevation (ft.) 0-3000m (0 to 10,000 ft.)

Operating Elevation (m) 0-3000 m

Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius

Output AC Waveform (AC Mode) Pure Sine wave

Output AC Waveform (Battery Mode) Pure Sine wave

Output Capacity (VA) 20000

Output Capacity (Watts) 18000

Output Capacity Details Supports up to 105% load continuously in double conversion mode, 106 to 125% for 1 minute, 126% to 150% for 30 seconds; Loads over 150% trigger immediate bypass mode operation to support loads directly from mains power; Double conversion mode is automatically restored as load levels are reduced to 95% or less

Output Circuit Breakers Two built-in 30A breakers protect one L6-30R outlet each; Eight built-in 20A breakers protect one C19 outlet each

Output Frequency 60 Hz

Output kVA Capacity (kVA) 20

Output kW Capacity (kW) 18

Output Receptacles (2) L6-30R; (8) C19

Output Volt Amp Capacity (VA) 20000

Output Voltage 230 V AC, 208 V AC, 200 V AC, 240 V AC, 220 V AC

Output Voltage Regulation (Battery Mode) +/- 2%

Output Voltage Regulation (Line Mode) +/- 2%

Output Watt Capacity (Watts) 18000

Overvoltage Correction Corrects overvoltages up to 300V

Package Contents SmartOnline EZ SU20KRT 20kVA Tower/Rack Mountable UPS, 2 x Power Modules, 2 x Battery Packs, L6-30R / C19 parallel PDU with Bypass switch, PowerAlert Software CD, USB Cable, Serial Cable, EPO Cable, 4 x Sets of Adjustable 4 Post Rack Rails

Package Includes Two SU10000RT3UPM UPS power modules;Two BP240V10RT3U battery packs;SUPDMB20K parallel PDU with Bypass switch;4-post rackmount installation kits;USB, DB9 & EPO Cabling

Package Quantity 1

Plug/Connector Type Hardwired

Power Factor 0.9

PowerAlert Software For local monitoring via the UPSÃ¢ÂÂ¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert

Primary Form Factor Rackmount

Primary UPS Depth (mm) 656

Primary UPS Height (mm) 131

Primary UPS Width (mm) 445

Product Certifications IEC 61000; CSA (Canada); UL 1778

Product Compliance FCC Part 15 Class A (USA)

Product Line SmartOnline

Product Name SmartOnline EZ SU20KRT 20kVA Tower/Rack Mountable UPS

Product Series EZ

Product Type Double Conversion Online UPS

Rack Height 12U

Rated input current (Maximum Load) 112.2A (200V), 108A (208V), 102A (220V), 97.6A (230V), 93.6A (240V)

Receptacle Detail 2 x NEMA L6-30R

Recommended Electrical Service 125A @ 200V, 208V, or 240V (L1, L2, G)

Relative Humidity 0 to 95%, non-condensing

Runtime Full Load (min.) 4.3 min. (18kW)

Runtime Half Load (min.) 12.5 min. (9000W)

Serial Port Yes

Software Included PowerAlert Software

Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

Switches 2 Switches control off/on power status and alarm-cancel/self-test operation; 2 additional switches support set and execute scrolling LCD functions; bundled PDU includes bypass switch to enable hot-swap UPS power module replacement

Transfer Time No transfer time (0 ms.) in online, double-conversion mode

Typical Battery Recharge Time 8 Hour

Undervoltage Correction Corrects undervoltages as low as 100V

Unit Dimension Details Includes 2 SU10000RT3UPM UPS/Power modules, 2 BP240V10RT3U Battery packs and SUPDMB20K parallel bypass PDU; Listed weights and dimensions for UPS/Power module and Included battery pack each refer to a single unit; MAXIMUM DEVICE DEPTH specification refers to the whole UPS installed depth with parallel bypass PDU installed

UPS AC Suppression Joule Rating 2565

UPS AC Suppression Response Time Instantaneous

UPS Applications Mission Critical Applications

UPS Certification Details IEC 61000-4-5 1995 B Surge Immunity

UPS Certifications Tested to UL1778 (USA); Tested to CSA (Canada); Meets FCC Part 15 Category A (EMI)

UPS Dimensions Details Includes 2 SU10000RT3UPM UPS/Power modules, 2 BP240V10RT3U Battery packs and SUPDMB20K parallel bypass PDU; Listed weights and dimensions for UPS/Power module and Included battery pack each refer to a single unit; MAXIMUM DEVICE DEPTH specification refers to the whole UPS installed depth with parallel bypass PDU installed

UPS Housing Material Steel

UPS Input Connection Description 3 wire single phase input (L1, L2, G)

UPS Input Connection Type Hardwire

UPS Power Module Dimensions (hwd, in.) 5.14 x 17.5 x 25.82

UPS Type On-Line

USB Yes

Voltage Regulation Description 2% output voltage regulation in standard online, double-conversion mode

WatchDog Compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications

Width 17.5
