Home / UPS, SmartPro, 3kVA, 2.88kW, SNMPWEBCARD, 2U

UPS, SmartPro, 3kVA, 2.88kW, SNMPWEBCARD, 2U

SKU
Brand Tripp Lite
Categories
Description UPS,SmartPro,3kVA,2.88kW,SNMPWEBCARD,2U
graingerSKU: , mscSKU: , zoro_no: G5177089, mongo_id: 65bbe8729a749db82279196e

Web Price

$2,899.99 / each

Product Details

AC Mode BTU / Hr. (Full Load) 409

AC Mode Efficiency Rating (100% Load) 0.96

AC Suppression Response Time Instantaneous

Alarm Remote Shutdown, Overload, Low Battery, UPS StartUp, Power Failure, UPS Fault

Alarm Cancel Operation Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available

Audible Alarm Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions

Audible Noise 45 dBA maximum, front side 1m

Backup/Run Time (Full Load) 3 Minute

Backup/Run Time (Half Load) 10 Minute

Battery Access Front panel battery access door

Battery Mode BTU / Hr. (Full Load) 1736

Battery Mode Heat Dissipation (BTU/Hr) @ Full Load 1736

Battery Recharge Rate (Included Batteries) Less than 5 hours from 10 to 90%

Battery Replacement Description Hot-swappable, replaceable batteries

Battery Type Valve Regulated Lead Acid (VRLA)

Certifications & Standards UL1778, CSA, NOM, FCC Part 15, EMI, TAA Compliant

Circuit Breaker Yes

Cold Start (Startup in Battery Mode During a Power Failure) Cold-start operation supported

Communications Cable Micro-USB, USB, and DB9 cabling included

Communications Interface DB9 Serial; EPO (emergency power off); Pre-installed network card; USB (HID enabled)

Cooling Method Fan

Cord Length 10 ft

Country of Origin (subject to change) Taiwan, Province of China

DC System Voltage (VDC) 48

Depth 19

Emergency Power OFF Yes

EMI / RFI AC Noise Suppression Yes

EPO Port RJ11 interface jack with 4-meter cable included. Supports normally open and normally closed EPO systems

Expandable Battery Runtime Extended runtime supported via optional external battery packs

Expandable Runtime Yes

External Battery Pack Compatibility BP48V24-2U (limit 1); BP48V60RT-3U (multi-pack compatible); BP48V27-2US (multi-pack compatible)

Form Factor Rack-mountable, Rack/Tower

Frequency Compatibility 60 Hz

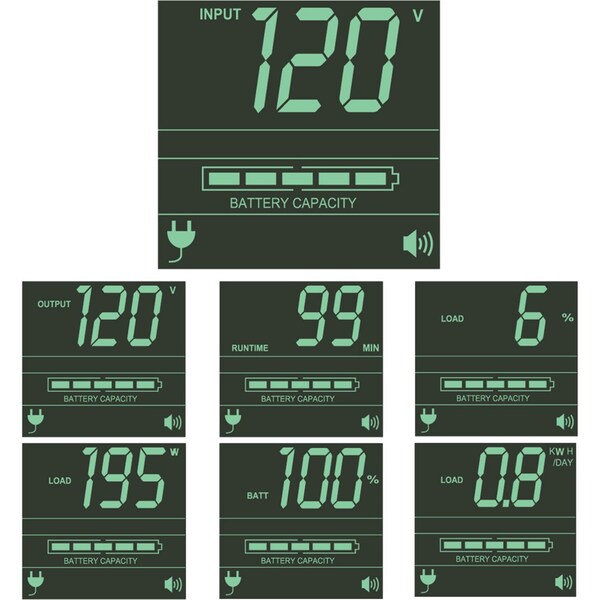

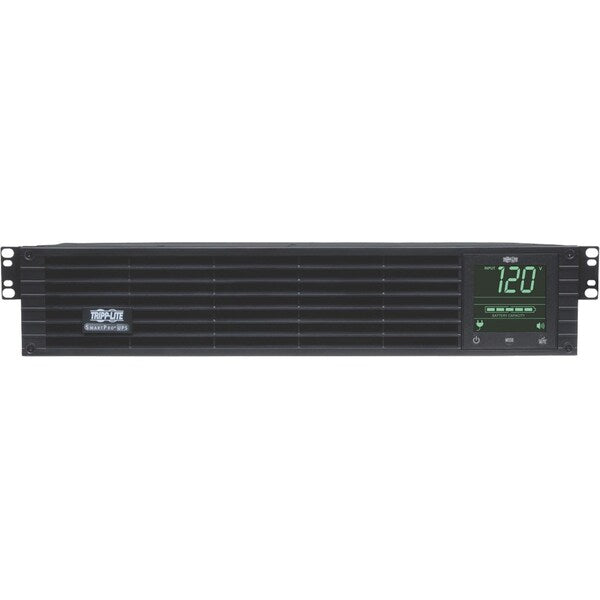

Front Panel LCD Display Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options (see manual for detailed LCD configuration and monitoring options)

Full Load Runtime (min.) 3 min. (2880w)

Half Load Runtime (min.) 10 min. (1440w)

Height 3.5

High Availability UPS Features Hot swappable batteries

High Voltage Transfer to Battery Power (Setpoint) 145

Hot Swappable Yes

Included Mounting Accessory Description Included 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm)

Individually Controllable Load Banks Yes

Input Current 24 A

Input Phase Single-Phase

Input Voltage 120 V AC

Installation Form Factors Supported with Included Accessories 4 post 19 inch rackmount

Installation Form Factors Supported with Optional Accessories 2 post rackmount ( 2POSTRMKITWM ); 2-4 post front rail rackmount ( UPSHDEARKIT ); 4 post rackmount short-depth ( 4POSTRAILKITWM ); Tower ( 2-9USTAND ); Wallmount ( 2POSTRMKITWM )

Internal UPS Replacement Battery Cartridge RBC58-2U

LED Indicators Network Link/Activity (Green): Flashes for network activity. Network Speed (Yellow): 10 Mbps (Flashing), 100 Mbps (On steady). LX Platform Interface Status: Normal Operation (Solid Green); Software Update (Alternating Green/Orange ~1/sec); Factory Reset (Alternating Green/Orange ~2/sec).

Load Capacity 3000 VA/2880 W

Load Management Receptacles Two switchable single outlet 5-15/20R load banks

Low Voltage Transfer to Battery Power (Setpoint) 83

Maximum Operating Temperature 104ÃÂ°F (40ÃÂ°C)

Minimum Required Rack Depth (inches) 22

Minimum Required Rack Depth with External Battery Pack (in.) 26

Minimum Required Rack Depth without External Battery Pack (in.) 24.5

Network Compatibility 100 Mbps (Fast Ethernet)

Network Management SNMP Manageable

Network Management Cards WEBCARDLXE

Network Monitoring Port Description Includes pre-installed WEBCARDLX Network Management Card interface. RJ45 Network port, Micro-USB Configuration port, USB A port supports a variety of Envirosense2 environmental and control modules. See Accessories>Management Hardware section for more information about these modules.

Network Speed 10/100 Mbps

Network UPS Tools Compatibility NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite

Nominal Input Voltage(s) Supported 120V AC

Nominal Output Voltage(s) Supported 110V; 115V; 120V

Nominal Voltage Details 120v nominal output in battery mode

Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius

Output AC Waveform (AC Mode) Pure Sine wave

Output AC Waveform (Battery Mode) Pure Sine wave

Output Capacity (VA) 3000

Output Capacity (Watts) 2880

Output Circuit Breakers Two 20A output breakers protect 4 5-15/20R outlets each

Output Current 20 A

Output kVA Capacity (kVA) 3

Output kW Capacity (kW) 2.88

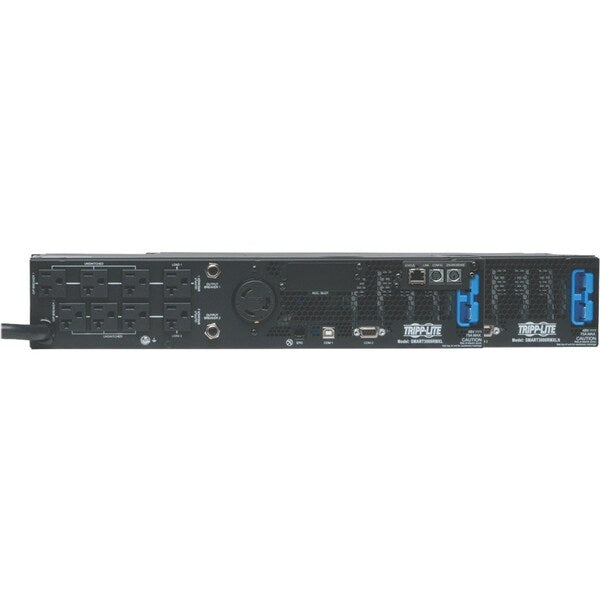

Output Receptacles (8) 5-15/20R; (1) L5-30R

Output Volt Amp Capacity (VA) 3000

Output Voltage 120 V AC

Output Voltage Regulation (Battery Mode) +/-5%

Output Voltage Regulation (Line Mode) +6%, -14%

Output Watt Capacity (Watts) 2880

Overvoltage Correction Input voltages between 127 and 145 are reduced by 12%

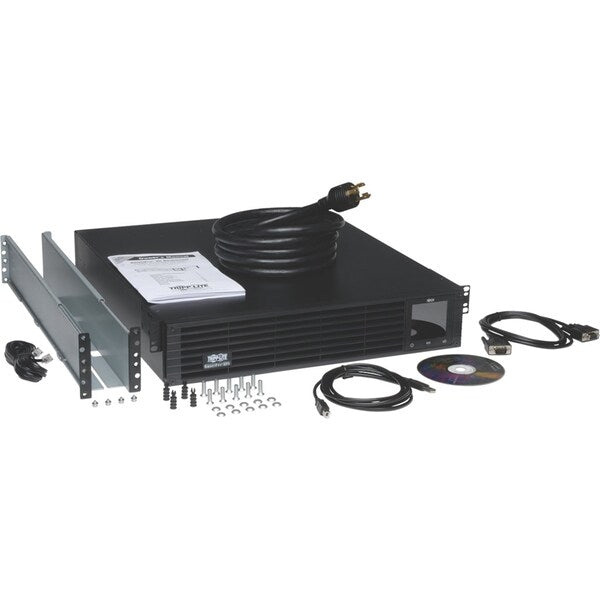

Package Contents SmartPro SM3000RMXLNTAA 3000 VA Tower/Rack-mountable UPS, USB, Serial & EPO Cabling, 4 x Post Rackmount Installation Kit, Instruction Manual

Package Includes SM3000RMXLNTAA UPS system with Pre-Installed WEBCARDLX Network Interface;USB, Serial & EPO cabling;4 post rackmount installation kit;Instruction manual

Package Quantity 1

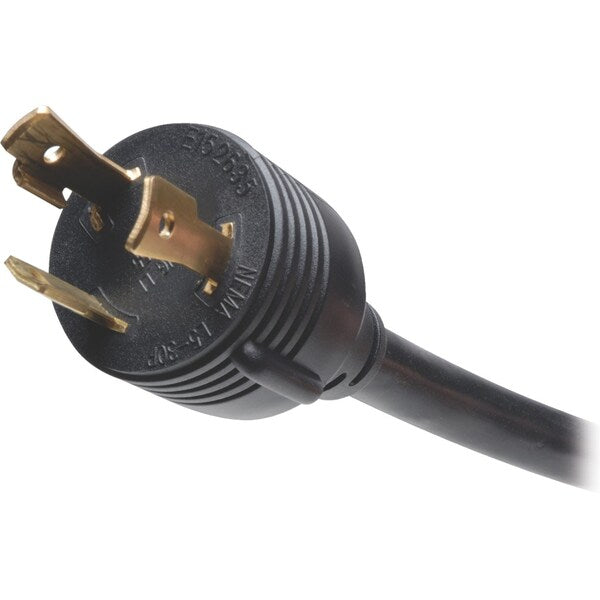

Plug/Connector Type NEMA L5-30P

Power Factor 0.96

PowerAlert Software For local monitoring via the UPSÃ¢ÂÂ¢s built-in Serial or USB communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert. LX Platform Interface: PowerAlert Device Manager 15 (PADM15)

Primary Form Factor Rackmount

Primary UPS Depth (mm) 483

Primary UPS Height (mm) 89

Primary UPS Width (mm) 445

Product Certifications CSA (Canada); NOM (Mexico); UL 1778

Product Compliance FCC Part 15 Class A (USA); Trade Agreements Act (TAA)

Product Line SmartPro

Product Name SmartPro SM3000RMXLNTAA 3000 VA Tower/Rack-mountable UPS

Product Type Line-interactive UPS

Protection Type Black Out, EMI, Over Voltage, Surge, Under Voltage, RFI, Brownout

Rack Height 2U

Rated input current (Maximum Load) 24A

Receptacle Detail 8 x NEMA 5-15/20R, 1 x NEMA L5-30R

Recommended Electrical Service 30A 120V

Relative Humidity 0 to 95%, non-condensing

Runtime Full Load (min.) 3 min. (2880W)

Runtime Half Load (min.) 10 min. (1440W)

Serial Port Yes

Severe Undervoltage Correction Input voltages between 83 and 95 are boosted by 24%

SNMP Compatibility SNMP V1, V2c, V3

Software Included PowerAlert Software

Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

Surge Energy Rating 570 J

Switches 3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions. LX Platform Interface: Recessed reset switch for interface reboot and factory reset.

TAA Compliant Yes

Transfer Time 5 milliseconds (AC to battery mode), 1 millisecond (Battery to AC mode)

Typical Battery Recharge Time 5 Hour

Undervoltage Correction Input voltages between 108 and 96 are boosted by 12%

Unit Dimensions (hwd / in.) 3.500 x 17.500 x 19.000

UPS AC Suppression Joule Rating 570

UPS Applications Large Network

UPS Certifications Meets FCC Part 15 Category A (EMI); TAA Compliant; Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)

UPS Dataline Suppression 1 line TEL/DSL or Ethernet

UPS Housing Material Steel

UPS Input Connection Type L5-30P

UPS Input Cord Length (ft.) 10
