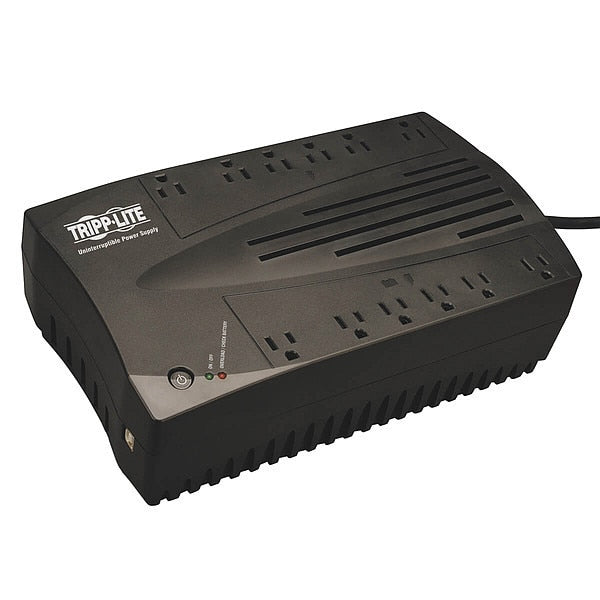

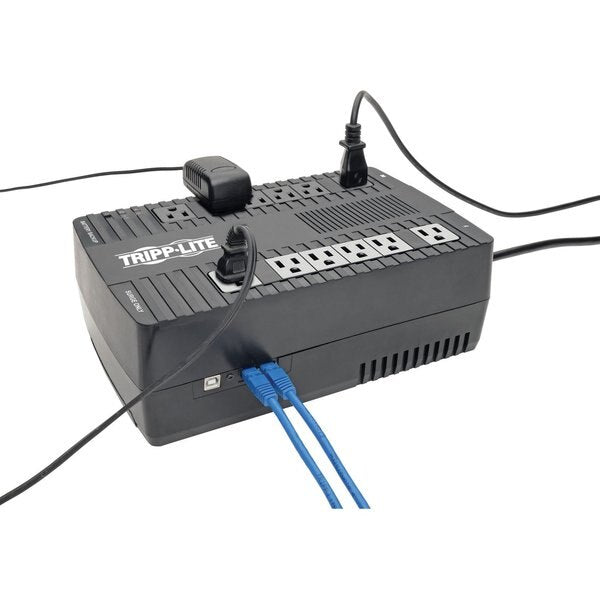

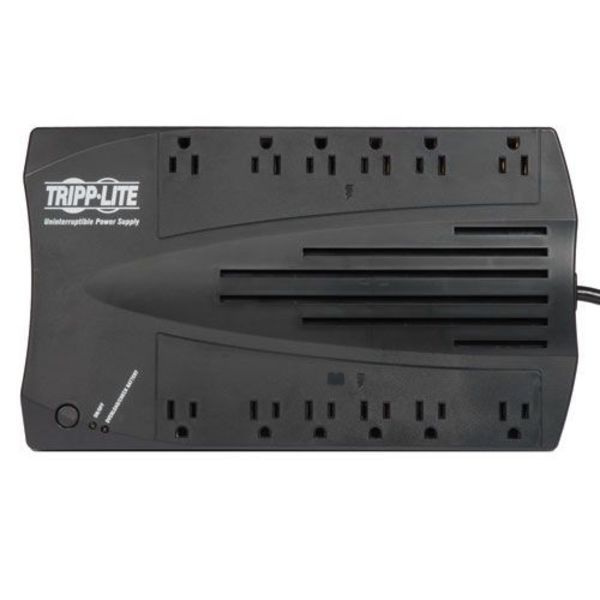

UPS System, Line Interactive, 750VA

SKU
Brand Tripp Lite
Categories
Description UPS System, Line Interactive, Power Rating 750 VA, Wattage 450 W, Input Voltage 120V AC, Output Voltage 115V AC, 120V AC, Backup Time (Half/Full Load) 10 min/3 min, Mounting Desktop/Tower, Outlet Type (6) Surge, (6) UPS/Surge, Number of Outlets 12, Medical Grade No, NEMA Receptacle Configuration 5-15R, NEMA Plug Configuration 5-15P, Automatic Volts Regulation Yes, Fax/Modem Line Protection No, Transfer Time 2 to 4 msec, Width 12 in, Depth 7 in, Height 4 in, Cord Length 6 ft, Display Type LED
graingerSKU: 9FG79, mscSKU: , zoro_no: G4045106, mongo_id: 65bbe7c49a749db8227582de

Web Price

$197.49 / each

Qty

Product Details

AC Mode BTU / Hr. (Full Load) 41

AC Mode Efficiency Rating (100% Load) >96%

Alarm Battery Backup, Low Battery, Overload, Replace Battery, Fault

Application/Usage Printer, Home Theater, Home/Office, Router, TV, Digital Signage, Security System, ATM, Media Center, Computer, Blu-ray Player, Gaming Console

Assembly Required No

Audible Alarm UPS remains silent in battery backup mode; Alarm sounds only to report low-battery, fault, overload and replace-battery conditions

Automatic Volts Regulation No

AVR Yes

AVR Range Boost +18% / Buck -15%

Backup Time (Half/Full Load) 10 min/3 min

Backup/Run Time (Full Load) 3 Minute

Backup/Run Time (Half Load) 11 Minute

Battery Access Battery access door

Battery Recharge Rate (Included Batteries) 8 hours (10% to 90%)

Battery Replacement Description Replaceable internal batteries (see manual)

Battery Type Valve Regulated Lead Acid (VRLA)

Certifications & Standards Energy Star

Cold Start (Startup in Battery Mode During a Power Failure) Cold-start operation supported

Communications Cable USB interface cable included

Communications Interface USB (HID enabled)

Cord Length 6 ft

Country of Origin (subject to change) Viet Nam

Dataline Protection RJ-11

DC System Voltage 12 V DC

DC System Voltage (VDC) 12

Depth 7 in

Display Type LED

EMI / RFI AC Noise Suppression Yes

EMI/RFI Noise Filter Yes

Energy Saving Greater than 95% efficiency - GREEN UPS

Expandable Runtime No

Fax/Modem Line Protection No

Footnotes 4

Form Factor Ultra-compact Desktop/Tower/Wall Mount

Frequency Compatibility 50 / 60 Hz

Full Load Runtime (min.) 3 min. (450w)

Green Environmental Attribute Product Contributes To Reducing Energy Consumption

Grounding Details Includes side panel grounding lug

Grounding Lug Includes side panel grounding lug

Half Load Runtime (min.) 11 min. (225w)

Height 4 in

High Availability UPS Features Battery Independent Restart

High Voltage Transfer to Battery Power (Setpoint) 145

Hz_ 60 Hz

Includes USB cable

Individually Controllable Load Banks No

Input Circuit Breakers 10A

Input Connection 6 ft Cord with NEMA 5-15P Plug

Input Current 12 A

Input Frequency 60 Hz

Input Phase Single-Phase

Input Voltage 120VAC

Input Voltage - UPS Systems 120V AC

Installation Form Factors Supported with Included Accessories Tower; Ultra-compact desktop; Wallmount

Internal UPS Replacement Battery Cartridge RBC51

LED Indicators 2 Status LEDs; GREEN indicates power status and operating mode / RED indicates battery-low, overload, replace-battery and fault conditions

Load Capacity 750 VA/450 W

Low Voltage Transfer to Battery Power (Setpoint) 89

Maximum Operating Elevation 10000 ft

Maximum Operating Temperature 104ÃÂ°F (40ÃÂ°C)

Medical Grade No

Mounting Desktop/Tower

Mounting - UPS Systems Desktop/Tower

NEMA Plug Configuration 5-15p

NEMA Receptacle Configuration 5-15R

Nominal Input Voltage(s) Supported 120V AC

Nominal Output Voltage(s) Supported 110V; 115V; 120V

Nominal Voltage Details 120v nominal output in battery mode

Number of Battery & Surge Outlets 6

Number of Outlets 12

Number of Surge-only Outlets 6

Operating Elevation (ft.) Up to 10,000 ft.

Operating Elevation (m) Up to 3000m

Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius

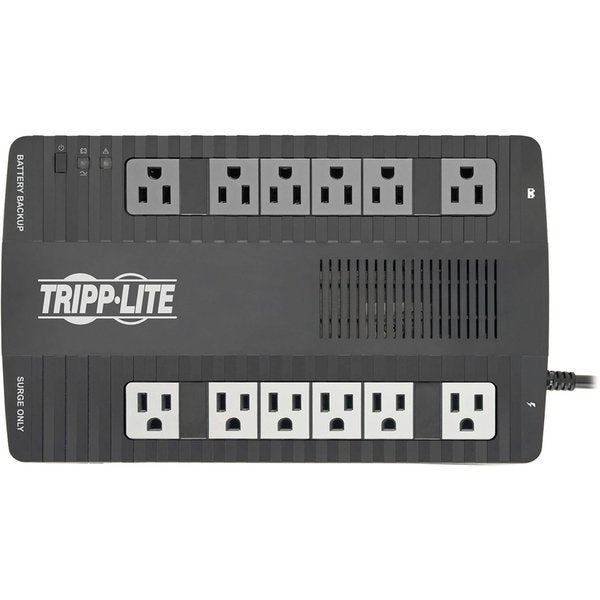

Outlet Type (6) Surge, (6) UPS/Surge

Outlet Type - UPS Systems (6) Surge, (6) UPS/Surge

Output AC Waveform (AC Mode) Pure sine wave

Output AC Waveform (Battery Mode) PWM sine wave

Output Capacity (VA) 750

Output Capacity (Watts) 450

Output Frequency 60 Hz

Output Receptacles (12) 5-15R

Output Volt Amp Capacity (VA) 750

Output Voltage 115V AC

Output Voltage - UPS Systems 115V AC, 120V AC

Output Voltage Regulation (Battery Mode) 120V (ÃÂ±10%)

Output Voltage Regulation (Line Mode) 120V (+6%/-12%)

Output Watt Capacity (Watts) 450

Overvoltage Correction Input voltages between 128 and 145 are reduced by 15%

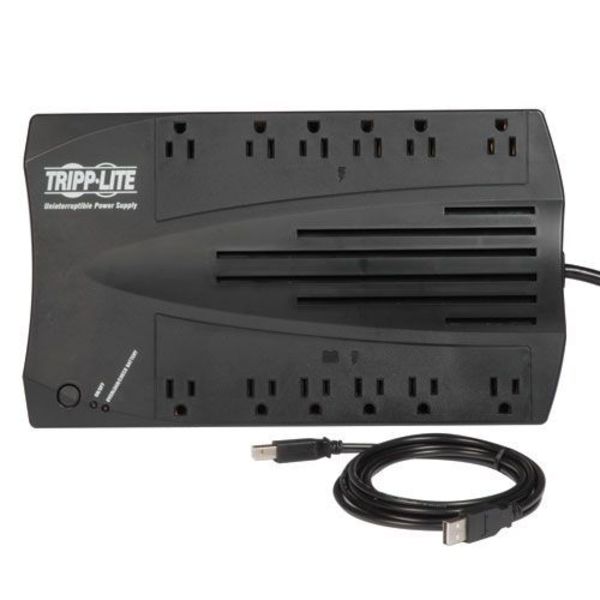

Package Contents AVR 750VA Desktop UPS, USB cable, Instruction manual

Package Includes AVR750U 750VA 450W 120V Line-Interactive UPS with 12 Outlets;USB cable;Owner's manual

Package Quantity 1

Phase 1

Plug/Connector Type NEMA 5-15P

Ports USB (HID enabled)

Power Rating 750VA

PowerAlert Software For local monitoring via the UPSÃ¢ÂÂ¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert

Primary Form Factor Desktop

Primary UPS Depth (mm) 305

Primary UPS Height (mm) 105

Primary UPS Width (mm) 190

Product Certifications RETIE (Colombia); CSA (Canada); NOM (Mexico); UL 1778

Product Color Black

Product Compliance FCC Part 15 Class A (USA)

Product Name AVR 750VA Desktop UPS

Product Series AVR

Product Type Line-interactive UPS

Rated input current (Maximum Load) 10A

Receptacle Detail 12 x NEMA 5-15R

Recommended Electrical Service 15A 120V

Relative Humidity 0 to 90%, non-condensing

Replaceable Battery Yes

Runtime Full Load (min.) 3 min. (450W)

Runtime Half Load (min.) 11 min. (225W)

Special Features USB Port And Poweralert Software Enables Unattended Shutdown In Case Of Extended Power Failure

Standards CSA, FCC Part 15 Category B (EMI), NOM, UL 1778

Status Indicators 2 Status LEDs; GREEN indicates power status and operating mode / RED indicates battery-low, overload, replace-battery and fault conditions

Storage Temperature 5ÃÂ°F (-15ÃÂ°C) - 113ÃÂ°F (45ÃÂ°C)

Storage Temperature Range +5 to +113 degrees Fahrenheit / -15 to +45 degrees Celsius

Surge Energy Rating 316 J

Switches Power off/on switch

Transfer Time 2 to 4 msec

Typical Battery Recharge Time 9 Hour

Undervoltage Correction Input voltages between 89 and 108 are boosted by 18%

UPS AC Suppression Joule Rating 316

UPS AC Suppression Response Time Instantaneous

UPS Applications Home/Office Desktop; Audio/Video; Retail/Point of Sale; Hospitality

UPS Certification Details UL1778: 2014 5th EDITION; CAN/CSA-C22.2 NO. 107.3:2014 3rd EDITION; FCC CLASS A; FCC Part 68 Approved (#5WSWP01B005); Industry Canada Approved (#3449A-005, REN0.1B); RETIE (Colombia)

UPS Certifications Meets FCC Part 15 Category A (EMI); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)

UPS Dataline Suppression 1 line TEL/DSL or Ethernet

UPS Dataline Suppression Details Set of two 8 position RJ connectors protect either a single 10BaseT connection (pins 1,2,3 & 6; 7.5V clamping) or a single TEL/DSL connection (pins 4-5; 260V clamping)

UPS Housing Material ABS

UPS Input Connection Type 5-15P

UPS Input Cord Length (ft.) 5

UPS Output Receptacles (Surge Suppression Only) 6 UPS outlets, 6 surge-only outlets

UPS Power Module Dimensions (hwd, in.) 4.14 x 7.48 x 12

UPS Type Line Interactive

USB Yes

USB (HID Compliant) Port Yes

VA Rating - UPS Systems 750.0 VA

Voltage Regulation Description Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 89 to 145

WatchDog Compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications

Wattage 450 W
