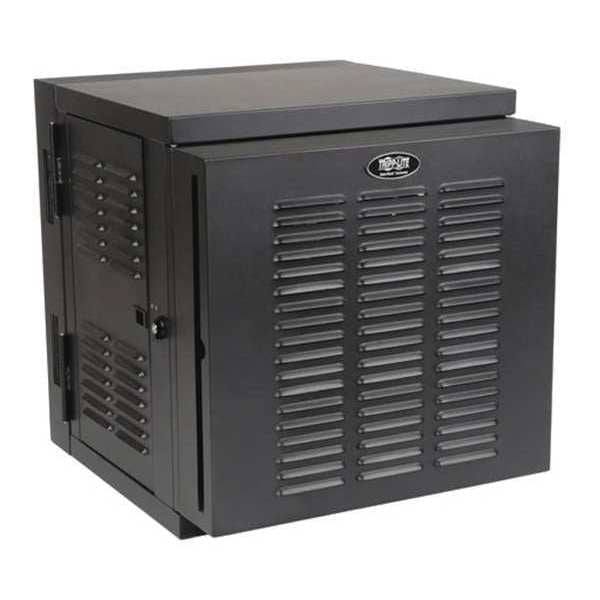

WM Rack, 12U, Hinged, NEMA, Heavy Duty

SKU
Brand Tripp Lite
Categories
Description WM Rack,12U,Hinged,NEMA,Heavy Duty

Web Price

$1,351.24 / each

Qty

Product Details

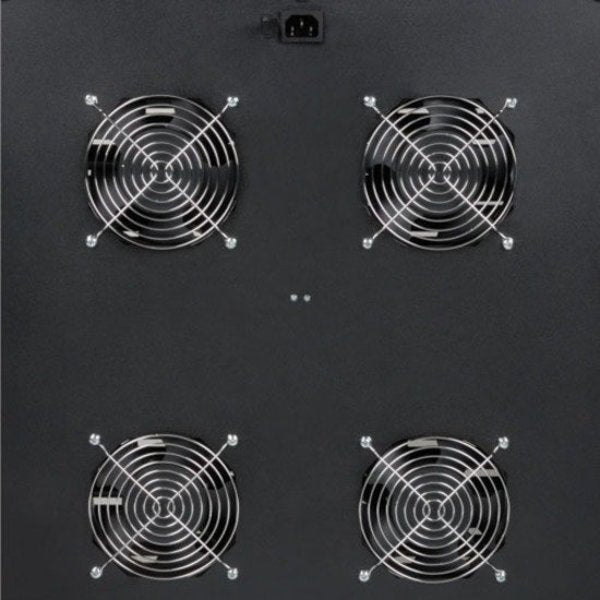

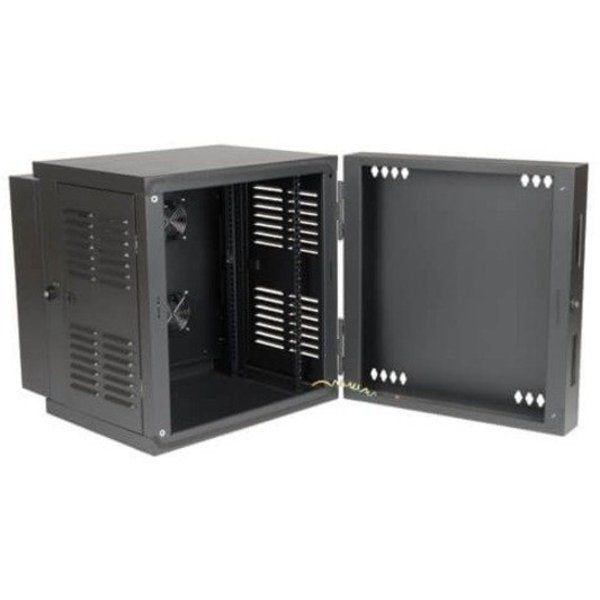

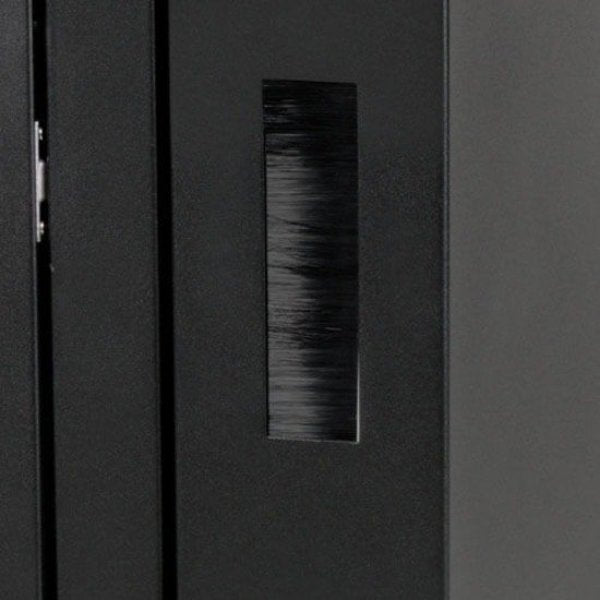

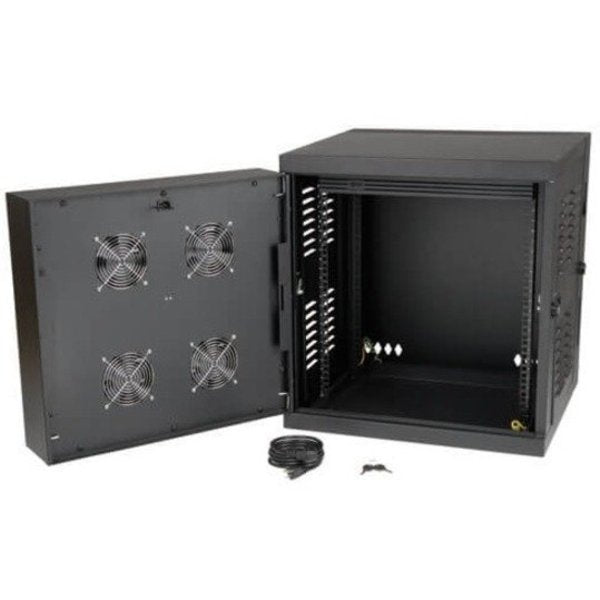

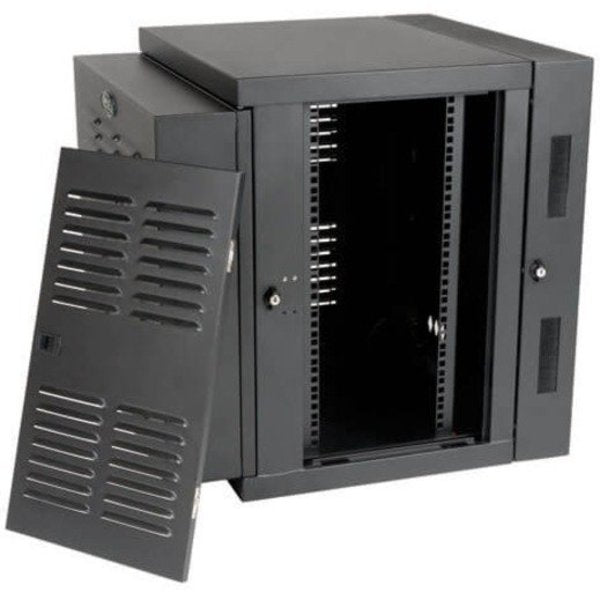

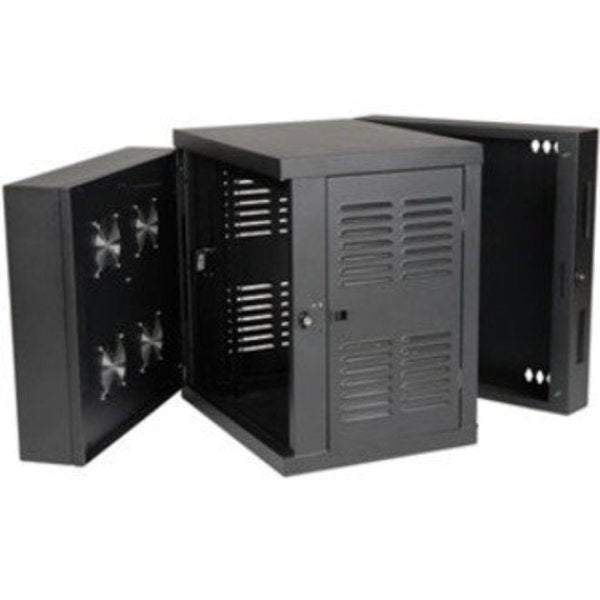

Additional Information Hinged cabinet swings away from wall bracket for easy equipment and cable access, 4 Self-sealing cable ports allow cable access while maintaining dust and moisture resistance, 4 Large, high-performance fans in front door that pull air through the enclosure, from front to rear, Built-in removable dust filter that can be replaced with standard furnace filters, Front door and side panels have ventilating louvers and a sealing gasket around the door frames, Adjustable mounting depths from 3 to 20.5 inches, NEMA 12(IP54) protection rating allowing protection from falling dirt, dust, drips, splashes and accidental contact with personnel, Front and Back door frames, Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) complianceApprovals: EIA-310-E, IEC 60297-3-100, DIN 41494, UL 60950, IP20 Protection Rating

Approvals EIA-310-E, IEC 60297-3-100, IP54 Protection Rating, RoHS

Assembly Required No

Color Black

Country of Origin (subject to change) China

Depth 21.6

Device Compatibility Patch Panel; Network Switch; UPS

Factory Preset Rack Depth (in.) 10.42

Form Factor Wall Mountable

Grounding Details Front and Back door frames

Grounding Lug Front and Back door frames

Height 25

Input Cord Length (ft.) 6

Input Plug Type NEMA 5-15P

Maximum Device Depth (in.) 20.5

Minimum Device Depth (in.) 3

Nominal Input Voltage Description 120V 50/60 Hz

Nominal Input Voltage(s) Supported 120V AC

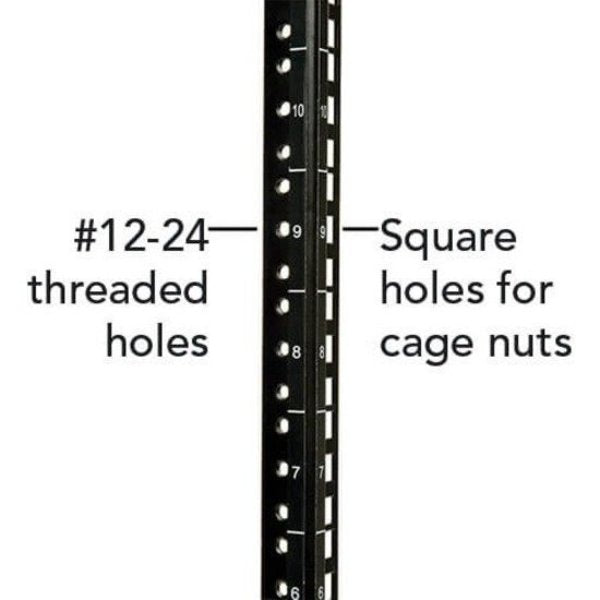

Number of Vertical Mounting Rails 4

Package Contents SmartRack SRW12USNEMA Rack Cabinet, 20 x M6 Cagenuts, 20 x M6 Screws, 20 x Washers, 2 x Keys, 1 x Removable/Replaceable Dust Filter, Owner's Manual

Package Includes SRW12USNEMA SmartRack 12U Switch-Depth Wall-Mount Rack Enclosure Cabinet;(20) M6 screws;(20) M6 cage nuts;(20) M6 washers;Dust filter;AC power cord, 6 ft.;(2) Keys;Owner's manual

Package Quantity 1

Product Color Black

Product Compliance EIA/ECA-310-E

Product Line SmartRack

Product Name SmartRack SRW12USNEMA Rack Cabinet

Product Type Rack Cabinet

Rack Depth Shallow

Rack Height 12U

Rack Type Enclosure

Rack Width 19

Static/Stationary Weight Capacity 200 lb

Unit Dimensions (hwd / in.) 25.000 x 23.630 x 21.600
