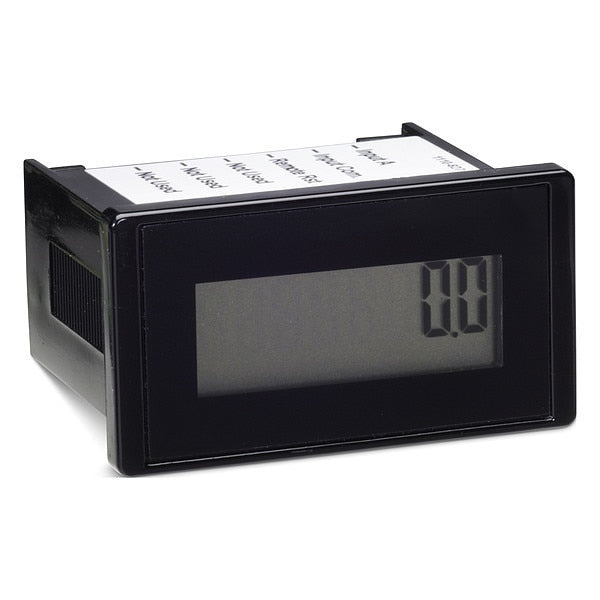

Counter

SKU
Brand Trumeter
Categories
Description Counter, Number of Digits 8, LCD Display, Character Height 0.32 in, Max. Counts per Second 40 Low Speed Mode, 500 High Speed Mode, Input Signal DC Voltage: -0.5VDC to 30VDC Absolute Voltage Range, 3VDC VIH, 1VDC VIL, High Voltage AC/DC: 300VAC/VDC Absolute Voltage Range, 10VDC/20VAC VIH, 3VDC/VAC VIL, Mounting Panel with Clip, Diameter Not Applicable, Height 1.1 in, Width 2 in, Power Required Battery, Min. On/Off Pulse 12.5 msec (Off), 12.5 msec (On), Reset Type Remote
graingerSKU: null, mscSKU: null, zoro_no: G0658710, mongo_id: 65bbe6ce3aaddbd5a9054f33

Web Price

$60.69 / each

Qty

Product Details

Accuracy 100%

Certifications CE, IP66, NEMA 4 & 12, ROHS, UL, WEEE

Character Height 0.32 in

Connector Type Terminal Block

Counter Type Totalizing Counter

Country of Origin (subject to change) Malaysia

Diameter Not Applicable

Digits 8 Digits

Display LCD

Fits 1/32 DIN

Height 1.1 in

Housings 1/32nd DIN

Includes Reflective Display with Seven Icons; Switch (Dry Contact); Three Redi-Alerts

Input 10-300V DC, 20-300V AC, 3 - 30V DC, Dry Contact Switch

Input Signal DC Voltage: -0.5VDC to 30VDC Absolute Voltage Range, 3VDC VIH, 1VDC VIL, High Voltage AC/DC: 300VAC/VDC Absolute Voltage Range, 10VDC/20VAC VIH, 3VDC/VAC VIL

IP Rating IP66

Max. Counts per Second 40 Low Speed Mode, 500 High Speed Mode

Min. On/Off Pulse 12.5 msec (Off), 12.5 msec (On)

Mounting Panel with Clip

NEMA Rating 12, 4

Number of Digits 8

Package Quantity 1

Power Required Battery

Power Type Battery Powered

Reset Option Manual Reset, Remote Reset

Reset Type Remote

Special Features Optional Front Panel Programming for Flexible, Optional Redi-Alert Functions: 3 Redi-Alerts are Available with Front Panel Programming Option, Redi-Alert or Preset Functionality

Standards CE Approved, RoHS, UL, WEEE

Width 2 in
