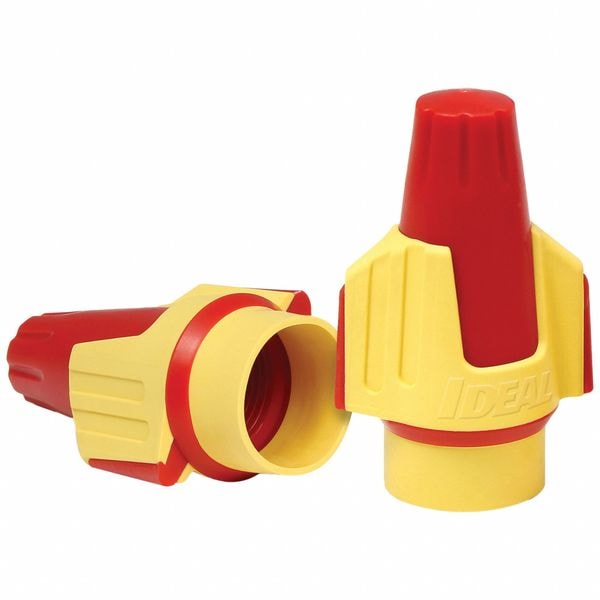

Twist On Wire Connector, Red/Yellow, PK400

SKU
Brand Twister
Categories
Description Twist On Wire Connector, Color Red/Yellow, For Conductor Material Copper, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 1,000 V, Minimum Wire Combination (2) 18 AWG, Maximum Wire Combination (4) 10 AWG, Contact Finish Zinc, Contact Material Steel, UL 94 Flammability Rating V-2, Maximum Conductors 4, Standards CSA Certified, UL Listed, Wire Connector Style Wing, Fill Material Polypropylene, Maximum Single Wire Size 8 AWG, Minimum Single Wire Size 22 AWG
graingerSKU: 798LL2, mscSKU: , zoro_no: G906621436, mongo_id: 65bbe8bc22d7a989a9910c37

Web Price

$77.24 / each

Qty

Minimum order: 5

Product Details

Color Red/Yellow

Contact Finish Zinc

Contact Material Steel

Country of Origin (subject to change) United States

Fill Material Polypropylene

For Conductor Material Copper

For Wire Size 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG, 8 AWG

High Temperature Application No

Maximum Conductors 4

Maximum Operating Temperature 221 Degrees F

Maximum Single Wire Size 8 AWG

Maximum Voltage 1,000 V

Maximum Wire Combination (4) 10 AWG

Minimum Single Wire Size 22 AWG

Minimum Wire Combination (2) 18 AWG

Package Quantity 400

Special Features Expanding Square-Wire Spring and Polypropylene Shell Deliver a Secure Connection Every Time, Widest Wire Range of any Multi-Colored Wire Connectors in the Industry

Standards CSA Certified, UL Listed

Twist-On Wire Size Ranges 22 AWG - 8 AWG

UL 94 Flammability Rating V-2

Wire Connector Style Wing
