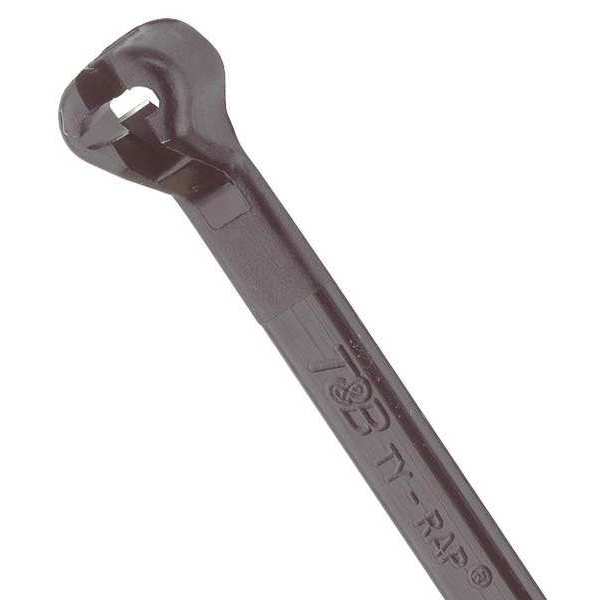

14.5" L Miniature Cable Tie BK PK 100

SKU
Brand Ty-Rap
Categories
Description Cable Tie, Standard, Actual Length 14.5 in, Width 0.14 in, Nominal Length 14 1/2 in, Locking Style Stainless Steel Barb, Color Black, Basic Material - Cable Tie Nylon, Tensile Strength 30 lb, Halogen-Free, Plenum Rated, UV Light Resistant, Weather Resistant, Miniature, Nominal Max. Bundle Dia. 4 in, Temp. Range -40 Degrees to 185 Degrees F, Number of Straps 1, Flame Retardant No, Metal Detectable No, Outdoor Use Yes, Plenum Rated Yes, UL Type 21, Thickness 0.04 in, Max. Bundle Dia. 4.09 in
graingerSKU: 3KG98, mscSKU: , zoro_no: G1184443, mongo_id: 65bbe76f9a749db82273a318

Web Price

$60.69 / each

Qty

Product Details

Actual Length 14.5 in

Approximate Length 14-1/2

Approximate Length - Cable Tie 14-1/2

Band closure Steel nose

Band width 3.6 mm

Basic Material Nylon

Basic Material - Cable Tie Nylon

Bundle Diameter 0.08 to 4.02 in , 2 to 102 mm

Cable Tie Duty Miniature

Cable Tie Properties Halogen-Free, Plenum Rated, UV Light Resistant, Weather Resistant

Cable Tie Style Standard

Color Black

Color - Cable Tie Black

Country of Origin (subject to change) Hungary

Design Standard

Design - Cable Tie Standard

Features Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time.; Because there are no notches, Ty-Rap ties provide an infinite number of locking positions while fastening the tie at the precise bundle diameter needed.; The No-Slip Tail provides easy grip during tensioning. Ty-Rap ties feature a unique friction surface designed to reduce slippage during installation.; Smooth, notchless body reduces stress concentration points under tension, making the tie stronger and lower profile than notched body ties. Ribbed and Stippled body grips the bundle and prevents slippage. Rounded edges protect insulation, preventing sharp edges from damaging cables.; Application Tools: ERG50, WT1-TB

Flame Retardant No

Indoor/Outdoor Indoor, Outdoor

Length 14.5

Length - Cable Tie 14.50

Length belt/tape/tie 14.4 inch

Locking Style Stainless Steel Barb

Material Nylon 6/6

Max. Bundle Dia. 4.00

Max. bundle diameter 102 mm

Max. Temp. Rating 220 Degrees F

Metal Detectable No

Min. holding force 180 N

Min. Temp. Rating -76 Degrees F

Model Internal toothing

Nominal Length 14 1/2 in

Nominal Max. Bundle Dia. 4 in

Number of Straps 1

Outdoor Use Yes

Package Quantity 100

Plenum Rated Yes

Resists Weather and UV

Special Features Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time.

Standards 1565, OPC 23190

Surface protection Untreated

Temp. Range -40 Degrees to 185 Degrees F

Tensile Strength 30 lb.

Tensile Strength - Cable Tie 30 lb.

Text strip None

Thickness 0.04

Tie thickness 0.04 inch

Tool Code A

Type High Performance

UL Type 21

Width 0.14
