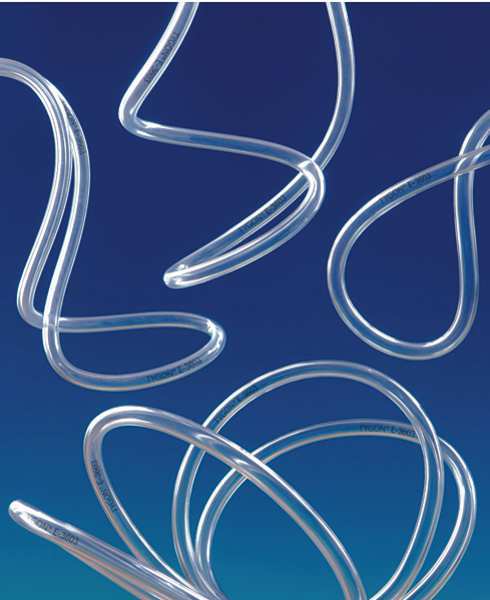

Tubing, 8mm I.D., 15m, Clear, Flexible

SKU
Brand Tygon
Categories
Description Tubing, Application Beverages, Color Clear, Food Application Food and Beverage, Hardness Shore A 56, Inside Diameter 8 mm, Material TPE, Material Trade Name Tygon S3, Material Trade Number E-3603, Maximum Operating Pressure 20 psi @ 73 Degrees F, Maximum Operating Temperature 165 Degrees F, Maximum Vacuum Pressure 20.98 in Hg, Outside Diameter 12 mm, Overall Length 15 m, PEX Type Not Applicable, Resistance Properties Abrasion Resistant, Crack Resistant, Flex-Fatigue Resistant, Tear Resistant
graingerSKU: 22XH91, mscSKU: , zoro_no: G9082044, mongo_id: 65bbea1022d7a989a9991a5a

Web Price

$196.24 / each

Product Details

Application Beverages

Autoclavable Yes

Bend Radius 29 mm

Brand Material Tygon E-3603

Clarity Clear

Color Clear

Country of Origin (subject to change) United States

Does Not Contain BPA, DEHP, Phthalates

Elongation 425%

Features Non-Contaminating, Non-Toxic, Smooth Inner Wall

Fitting Compatibility Barbed

Flexibility Flexible

Flow Application Analytical Instruments, Biopharmaceutical, Condensers, Desiccators, Food and Beverage, Gas and Drain Lines, Incubators, Vacuum Pumps

Food Application Food and Beverage

For Environment Chemical

For Fluid Type Corrosive Chemicals

Hardness Shore A 56

Industry Application Laboratory

Inside Dia. 8 mm

Inside Diameter 8 mm

Material TPE

Material Brand TYGON Tygon S3 E-3603

Material Trade Name Tygon S3

Material Trade Number E-3603

Max. Pressure 1.4 psi

Maximum Operating Pressure 20 psi @ 73 Degrees F

Maximum Operating Temperature 165 Degrees F

Maximum Vacuum Pressure 20.98 in Hg

Minimum Operating Temperature -51 Degrees F

Outside Dia. 12 mm

Outside Diameter 12 mm

Overall Length 15 m

Package Quantity 1

PEX Type Not Applicable

Reinforcement Not Reinforced

Resistance Properties Abrasion Resistant, Crack Resistant, Flex-Fatigue Resistant, Tear Resistant

SAE or Metric Metric

Standards 10/2011/EU, 1907/2006/EC, 1935/2004/EC, ASTM D1004, ASTM D1599, ASTM D2240, ASTM D395 Method B, ASTM D412, ASTM D570, ASTM D746, ASTM D792, Japan Food Sanitation Law 370/1959, NSF 51, US FDA, USP 88 Class VI

Stripe Color No Stripe

System of Measurement Metric

Temp. Range -51 Degrees to 165 Degrees F

Tensile Strength 1,750 psi

Tradename Material Tygon S3 E-3603

Tube Bend Radius 29 mm

Tube Color Clear

Tube Form Coil

Tube Hardness Shore A: 56

Tube Length 49 ft

Tube Material PVC

Tubing Hardness Ultra Soft (Less than A60)
