Home / 3-Phase General Purpose Motor, 1 1/2 HP, 182TC Frame, 208-230/460V AC Voltage, 1,200 Nameplate RPM

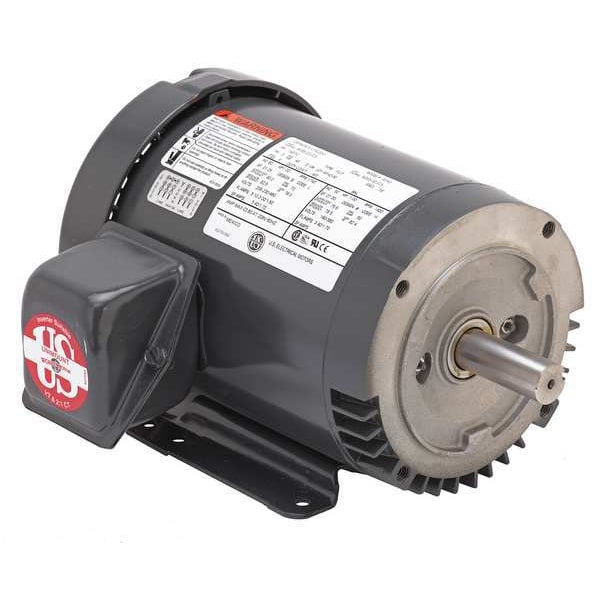

3-Phase General Purpose Motor, 1 1/2 HP, 182TC Frame, 208-230/460V AC Voltage, 1,200 Nameplate RPM

3-Phase General Purpose Motor, 1 1/2 HP, 182TC Frame, 208-230/460V AC Voltage, 1,200 Nameplate RPM

  • U.S. Motors
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 1 1/2 hp HP, Nameplate RPM 1,200, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 4.8-4.7/2.3 A, 182TC Frame, Hz 60/50 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Face/Base

    graingerSKU: 23J891, mscSKU: 77653111, zoro_no: G4605781, mongo_id: 65bbe89c22d7a989a99063f2

Web Price
$878.74 / each
Qty

Product Details

CC030A
Mexico
Continuous
Continuous
5,10
182TC
Aluminum
4.8-4.7/2.3 A
NEMA Premium Rated
1 1/2 hp
60/50 Hz
F
13 3/8 in
2 yr
104 Degrees F
General Application
Ball
3-Phase
Energy Efficient
Totally Enclosed Fan-Cooled
Cast Aluminum
Horizontal or Vertical Shaft Down
Face/Base
1.25
Keyed
CW/CCW
None
1,200
B
1
87.5 %
16 1/4 in
1
Three
1101-1200
1,101-1,200
1 1/8 in
2 3/4 in
CE, CSA, UL
208-230/460V AC
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
