Home / 3-Phase General Purpose Motor, 1 HP, 143TC Frame, 208-230/460V AC Voltage, 1,755 Nameplate RPM

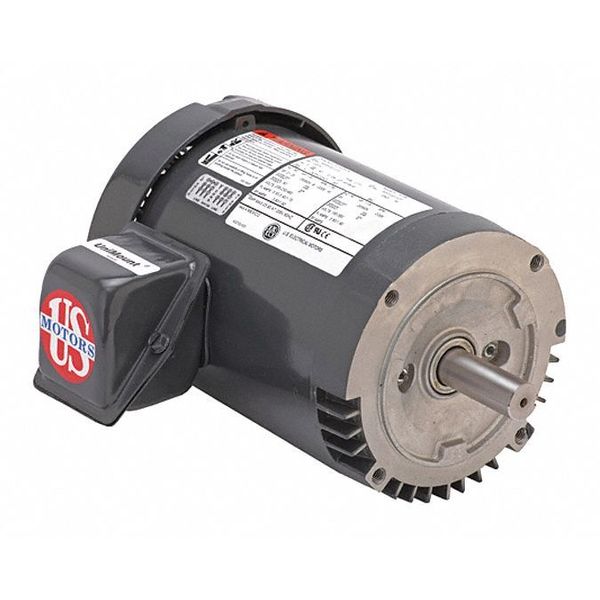

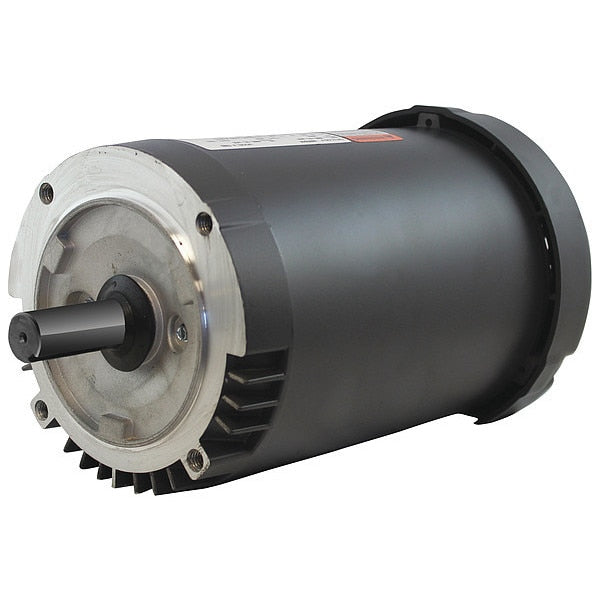

3-Phase General Purpose Motor, 1 HP, 143TC Frame, 208-230/460V AC Voltage, 1,755 Nameplate RPM
3-Phase General Purpose Motor, 1 HP, 143TC Frame, 208-230/460V AC Voltage, 1,755 Nameplate RPM

3-Phase General Purpose Motor, 1 HP, 143TC Frame, 208-230/460V AC Voltage, 1,755 Nameplate RPM

  • U.S. Motors
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 1 hp HP, Nameplate RPM 1,755, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 3.1/1.5 A, 143TC Frame, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Face, Motor Mounting Position Horizontal, Inverter Rated Yes, Motor Shaft Design Keyed

    graingerSKU: 52AZ43, mscSKU: 77653335, zoro_no: G6296967, mongo_id: 65bbe7133aaddbd5a90729f1

Web Price
$562.49 / each

Product Details

CC030A
Mexico
Continuous
Continuous
143TC
Rolled steel
3.1/1.5 A
NEMA Premium(R) Rated
1 hp
60 Hz
F
Yes
11 in
1 yr
104 Degrees F
General Application
Ball
3-Phase
NEMA Premium Efficient
Totally Enclosed Fan-Cooled
Rolled Steel
Horizontal
Face
1.25
Keyed
CW/CCW
Aeration Fan
None
1,755
1
85.5 %
13 1/8 in
1
Three
1701-1800
1,701-1,800
7/8 in
2 1/8 in
CSA (258501), UL (E47479)
208-230/460V AC
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
