Home / 3-Phase General Purpose Motor, 1 HP, 145TC Frame, 208-230/460V AC Voltage, 1,200 Nameplate RPM

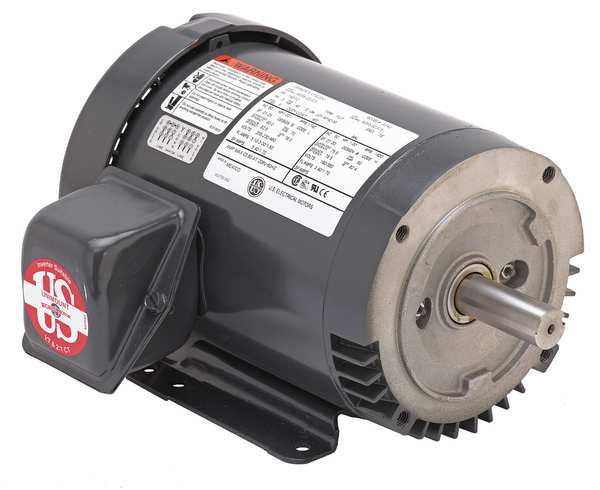

3-Phase General Purpose Motor, 1 HP, 145TC Frame, 208-230/460V AC Voltage, 1,200 Nameplate RPM

3-Phase General Purpose Motor, 1 HP, 145TC Frame, 208-230/460V AC Voltage, 1,200 Nameplate RPM

  • U.S. Motors
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 1 hp HP, Nameplate RPM 1,200, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 3.6-3.5/1.8 A, 145TC Frame, Hz 60/50 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Face/Base, Motor Mounting Position Horizontal or Vertical Shaft Down

    graingerSKU: 23J888, mscSKU: 77653657, zoro_no: G4624821, mongo_id: 65bbe5993aaddbd5a9fd4c89

Web Price
$754.99 / each
Qty

Product Details

CC030A
Mexico
Continuous
Continuous
5,10
145TC
Steel
3.6-3.5/1.8 A
NEMA Premium Rated
1 hp
60/50 Hz
F
10 7/8 in
2 yr
104 Degrees F
General Application
Ball
3-Phase
Energy Efficient
Totally Enclosed Fan-Cooled
Steel
Horizontal or Vertical Shaft Down
Face/Base
1.25
Keyed
CW/CCW
None
1,200
B
1
82.5 %
13 1/8 in
1
Three
1101-1200
1,101-1,200
7/8 in
2 1/4 in
CE, CSA, UL
208-230/460V AC
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
