Home / 3-Phase General Purpose Motor, 10 HP, 256TC Frame, 208-230/460V AC Voltage, 1,180 Nameplate RPM

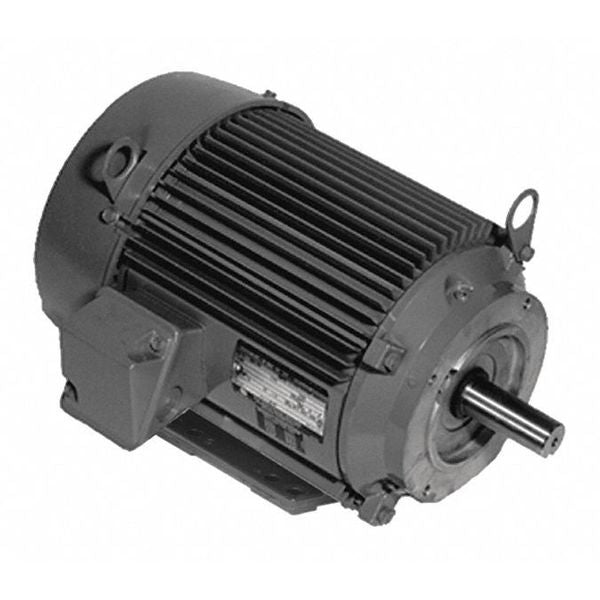

3-Phase General Purpose Motor, 10 HP, 256TC Frame, 208-230/460V AC Voltage, 1,180 Nameplate RPM

3-Phase General Purpose Motor, 10 HP, 256TC Frame, 208-230/460V AC Voltage, 1,180 Nameplate RPM

  • U.S. Motors
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 10 hp HP, Nameplate RPM 1,180, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 27.1-24.6/12.3 A, 256TC Frame, Hz 60/50 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Face, Motor Mounting Position Horizontal, Inverter Rated Yes

    graingerSKU: 29AJ14, mscSKU: , zoro_no: G2229809, mongo_id: 65bbe5bc3aaddbd5a9fe313d

Web Price
$2,589.99 / each
Qty

Product Details

No
CC030A
Mexico
Continuous
Continuous
5,10
256TC
Aluminum
27.1-24.6/12.3 A
NEMA Premium Rated
Product Contributes To Reducing Energy Consumption
10 hp
60/50 Hz
F
Yes
21 15/16 in
2 yr
104 Degrees F
General Application
Ball
3-Phase
Energy Efficient
Totally Enclosed Fan-Cooled
Cast Aluminum
Horizontal
Face
1.25
Keyed
CW/CCW
None
1,180
1
91 %
25 11/16 in
1
Three
1101-1200
1,101-1,200
1 5/8 in
3 3/4 in
CE, CSA (191252), NP, UL (E51488)
208-230/460V AC
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
230 lb
