Home / 3-Phase General Purpose Motor, 15 HP, 254TC Frame, 208-230/460V AC Voltage, 1,775 Nameplate RPM

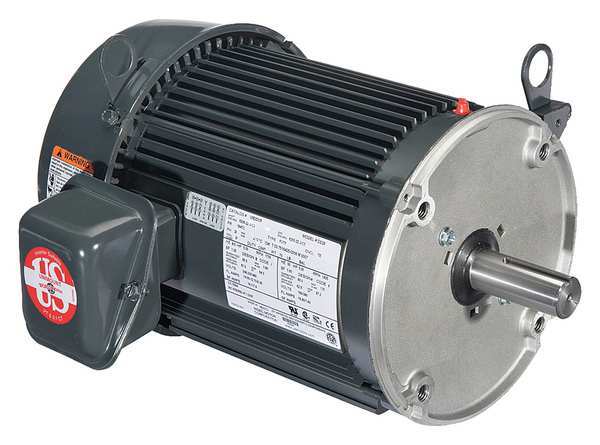

3-Phase General Purpose Motor, 15 HP, 254TC Frame, 208-230/460V AC Voltage, 1,775 Nameplate RPM

3-Phase General Purpose Motor, 15 HP, 254TC Frame, 208-230/460V AC Voltage, 1,775 Nameplate RPM

  • U.S. Motors
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 15 hp HP, Nameplate RPM 1,775, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 40.0-37.0/18.4 A, 254TC Frame, Hz 60/50 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Face, Motor Mounting Position Horizontal, Inverter Rated Yes

    graingerSKU: 29AJ17, mscSKU: , zoro_no: G2229781, mongo_id: 65bbe77c9a749db82273df8c

Web Price
$2,243.74 / each
Qty

Product Details

No
CC030A
Mexico
Continuous
Continuous
5,10
254TC
Aluminum
40.0-37.0/18.4 A
NEMA Premium Rated
Product Contributes To Reducing Energy Consumption
15 hp
60/50 Hz
F
Yes
20 3/16 in
2 yr
104 Degrees F
General Application
Ball
3-Phase
Energy Efficient
Totally Enclosed Fan-Cooled
Cast Aluminum
Horizontal
Face
1.25
Keyed
CW/CCW
None
1,775
1
92.4 %
23 15/16 in
1
Three
1701-1800
1,701-1,800
1 5/8 in
4 in
CE, CSA (191252), NP, UL (E51488)
208-230/460V AC
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
