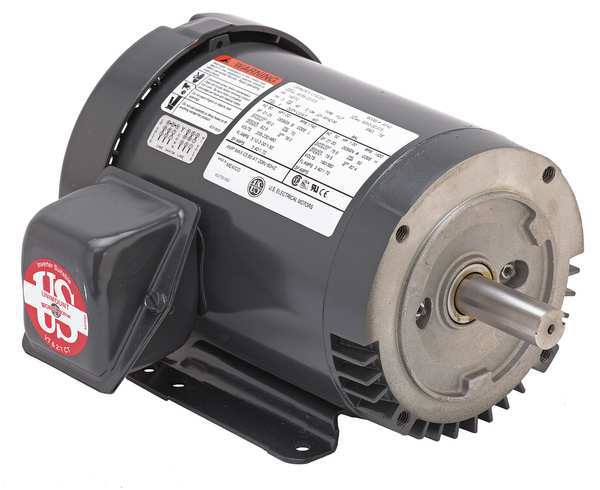

3-Phase General Purpose Motor, 15 HP, 254TC Frame, 208-230/460V AC Voltage, 3,600 Nameplate RPM

3-Phase General Purpose Motor, 15 HP, 254TC Frame, 208-230/460V AC Voltage, 3,600 Nameplate RPM

  • U.S. Motors
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 15 hp HP, Nameplate RPM 3,600, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 39.0-35.0/17.7 A, 254TC Frame, Hz 60/50 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Face/Base

    graingerSKU: 23J914, mscSKU: , zoro_no: G4569485, mongo_id: 65bbea6b22d7a989a99b275c

Web Price
$2,419.99 / each

Product Details

CC030A
Mexico
Continuous
Continuous
5,10
254TC
Aluminum
39.0-35.0/17.7 A
NEMA Premium Rated
15 hp
60/50 Hz
F
19 7/8 in
2 yr
104 Degrees F
General Application
Ball
3-Phase
Energy Efficient
Totally Enclosed Fan-Cooled
Cast Aluminum
Horizontal or Vertical Shaft Down
Face/Base
1.25
Keyed
CW/CCW
None
3,600
B
1
91 %
24 in
1
Three
3001-3600
3,001-3,600
1 5/8 in
4 in
CE, CSA, UL
208-230/460V AC
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
