Home / 3-Phase General Purpose Motor, 2 HP, 56C Frame, 208-230/460V AC Voltage, 1,750 Nameplate RPM

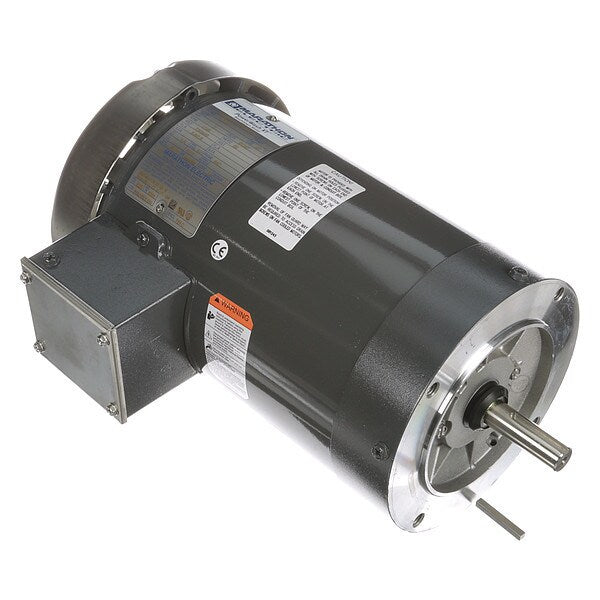

3-Phase General Purpose Motor, 2 HP, 56C Frame, 208-230/460V AC Voltage, 1,750 Nameplate RPM

3-Phase General Purpose Motor, 2 HP, 56C Frame, 208-230/460V AC Voltage, 1,750 Nameplate RPM

  • U.S. Motors
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 2 hp HP, Nameplate RPM 1,750, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 5.9-5.7/2.8 A, 56C Frame, Usable @ 208V Yes, Usable @ 200V No, Hz 60/50 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Totally Enclosed Air-Over, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base

    graingerSKU: , mscSKU: , zoro_no: G0200054, mongo_id: 65bbe87822d7a989a98f7f37

Web Price
$503.74 / each
Qty

Product Details

CC030A
Mexico
Continuous
Continuous
56C
5.9-5.7/2.8 A
5.9-5.7/2.8 A
NEMA Premium(R) Rated
2
2 hp
60/50 Hz
F
Yes
11 1/16 in
2 yr
104 Degrees F
General Application
Ball
3-Phase
Totally Enclosed Air-Over
Steel
Horizontal
Rigid Base
1.25
Keyed
CW/CCW
None
1,750
B
1
86.5 %
13 1/16 in
1
Three
1,800
1701-1800
1,701-1,800
1.25
5/8 in
2 in
CSA, UL
No
Yes
208-230/460V AC
208-230/460V AC
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
30 lb
