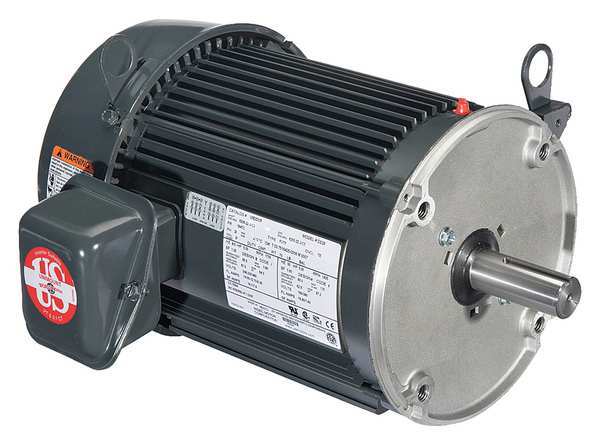

3-Phase General Purpose Motor, 25 HP, 284TC Frame, 208-230/460V AC Voltage, 3,530 Nameplate RPM

3-Phase General Purpose Motor, 25 HP, 284TC Frame, 208-230/460V AC Voltage, 3,530 Nameplate RPM

  • U.S. Motors
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 25 hp HP, Nameplate RPM 3,530, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 65.0-57.0/28.4 A, 284TC Frame, Hz 60/50 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Face, Motor Mounting Position Horizontal, Inverter Rated Yes

    graingerSKU: 29AJ20, mscSKU: , zoro_no: G2229757, mongo_id: 65bbe5bc3aaddbd5a9fe3134

Web Price
$3,432.49 / each
Qty

Product Details

No
CC030A
Mexico
Continuous
Continuous
5,10
284TC
Aluminum
65.0-57.0/28.4 A
NEMA Premium Rated
Product Contributes To Reducing Energy Consumption
25 hp
60/50 Hz
F
Yes
23 7/8 in
2 yr
104 Degrees F
General Application
Ball
3-Phase
Energy Efficient
Totally Enclosed Fan-Cooled
Cast Aluminum
Horizontal
Face
1.25
Keyed
CW/CCW
None
3,530
1
91.7 %
28 1/4 in
1
Three
3001-3600
3,001-3,600
1 7/8 in
4 3/8 in
CE, CSA (191252), NP, UL (E51488)
208-230/460V AC
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
