Home / 3-Phase General Purpose Motor, 3 HP, 182TCH Frame, 208-230/460V AC Voltage, 1,800 Nameplate RPM

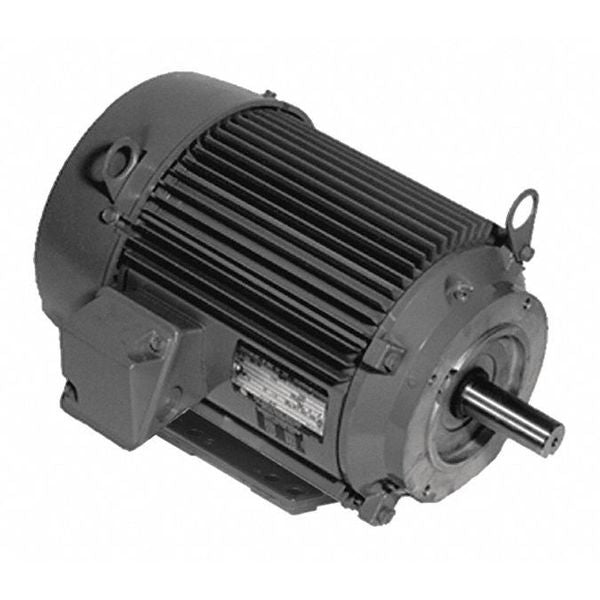

3-Phase General Purpose Motor, 3 HP, 182TCH Frame, 208-230/460V AC Voltage, 1,800 Nameplate RPM

3-Phase General Purpose Motor, 3 HP, 182TCH Frame, 208-230/460V AC Voltage, 1,800 Nameplate RPM

  • U.S. Motors
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 3 hp HP, Nameplate RPM 1,800, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 8.4-7.8/3.9 A, 182TCH Frame, Hz 60/50 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Face/Base, Motor Mounting Position Horizontal or Vertical Shaft Down

    graingerSKU: 23J899, mscSKU: , zoro_no: G4629685, mongo_id: 65bbe9c522d7a989a9979203

Web Price
$844.99 / each

Product Details

CC030A
Mexico
Continuous
Continuous
5,10
182TCH
Aluminum
8.4-7.8/3.9 A
NEMA Premium Rated
3
60/50 Hz
F
13 3/8 in
2 yr
104 Degrees F
General Application
Ball
3-Phase
Energy Efficient
Totally Enclosed Fan-Cooled
Cast Aluminum
Horizontal or Vertical Shaft Down
Face/Base
1.25
Keyed
CW/CCW
None
1,800
B
1
89.5 %
16 1/4 in
1
Three
1701-1800
1,701-1,800
1 1/8 in
2 3/4 in
CE, CSA, UL
208-230/460V AC
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
60 lb
