Home / 3-Phase General Purpose Motor, 3 HP, 182TCH Frame, 208-230/460V AC Voltage, 3,540 Nameplate RPM

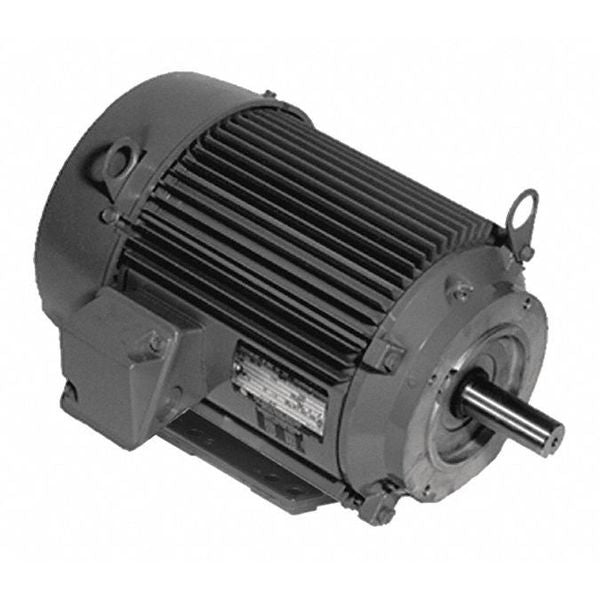

3-Phase General Purpose Motor, 3 HP, 182TCH Frame, 208-230/460V AC Voltage, 3,540 Nameplate RPM

3-Phase General Purpose Motor, 3 HP, 182TCH Frame, 208-230/460V AC Voltage, 3,540 Nameplate RPM

  • U.S. Motors
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 3 hp HP, Nameplate RPM 3,540, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 8.4-7.8/3.9 A, 182TCH Frame, Hz 60/50 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Face, Motor Mounting Position Horizontal, Inverter Rated Yes

    graingerSKU: null, mscSKU: null, zoro_no: G5543526, mongo_id: 65bbe6243aaddbd5a900e58a

Web Price
$852.49 / each

Product Details

No
CC030A
Mexico
Continuous
Continuous
5,10
182TCH
Aluminum
8.4-7.8/3.9 A
NEMA Premium Rated
Product Contributes To Reducing Energy Consumption
3 hp
60/50 Hz
F
Yes
13 1/2 in
2 yr
104 Degrees F
General Application
Ball
3-Phase
Energy Efficient
Totally Enclosed Fan-Cooled
Cast Aluminum
Horizontal
Face
1.25
Keyed
CW/CCW
None
3,540
1
86.5 %
16 3/16 in
1
Three
3001-3600
3,001-3,600
1 1/8 in
2 5/8 in
CE, CSA (191252), NP, UL (E51488)
208-230/460V AC
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
60 lb
