Home / 3-Phase General Purpose Motor, 30 HP, 286T Frame, 230/460V AC Voltage, 1,800 Nameplate RPM

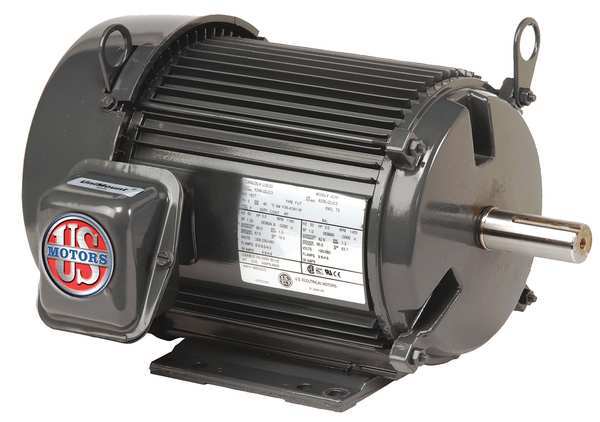

3-Phase General Purpose Motor, 30 HP, 286T Frame, 230/460V AC Voltage, 1,800 Nameplate RPM

3-Phase General Purpose Motor, 30 HP, 286T Frame, 230/460V AC Voltage, 1,800 Nameplate RPM

  • U.S. Motors
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 30 hp HP, Nameplate RPM 1,800, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 70.0/35.0 A, 286T Frame, Hz 60/50 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal or Vertical Shaft Down

    graingerSKU: 23J885, mscSKU: , zoro_no: G4591876, mongo_id: 65bbe75f3aaddbd5a908f30d

Web Price
$3,558.74 / each

Product Details

CC030A
Mexico
Continuous
Continuous
5,10
286T
Aluminum
70.0/35.0 A
NEMA Premium Rated
30 hp
60/50 Hz
F
23 11/16 in
2 yr
104 Degrees F
General Application
Ball
3-Phase
Energy Efficient
Totally Enclosed Fan-Cooled
Cast Aluminum
Horizontal or Vertical Shaft Down
Rigid Base
1.25
Keyed
CW/CCW
None
1,800
B
1
93.6 %
27 5/16 in
1
Three
1701-1800
1,701-1,800
1 7/8 in
4 5/8 in
CE, CSA, UL
230/460V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
