Home / 5 HP HP, 215TC Frame, 230/460 V Voltage

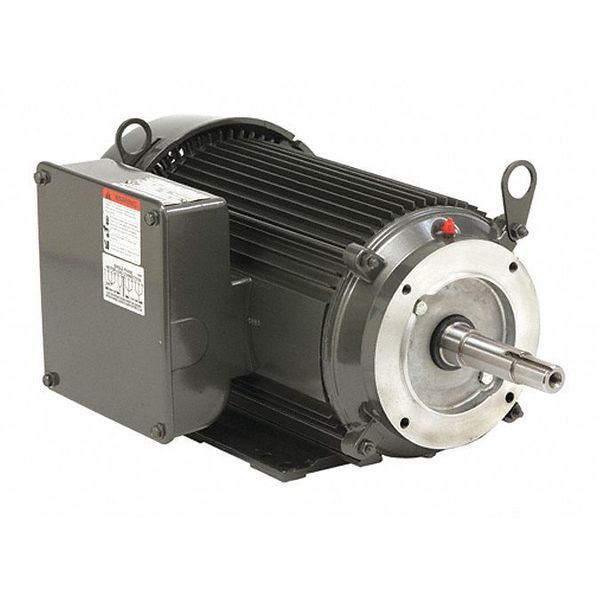

5 HP HP, 215TC Frame, 230/460 V Voltage

5 HP HP, 215TC Frame, 230/460 V Voltage

  • U.S. Motors
  • Motor,3PH,5HP,1200,230/460V,EFF 89.5, Three Phase, Motor Design 3-Phase, 5 HP, Nameplate RPM 1,175 rpm, No. of Speeds 1, Voltage 230/460V, Full Load Amps 15.9/7.9 A, 215 Frame, Torque 445 ft-lb, Max. Speed 1,175 RPM, 60 Hz Hz, Max. Operating Frequency 60 Hz, Motor Service Factor 1, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed, Motor Mounting Type Horizontal Footed
Web Price
$2,096.24 / each
Qty

Product Details

Removable
Mexico
CONT
Continuous
Yes
215
15.9/7.9 A
5
60 Hz
F
3.73 kW
16 7/8 in
3 yr
40 Degrees C
60 Hz
1,175 RPM
Cranes and Hoists, Industrial Machinery, Machine Tools, Material Handling, Packaging Machines, Test Equipment
6206-2Z-J/C3,6208-2Z-J/C3
3-Phase
Totally Enclosed
Aluminum
Horizontal
Horizontal Footed
1
Keyed
CW/CCW
1,175 rpm
A
1
89.5 %
20 in
1
Three
1175 RPM
1 3/8 in
3 1/8 in
CSA Certified, UR
445 ft-lb
230/460V
