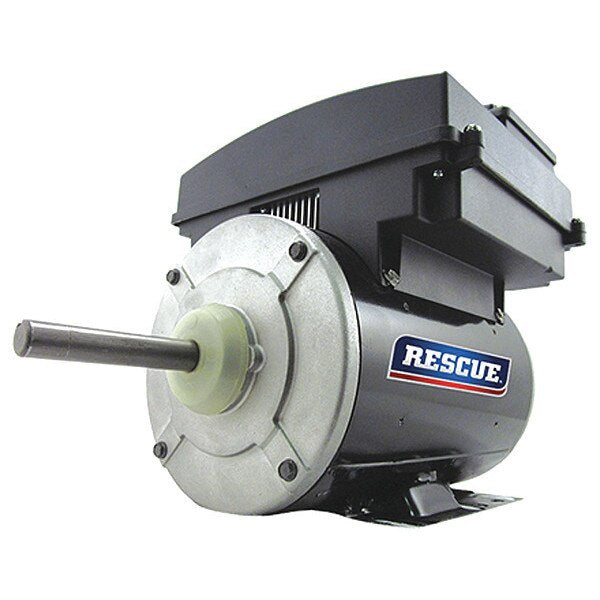

Condenser Fan Motor, 2-1/2 HP, 2.7A, 460V

SKU
Brand U.S. Motors
Categories
Description Condenser Fan Motor, Three Phase, Motor Design ECM, 2 1/4 HP, Nameplate RPM 1,200/300, No. of Speeds 1, Voltage 460V AC, 2.7 Full Load Amps, 56HZ Frame, 60/50 Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 65 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal or Vertical Shaft Up
graingerSKU: , mscSKU: , zoro_no: G0215594, mongo_id: 65bbe65b3aaddbd5a9023c7c

Web Price

$1,741.24 / each

Qty

Product Details

Application HVAC

Body Dia. 6 5/16 in

Capacitor Required No

Conduit Box Position F3

Country of Origin (subject to change) Mexico

Duty Continuous

Duty Cycle Continuous

Features Outdoor Use

Frame 56HZ

Full Load Amps 2.7

HP_ 2 1/4

Hz_ 60/50

Ins. Class B

Length Less Shaft 10 11/16 in

Max. Ambient Temp. 65 Degrees C

Motor Application HVAC/R

Motor Bearings Ball

Motor Design ECM

Motor Enclosure Design Totally Enclosed Air-Over

Motor Mounting Position Horizontal or Vertical Shaft Up

Motor Mounting Type Rigid Base

Motor Service Factor 1

Motor Shaft Design Keyed with Single Flat

Motor Shaft Rotation CW/CCW

Motor Sub Application Condenser Fan

Motor Thermal Protection Auto

Nameplate RPM 1,200/300

No. of Speeds 1

Nominal Efficiency 85 %

Overall Length 14 1/16 in

Package Quantity 1

Phase Three

RPM Range 1,101-1,200

Shaft Dia. 5/8 in

Shaft Length 3 3/8 in

Standards CSA Certified, UL Recognized

Stud Quantity 0

Usable @ 200V No

Usable @ 208V No

Voltage 460V AC

Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC
