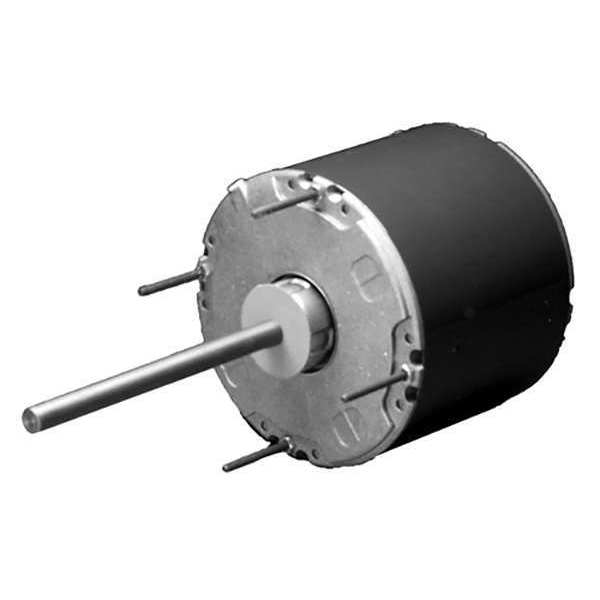

Condenser Fan Motor, Phase 1, 1/3 HP

SKU
Brand U.S. Motors
Categories
Description Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 HP, Nameplate RPM 825, No. of Speeds 1, Voltage 230V AC, 2.00 Full Load Amps, 48Y Frame, 60 Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Stud, Motor Mounting Position All Angle, Shaft Length 6 in

Web Price

$302.49 / each

Qty

Product Details

Bearing Protection Water Slingers

Body Dia. 5 5/8 in

Bolt Circle Dia. 5 1/8 in

Capacitor Required Yes

Country of Origin (subject to change) Mexico

Duty Continuous

Duty Cycle Continuous

Frame 48Y

Full Load Amps 2.00

HP_ 1/3

Hz_ 60

Ins. Class B

Lead Length 30 in

Length Less Shaft 6 1/16 in

Max. Ambient Temp. 60 Degrees C

Motor Application HVAC/R

Motor Bearings Ball

Motor Design Permanent Split Capacitor

Motor Enclosure Design Open Dripproof

Motor Mounting Position All Angle

Motor Mounting Type Stud

Motor Service Factor 1

Motor Shaft Design Double-Flat

Motor Shaft Rotation CW/CCW

Motor Sub Application Condenser Fan

Motor Thermal Protection Auto

Mounting Stud Pattern 3-5/8 in x 3-5/8 in

Nameplate RPM 825

No. of Speeds 1

Nominal Efficiency 68 %

Overall Length 12 1/16 in

Package Quantity 1

Phase Single

Ring to Ring Center 5 1/2 in

RPM Range 0-1,000

Shaft Dia. 1/2 in

Shaft Length 6 in

Standards CSA (156060), UL (E22922)

Stud Quantity 4

Stud Size 7/8 in

Usable @ 200V No

Usable @ 208V No

Voltage 230V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
