Home / GP Motor, 1-1/2 HP, 1755V RPM, 208-230/460

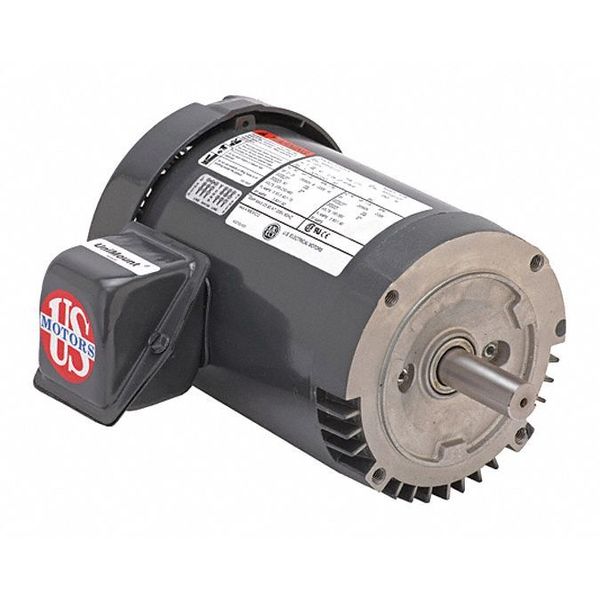

GP Motor, 1-1/2 HP, 1755V RPM, 208-230/460

GP Motor, 1-1/2 HP, 1755V RPM, 208-230/460

  • U.S. Motors
  • Motor, Three Phase, Motor Design 3-Phase, 1 1/2 hp HP, Nameplate RPM 1,755, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 4.5-4.3/2.1 A, 56C Frame, Usable @ 208V Yes, Usable @ 200V No, Hz 60/50 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Face, Motor Mounting Position Horizontal
Web Price
$803.74 / each
Qty

Product Details

Double Shielded
Mexico
Continuous
56C
4.5-4.3/2.1 A
4.9/2.5 A
1 1/2
1 1/2 hp
60/50 Hz
F
Yes
11 in
1 yr
104 Degrees F
General Application
Ball
3-Phase
Totally Enclosed Fan-Cooled
Steel
Horizontal
Face
1.25
Keyed
CW/CCW
Belt Drive Fan/Blower, Air Compressor Motors
None
1,755
B
1
86.5 %
13 in
1
Yes
Three
Permanently Lubricated Bearings
1,440
1,701-1,800
1
5/8 in
2 1/16 in
CSA Certified, UL Recognized
No
Yes
208-230/460V AC
190/380V AC
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
30 lb
