Home / GP Motor, 1/3 HP, 1725V RPM, 230, 48

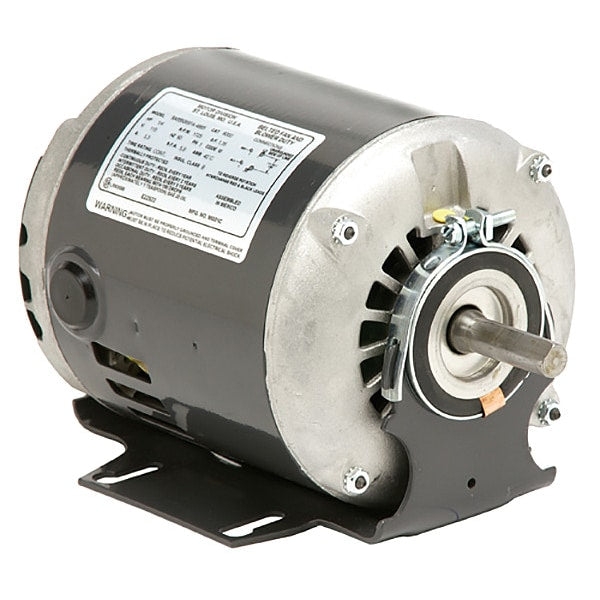

GP Motor, 1/3 HP, 1725V RPM, 230, 48

SKU
Brand U.S. Motors
Categories
Description Motor, Single Phase, Motor Design Split-Phase, 1/3 hp HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 230V AC, Full Load Amps 3 A, 48 Frame, Usable @ 208V No, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal, Motor Shaft Design Flat
graingerSKU: , mscSKU: 04091856, zoro_no: G1931269, mongo_id: 65bbe89c22d7a989a99063e1

Web Price

$198.74 / each

Qty

Product Details

Country of Origin (subject to change) Mexico

Duty Cycle Continuous

Frame 48

Full Load Amps 3 A

HP_ 1/3 hp

Hz_ 60 Hz

Ins. Class B

Length Less Shaft 7 15/16 in

Manufacturers Warranty Length 1 yr

Max. Ambient Temp. 104 Degrees F

Motor Application General Application

Motor Bearings Sleeve

Motor Design Split-Phase

Motor Enclosure Design Open Dripproof

Motor Frame Material Steel

Motor Mounting Position Horizontal

Motor Mounting Type Cradle Base

Motor Service Factor 1

Motor Shaft Design Flat

Motor Shaft Rotation CW/CCW

Motor Sub Application Commercial and Industrial Ventilation Systems

Motor Thermal Protection None

Nameplate RPM 1,725

No. of Speeds 1

Nominal Efficiency 61.5 %

Overall Length 9 3/8 in

Package Quantity 1

Part Winding Start Capable No

Phase Single

Removable Base Permanently Lubricated Bearings

RPM Range 1,701-1,800

Shaft Dia. 1/2 in

Shaft Length 1 1/2 in

Standards CSA Certified, UL Recognized

Usable @ 200V No

Usable @ 208V No

Voltage 230V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC

Weight 22 lb
