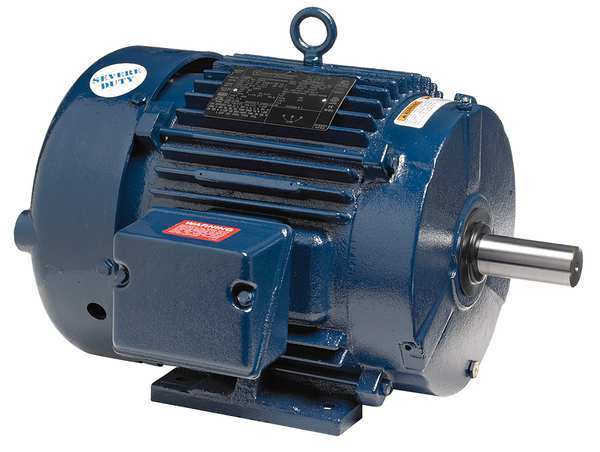

GP Motor, 2 HP, 3510V RPM, 460,143T, TEFC

SKU
Brand U.S. Motors
Categories
Description Motor, Three Phase, Motor Design 3-Phase, 2 hp HP, Nameplate RPM 3,510, No. of Speeds 1, Voltage 460V AC, Full Load Amps 2.5 A, 143T Frame, Usable @ 208V No, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Inverter Rated Yes

Web Price

$734.99 / each

Qty

Product Details

Country of Origin (subject to change) Mexico

Duty Cycle Continuous

Frame 143T

Full Load Amps 2.5 A

Full Load Amps @ 50Hz Not Applicable

HP @ 50Hz Not Applicable

HP_ 2 hp

Hz_ 60 Hz

Includes C&D Flange, Drip Cover Kit, Shaft Grounding Ring

Ins. Class F

Inverter Rated Yes

Length Less Shaft 11 11/16 in

Manufacturers Warranty Length 5 yr

Max. Ambient Temp. 104 Degrees F

Motor Application General Application

Motor Bearings 17BC02J3, 25BC02J3

Motor Design 3-Phase

Motor Enclosure Design Totally Enclosed Fan-Cooled

Motor Frame Material Cast Iron

Motor Mounting Position Horizontal

Motor Mounting Type Rigid Base

Motor Service Factor 1.15

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Sub Application Agricultural Fan

Motor Thermal Protection None

Nameplate RPM 3,510

NEMA Design B

No. of Speeds 1

Nominal Efficiency 85.5 %

Overall Length 13 11/16 in

Package Quantity 1

Part Winding Start Capable No

Phase Three

Removable Base Regreasable Bearings

RPM @ 50Hz Not Applicable

RPM Range 3,001-3,600

Shaft Dia. 7/8 in

Shaft Length 2 in

Standards CSA Certified, UL Recognized

Usable @ 200V No

Usable @ 208V No

Voltage 460V AC

Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC

Weight 70 lb
