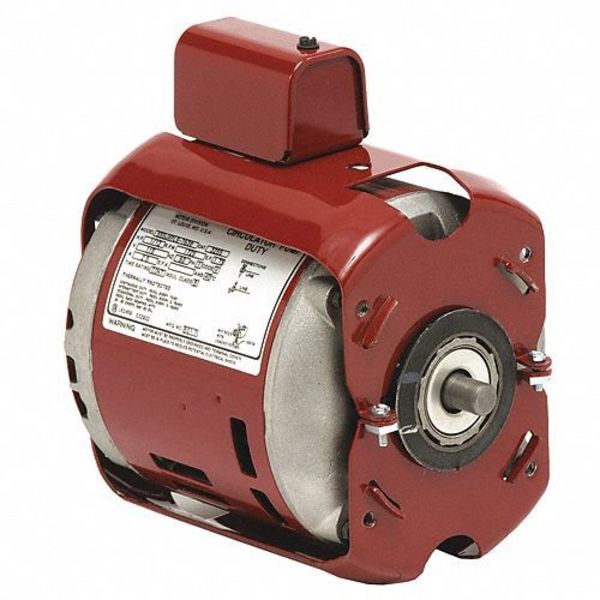

Motor, 0.083 HP, 48XY Frame, Single Phase

SKU
Brand U.S. Motors
Categories
Description Motor, Body Dia. 5.6 in, Bolt Circle Dia. 4 1/2 in, Conduit Box Location Exterior, Frame 48XY, Hz 60, Full Load Amps 2.5, Height 7 3/4 in, HP 0.083 hp, Ins. Class B, Inverter Rated No, Length Less Shaft 5 15/16 in, Max. Ambient Temp. 122 Degrees F, Max. SF Amps 3.1 A, Motor Application HVAC/R, Motor Bearings Sleeve, Motor Design Split-Phase, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Rolled Steel

Web Price

$229.99 / each

Qty

Product Details

Body Dia. 5.6 in

Bolt Circle Dia. 4 1/2 in

Conduit Box Location Exterior

Country of Origin (subject to change) Mexico

Frame 48XY

Full Load Amps 2.5

Height 7 3/4 in

HP_ 0.083 hp

Hz_ 60

Ins. Class B

Inverter Rated No

Length Less Shaft 5 15/16 in

Max. Ambient Temp. 122 Degrees F

Max. SF Amps 3.1 A

Motor Application HVAC/R

Motor Bearings Sleeve

Motor Design Split-Phase

Motor Enclosure Design Open Dripproof

Motor Frame Material Rolled Steel

Motor Mounting Position Horizontal

Motor Mounting Type Ring

Motor Service Factor 1.8

Motor Shaft Design Flat

Motor Shaft Rotation CW

Motor Sub Application Designed to meet manufacturer's requirements for use on hot water circulating pumps., Hot Water Circulating PumpOpen Dripproof (ODP) NEMA Frame 48YZ

Motor Thermal Protection Auto

Nameplate RPM 1,725

No. of Speeds 1

Nominal Efficiency 40.5 %

Number of Wires 1

Overall Length 6 7/8 in

Package Quantity 1

Phase Single

Resilient Ring Dia. 5 13/16 in

RPM Range 1,701-1,800

Shaft Dia. 1/2 in

Usable @ 200V No
