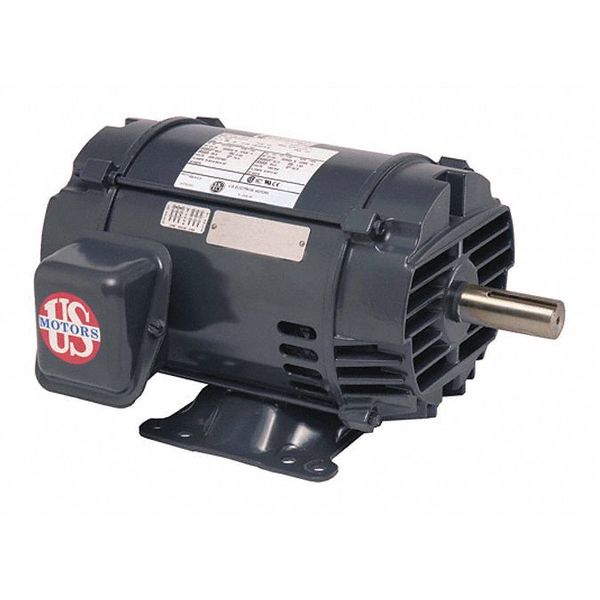

Motor, 1 1/2 HP, 143T Frame, Three Phase

SKU
Brand U.S. Motors
Categories
Description Motor, Body Dia. 6.4 in, CC Number CC030A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 143T, Hz 60/50, Full Load Amps 4.2-3.8/1.90, Full Load Amps @ 50Hz 2.3/4.5 A, Height 6 3/4 in, HP 1 1/2 hp, HP @ 50Hz 1.5, Ins. Class F, Inverter Rated No, Length Less Shaft 10 9/16 in, Max. Ambient Temp. 104 Degrees F, Max. SF Amps 4.7-4.3/2.1 A, Motor Application General Application, Motor Design 3-Phase, Motor Efficiency Group NEMA Premium Efficient

Web Price

$459.99 / each

Qty

Product Details

Body Dia. 6.4 in

CC Number CC030A

Conduit Box Location Exterior

Conduit Box Position F1

Country of Origin (subject to change) Mexico

Duty Cycle Continuous

Frame 143T

Full Load Amps 4.2-3.8/1.90

Full Load Amps @ 50Hz 2.3/4.5 A

Height 6 3/4 in

HP @ 50Hz 1.5

HP_ 1 1/2 hp

Hz_ 60/50

Ins. Class F

Inverter Rated No

Length Less Shaft 10 9/16 in

Max. Ambient Temp. 104 Degrees F

Max. SF Amps 4.7-4.3/2.1 A

Motor Application General Application

Motor Design 3-Phase

Motor Enclosure Design Open Dripproof

Motor Frame Material Steel

Motor Mounting Position Horizontal

Motor Mounting Type Rigid Base

Motor Service Factor 1.2

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Sub Application For pumps, fans, compressors, material handling, and other general purpose applications where contaminants are minimal., General Purpose

Motor Thermal Protection None

Nameplate RPM 3,525/3,505/2,900

No. of Speeds 1

Nominal Efficiency 85.5 %

Overall Length 12 13/16 in

Package Quantity 1

Phase Three

RPM @ 50Hz 2,900

RPM Range 3,001-3,600

Service Factor @ 50Hz 1.2

Shaft Dia. 7/8 in

Standards CE, CSA
