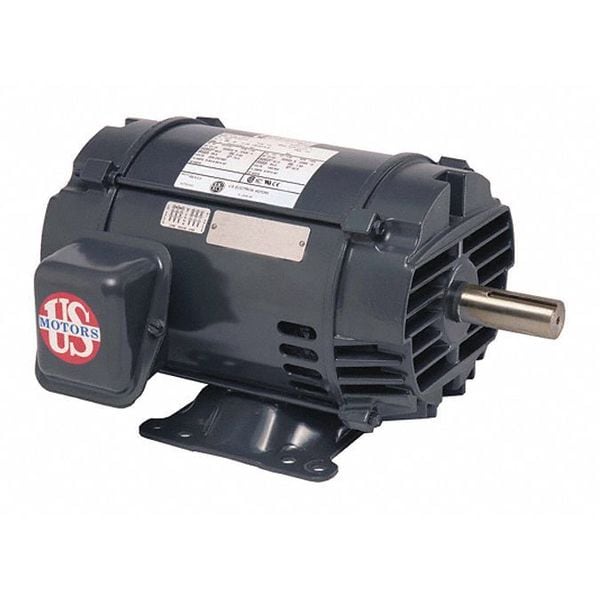

Name: Motor, 1 HP, 145T Frame, Three Phase
Brand: U.S. Motors
SKU: G1932370
Price: 616.24 USD
Availability: InStock

Home / Motor, 1 HP, 145T Frame, Three Phase

Motor, 1 HP, 145T Frame, Three Phase

SKU
Brand U.S. Motors
Categories
Description Motor, Body Dia. 6.4 in, CC Number CC030A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 145T, Hz 60/50, Full Load Amps 4.0/2.0, Full Load Amps @ 50Hz 2.2/4.4 A, Height 6 3/4 in, HP 1 hp, HP @ 50Hz 1, Ins. Class F, Inverter Rated No, Length Less Shaft 11 13/16 in, Max. Ambient Temp. 104 Degrees F, Max. SF Amps 4.3/2.1 A, Motor Application General Application, Motor Design 3-Phase, Motor Efficiency Group NEMA Premium Efficient
graingerSKU: , mscSKU: , zoro_no: G1932370, mongo_id: 65bbe6a03aaddbd5a90406d5

Web Price

$616.24 / each

Qty

Product Details

Body Dia. 6.4 in

CC Number CC030A

Conduit Box Location Exterior

Conduit Box Position F1

Country of Origin (subject to change) Mexico

Duty Cycle Continuous

Frame 145T

Full Load Amps 4.0/2.0

Full Load Amps @ 50Hz 2.2/4.4 A

Height 6 3/4 in

HP @ 50Hz 1

HP_ 1 hp

Hz_ 60/50

Ins. Class F

Inverter Rated No

Length Less Shaft 11 13/16 in

Max. Ambient Temp. 104 Degrees F

Max. SF Amps 4.3/2.1 A

Motor Application General Application

Motor Design 3-Phase

Motor Enclosure Design Open Dripproof

Motor Frame Material Steel

Motor Mounting Position Horizontal

Motor Mounting Type Rigid Base

Motor Service Factor 1.2

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Sub Application For pumps, fans, compressors, material handling, and other general purpose applications where contaminants are minimal., General Purpose

Motor Thermal Protection None

Nameplate RPM 1,165/1,155/950

No. of Speeds 1

Nominal Efficiency 82.5 %

Overall Length 14 1/16 in

Package Quantity 1

Phase Three

RPM @ 50Hz 950

RPM Range 1,101-1,200

Service Factor @ 50Hz 1.2

Shaft Dia. 7/8 in

Standards CE, CSA
