Home / Motor, 1 HP, 56J Frame, Single Phase

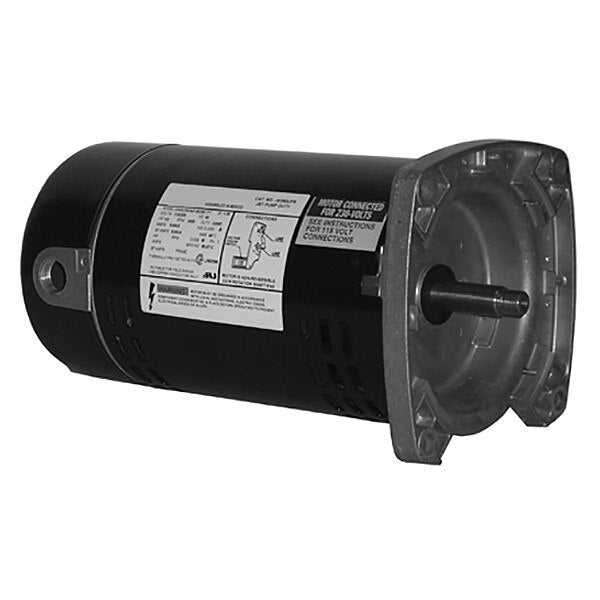

Motor, 1 HP, 56J Frame, Single Phase

SKU
Brand U.S. Motors
Categories
Description Water System Pump Motors, Body Dia. 5.6 in, Bolt Circle Dia. 5 7/8 in, Duty Cycle Continuous, Frame 56J, Hz 60, Full Load Amps 13.4/6.7, HP 1 hp, Ins. Class B, Inverter Rated No, Length Less Shaft 11 1/2 in, Max. Ambient Temp. 104 Degrees F, Max. SF Amps 16.2/8.1 A, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
graingerSKU: , mscSKU: , zoro_no: G1943412, mongo_id: 65bbe7053aaddbd5a906b6ce

Web Price

$373.74 / each

Qty

Product Details

Body Dia. 5.6 in

Bolt Circle Dia. 5 7/8 in

Country of Origin (subject to change) Mexico

Duty Cycle Continuous

Frame 56J

Full Load Amps 13.4/6.7

HP_ 1 hp

Hz_ 60

Ins. Class B

Inverter Rated No

Length Less Shaft 11 1/2 in

Max. Ambient Temp. 104 Degrees F

Max. SF Amps 16.2/8.1 A

Motor Application Pump

Motor Bearings Ball

Motor Design Capacitor-Start

Motor Enclosure Design Open Dripproof

Motor Frame Material Steel

Motor Mounting Position Horizontal

Motor Mounting Type Face/Base

Motor Service Factor 1.4

Motor Shaft Design Threaded

Motor Shaft Rotation CCW

Motor Sub Application For jet pumps, booster pumps, centrifugal pumps, lawn sprinkler pumps., Special ApplicationSingle Phase Open Dripproof (ODP)Jet Pump C Face

Motor Thermal Protection Auto

Nameplate RPM 3,450

NEMA Design 56J

No. of Speeds 1

Nominal Efficiency 78.2 %

Overall Length 14 in

Package Quantity 1

Phase Single

RPM Range 3,001-3,600

Shaft Dia. 5/8 in

Shaft Length 1 7/8 in

Shaft Material Stainless Steel
