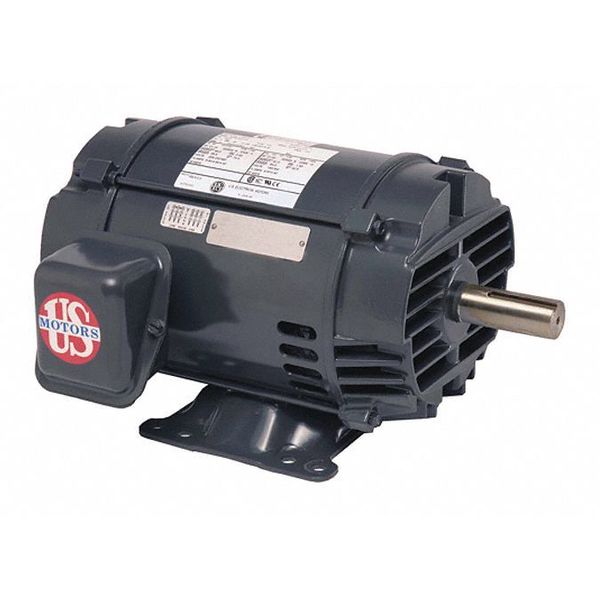

Motor, 1/2 HP, 56H Frame, Three Phase

SKU
Brand U.S. Motors
Categories
Description Motor, Body Dia. 6.5 in, Conduit Box Location Exterior, Frame 56H, Hz 60/50, Full Load Amps 2.00-1.90/1.00, Full Load Amps @ 50Hz 2.0-1.9/1.0 A, Height 6 3/4 in, HP 1/2 hp, HP @ 50Hz 1/2, Ins. Class F, Inverter Rated No, Length Less Shaft 9 1/2 in, Max. Ambient Temp. 104 Degrees F, Max. SF Amps 2.2/1.1 A, Motor Application General Application, Motor Design 3-Phase, Motor Efficiency Group NEMA Premium Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel

Web Price

$363.74 / each

Qty

Product Details

Body Dia. 6.5 in

Conduit Box Location Exterior

Country of Origin (subject to change) Mexico

Frame 56H

Full Load Amps 2.00-1.90/1.00

Full Load Amps @ 50Hz 2.0-1.9/1.0 A

Height 6 3/4 in

HP @ 50Hz 1/2

HP_ 1/2 hp

Hz_ 60/50

Ins. Class F

Inverter Rated No

Length Less Shaft 9 1/2 in

Max. Ambient Temp. 104 Degrees F

Max. SF Amps 2.2/1.1 A

Motor Application General Application

Motor Design 3-Phase

Motor Enclosure Design Open Dripproof

Motor Frame Material Steel

Motor Mounting Position Horizontal

Motor Mounting Type Rigid Base

Motor Service Factor 1.3

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Sub Application For pumps, fans, compressors, material handling, and other general purpose applications where contaminants are minimal, General Purpose

Motor Thermal Protection None

Nameplate RPM 1,725/1,425

No. of Speeds 1

Nominal Efficiency 78.2 %

Overall Length 11 3/8 in

Package Quantity 1

Phase Three

RPM @ 50Hz 1,725/1,425

RPM Range 1,701-1,800

Service Factor @ 50Hz 1.3

Shaft Dia. 5/8 in

Usable @ 200V No
