Home / Motor, 1/2 HP, 56J Frame, Single Phase

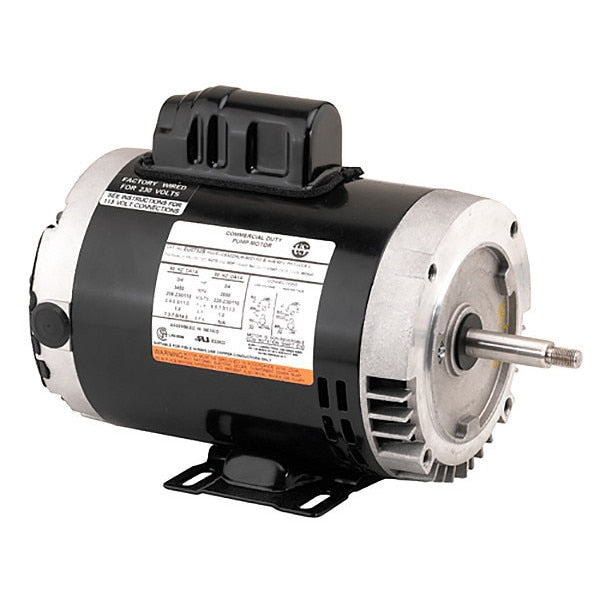

Motor, 1/2 HP, 56J Frame, Single Phase

SKU
Brand U.S. Motors
Categories
Description Motor, Body Dia. 5.9 in, Conduit Box Location Exterior, Duty Cycle Continuous, Frame 56J, Hz 60, Full Load Amps 8.9/4.4-4.5, Height 8 5/8 in, HP 1/2 hp, Ins. Class B, Inverter Rated No, Length Less Shaft 8 5/16 in, Max. Ambient Temp. 104 Degrees F, Max. SF Amps 10.0/5.1-5.0 A, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Rolled Steel

Web Price

$531.24 / each

Qty

Product Details

Body Dia. 5.9 in

Conduit Box Location Exterior

Country of Origin (subject to change) Mexico

Duty Cycle Continuous

Frame 56J

Full Load Amps 8.9/4.4-4.5

Height 8 5/8 in

HP_ 1/2 hp

Hz_ 60

Ins. Class B

Inverter Rated No

Length Less Shaft 8 5/16 in

Max. Ambient Temp. 104 Degrees F

Max. SF Amps 10.0/5.1-5.0 A

Motor Application Pump

Motor Bearings Ball

Motor Design Capacitor-Start

Motor Enclosure Design Open Dripproof

Motor Frame Material Rolled Steel

Motor Mounting Position Horizontal

Motor Mounting Type Resilient Base

Motor Service Factor 1.3

Motor Shaft Design Threaded

Motor Shaft Rotation CCW

Motor Sub Application For use on chiller, condensate, and other HVAC duty pumps, booster and irrigation pumps, dishwasher and part washer pumps,watering and de-watering pumps, and other commercial duty pumping applications, Special Application Commercial Pump

Motor Thermal Protection Auto

Nameplate RPM 1,725

No. of Speeds 1

Nominal Efficiency 64.6 %

Overall Length 10 7/8 in

Package Quantity 1

Phase Single

RPM Range 1,701-1,800

Shaft Dia. 5/8 in

Usable @ 200V No

Usable @ 208V Yes

Voltage 115/208-230V AC
