Home / Motor, 1/2HP, 1075/3SPD, 230V, 60HZ, 48Y, OAO

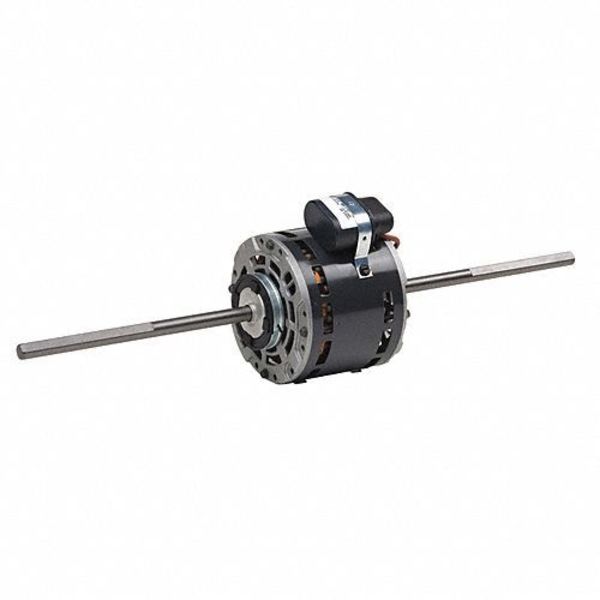

Motor, 1/2HP, 1075/3SPD, 230V, 60HZ, 48Y, OAO

SKU
Brand U.S. Motors
Categories
Description Motor,1/2HP,1075/3SPD,230V,60HZ,48Y,OAO, Motor Design Permanent Split Capacitor, Phase Single, 1/2 HP, No. of Speeds 3, Voltage 230, Motor Shaft Rotation CCW, 48 Frame, Motor Enclosure Design Open Air-Over, Motor Mounting Position All Angle, Shaft Dia. 1/2 in, Motor Thermal Protection Auto, Max. Ambient Temp. 40 Degrees C, Nameplate RPM 1,075, 60 Hz, Full Load Amps 4.5 A, Ins. Class B, Motor Service Factor 1, Overall Length 24 in

Web Price

$296.24 / each

Qty

Product Details

Application Blowers, Double Shaft Fans

Body Dia. 5 5/8 in

Country of Origin (subject to change) Mexico

Duty Open Air Over

Features Connection and Capacitor Information Furnished on Nameplate, Green Ground Lead, Mounting Holes in Shell for Mounting Capacitor, When Supplied Capacitor and Mounting Hardware are Supplied Detached

Frame 48

Full Load Amps 4.5 A

HP_ 1/2

Hz_ 60 Hz

Ins. Class B

Lead Length 20 in

Max. Ambient Temp. 40 Degrees C

Motor Design Permanent Split Capacitor

Motor Enclosure Design Open Air-Over

Motor Mounting Position All Angle

Motor Service Factor 1

Motor Shaft Rotation CCW
