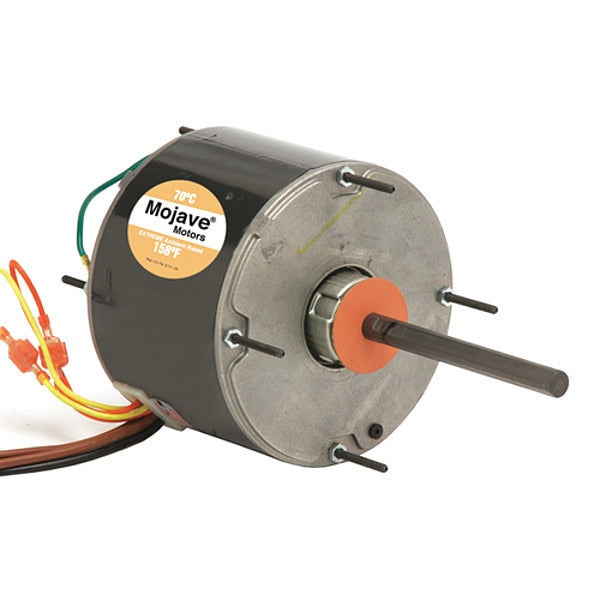

Motor, 1/2HP, 825RPM, 208-230V, 60HZ, 48Y

  • U.S. Motors
  • Motor,1/2HP,825RPM,208-230V,60HZ,48Y, Motor Design Permanent Split Capacitor, Phase Single, 1/2 HP, No. of Speeds 1, Voltage 208-230, Motor Shaft Rotation CCW, 48 Frame, Motor Enclosure Design Totally Enclosed Air-Over, Stud Motor Mounting Type, Motor Mounting Position All Angle, Shaft Dia. 1/2 in, Shaft Length 6 in, Motor Thermal Protection Auto, Max. Ambient Temp. 158 Degrees F, Nameplate RPM 825, Condenser Fan, 60 Hz, Full Load Amps 3.3 A, Ins. Class F, Motor Service Factor 1

    graingerSKU: , mscSKU: , zoro_no: G0914993, mongo_id: 65bbe73d9a749db82272866d

Web Price
$283.74 / each
Qty

Product Details

High Ambient Condenser Fans
5 5/8 in
Mexico
Continuous Duty
Automatic Reset Thermal Overload Protector, Drain Holes Both Ends, Hubless Lead End
48
3.3 A
1/2
60 Hz
F
48 in
6 3/8 in
158 Degrees F
Ball
Permanent Split Capacitor
Totally Enclosed Air-Over
All Angle
Stud
1
CCW
Condenser Fan
Auto
825
1
64.1 %
12 3/8 in
1
Single
1/2 in
6 in
CSA Certified, UL Listed
208-230
370 V
