Home / Motor, 1/3, 3/4 HP, 1075, 48Y, 115/208-230V

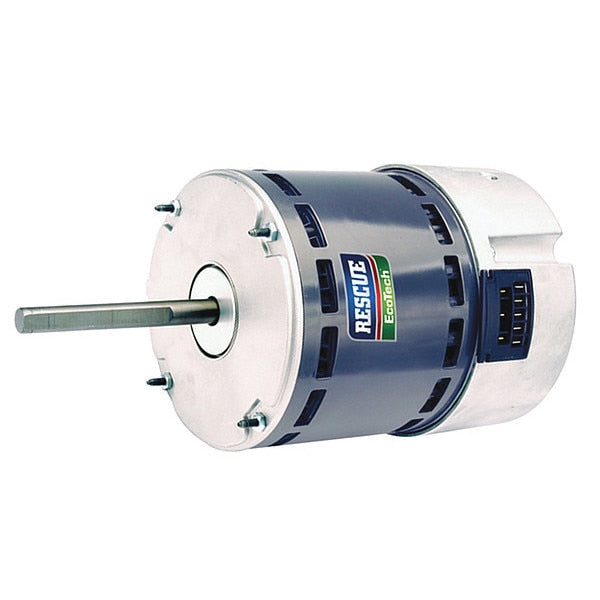

Motor, 1/3, 3/4 HP, 1075, 48Y, 115/208-230V

Motor, 1/3, 3/4 HP, 1075, 48Y, 115/208-230V

  • U.S. Motors
  • Direct Drive Blower Motor, Single Phase, Motor Design ECM, 3/4, 1/3 HP, Nameplate RPM 1,075, No. of Speeds 5, Voltage 115/208-230V AC, Full Load Amps 8.5/5.2 A, 48Y Frame, Usable @ 208V Yes, Usable @ 200V No, Motor Thermal Protection Auto, 60/50 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CW/CCW, Max. Ambient Temp. 60 Degrees C, Duty Cycle Continuous, Lead Length 36 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Band, Motor Mounting Position All Angle
Web Price
$401.24 / each
Qty

Product Details

Blowers, Fans
5 5/8 in
No
Mexico
Continuous
Continuous
48Y
8.5/5.2 A
3/4, 1/3
60/50 Hz
115VAC Plug, 5-Speed Harness, Reversing Harness, Y-Harness Adapter
B
36 in
6 3/4 in
2 yr
60 Degrees C
HVAC/R
Ball
ECM
Open Air-Over
All Angle
Band
1
Flat
CW/CCW
Direct Drive Fan/Blower
Auto
1,075
5
0.82 %
1
11 1/4 in
1
Single
1,001-1,100
1/2 in
4 1/2 in
CSA Certified, UL Recognized
No
Yes
115/208-230V AC
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
20 lb
