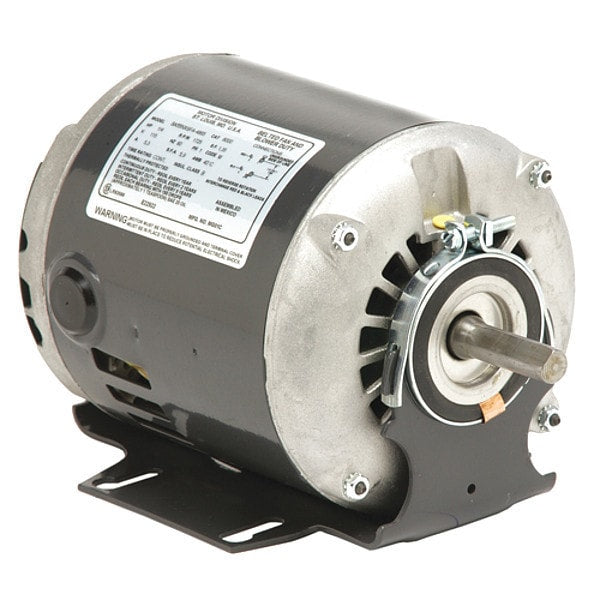

Motor, 1/3 HP, 1725/1425 rpm, 48,230V

SKU
Brand U.S. Motors
Categories
Description Belt Drive Motor, Single Phase, Motor Design Split-Phase, 1/3 HP, Nameplate RPM 1,725/1,425, No. of Speeds 2, Voltage 230V AC, 2.9 Full Load Amps, 48 Frame, Usable @ 208V No, Usable @ 200V No, 60 Hz, Motor Service Factor 1.35, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, Motor Shaft Rotation CCWLE, Motor Enclosure Design Open Dripproof, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal, Motor Frame Material Steel

Web Price

$221.24 / each

Qty

Product Details

Body Dia. 5 9/16 in

Country of Origin (subject to change) Mexico

Duty Cycle Continuous

Extended Thru-Bolts Yes

Frame 48

Full Load Amps 2.9

HP_ 1/3

Hz_ 60

Includes Shaft Bushing No

Ins. Class A

Length Less Shaft 8 7/8 in

Manufacturers Warranty Length 1 yr

Max. Ambient Temp. 104 Degrees F

Motor Application HVAC/R

Motor Bearings Ball

Motor Design Split-Phase

Motor Enclosure Design Open Dripproof

Motor Frame Material Steel

Motor Mounting Position Horizontal

Motor Mounting Type Cradle Base

Motor Service Factor 1.35

Motor Shaft Design Flat

Motor Shaft Rotation CCWLE

Motor Sub Application Belt Drive Fan/Blower

Motor Thermal Protection Auto

Mounting Stud Pattern No

Nameplate RPM 1,725/1,425

No. of Speeds 2

Nominal Efficiency 64.6 %

Overall Length 10 3/8 in

Package Quantity 1

Phase Single

Resilient Ring Dia. 2 1/2 in

Ring to Ring Center 4 3/16 in

RPM Range 1,701-1,800

Shaft Dia. 1/2 in

Shaft Length 1 1/2 in

Standards CE Certification, CSA, UL

Usable @ 200V No

Usable @ 208V No

Voltage 230V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC

Weight 22 lb
